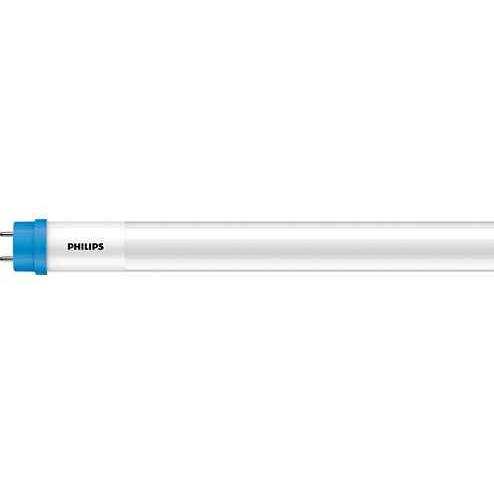

Philips Lighting T8 LED Tube 48" 10W Dimmable InstantFit Replacement

Philips Lighting T8 LED Tube 48" 10W Dimmable InstantFit Replacement

(No reviews yet) Write a Review

Model: 553214

In Stock (leaves warehouse same day if ordered before 3pm ET)

$9.18
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Philips Lighting T8 LED Tube 48" 10W 3000K Dimmable InstantFit Replacement

Professional LED tube lighting with plug-and-play compatibility

Philips Lighting delivers reliable LED tube technology with this 48" T8 replacement featuring 10W power consumption, 3000K warm white color temperature, and dimmable functionality. The InstantFit design provides plug-and-play compatibility with over 350 existing ballasts, offering versatile installation options including ballast bypass and UL Type C configurations for professional lighting applications.

Professional Features & Benefits

  • 10W Power Rating: Delivers energy-efficient operation while maintaining excellent light output for reduced operating costs.
  • 3000K Color Temperature: Provides warm white illumination ideal for comfortable work environments and commercial spaces.
  • 1500 lm Initial Output: Ensures bright, consistent lighting performance with 160 lm/W luminous efficacy for maximum efficiency.
  • Dimmable Capability: Offers flexible light control for various applications and energy management requirements.
  • 50000 Hour Lifetime: Provides long-lasting performance with 70% lumen maintenance at end of rated life for reduced maintenance costs.
  • InstantFit Compatibility: Works with over 350 ballasts and drivers for easy retrofit installation without rewiring.
  • Wide Voltage Range: Operates on 120-277V and 347V systems for versatile commercial and industrial applications.

Technical Specifications

  • Base: G13 [ Medium Bi-Pin Fluorescent]
  • Beam Angle Nom : 240 �
  • Color Code: 830 [ CCT of 3000K]
  • Color Consistency: <6
  • Color Designation: White (WH)
  • Color Rendering Index Nom : 82
  • Correlated Color Temperature Nom : 3000 K
  • Dimmable: Yes
  • Energy Saving Product: Yes
  • Eu Rohs Compliant: Yes
  • Initial Lumen Nom : 1500 lm
  • Input Frequency: 25000-105000 Hz
  • Lamp Current Max : 260 mA
  • Lamp Current Min : 100 mA
  • Llmf At End Of Nominal Lifetime Nom : 70%
  • Luminous Efficacy Rated Nom : 160.00 lm/W
  • Nominal Lifetime Nom : 50000 h
  • Power Factor Nom : 0.9
  • Power Rated Nom : 10 W
  • Starting Time Nom : 0.5 s
  • Switching Cycle: 50000X
  • T Ambient Max : 45 �C
  • T Ambient Min : -20 �C
  • T Case Maximum Nom : 50 �C
  • T Storage Max : 65 �C
  • T Storage Min : -40 �C
  • Voltage Nom : 120-277, 347 V
  • Warm Up Time To 60 Light Nom : 0.5 s

Installation & Operation

  1. Mount the tube in a suitable T8 fixture with appropriate clearance and access for connections and service.
  2. Connect power conductors following applicable guidelines and the manufacturer's instructions for chosen installation method.
  3. Configure ballast bypass, plug-and-play, or UL Type C installation according to the provided specifications and existing ballast compatibility.
  4. Test dimming functionality and verify proper performance with existing controls before placing into service.
  5. Verify instant start capability and proper light output across the full dimming range.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to LED tube lighting.

Professional Applications

  • Industrial facilities and warehouses requiring efficient overhead lighting
  • Office buildings and commercial spaces needing comfortable work environment lighting
  • Retail establishments and shopping centers with existing T8 fluorescent fixtures
  • Parking structures and covered parking areas requiring reliable illumination
  • Educational facilities and institutional buildings with fluorescent retrofit needs
  • Healthcare facilities requiring consistent, flicker-free lighting performance

Why Choose Philips Lighting Quality?

Philips Lighting provides trusted LED technology with NSF certification and DLC 5.0 qualification for energy efficiency programs. The 50000-hour rated lifetime with 70% lumen maintenance ensures long-term reliability, while the wide operating temperature range from -20�C to 45�C delivers consistent performance across diverse environmental conditions.

Manufacturer Resources

Product Specs

Luminous Efficacy Rated Nom:
160.00 lm/W
T Storage Min:
-40 °C
Input Frequency:
25000-105000 Hz
T Ambient Max:
45 °C
Color Rendering Index Nom:
82
Voltage Nom:
120-277, 347 V
Energy Saving Product:
Yes
Power Rated Nom:
10 W
T Ambient Min:
-20 °C
Power Factor Nom:
0.9
Beam Angle Nom:
240 °
Lamp Current Max:
260 mA
Dimmable:
Yes
Warm Up Time To 60 Light Nom:
0.5 s
Base:
G13 [ Medium Bi-Pin Fluorescent]
Starting Time Nom:
0.5 s
Product Type:
LED Tube
Switching Cycle:
50000X
Lamp Current Min:
100 mA
Eu Rohs Compliant:
Yes
Llmf At End Of Nominal Lifetime Nom:
70%
T Case Maximum Nom:
50 °C
T Storage Max:
65 °C
Color Consistency:
<6
Nominal Lifetime Nom:
50000 h
Department:
Electrical

Philips Lighting 553214 – Frequently Asked Questions

1) Can I leave the existing fluorescent ballast in place with the Philips InstantFit T8 LED tube?
Yes. The InstantFit 48 inch T8 is plug-and-play with over 350 existing fluorescent ballasts and drivers, so it drops into the sockets with no rewiring. It also supports ballast bypass and UL Type C driver setups if you would rather pull the ballast out or move to a remote driver. The lamp needs a ballast output in the 25000 to 105000 Hz range and draws between 100 and 260 mA.
2) Will this LED tube fit my existing T8 fluorescent sockets?
It uses a G13 medium bi-pin base, the same base as a standard 4 foot T8 fluorescent lamp, so it seats in the existing tombstones. At 48 inches it matches the nominal length of the F32T8 lamps most commercial troffers and strip fixtures were built for.
3) Is this T8 LED tube dimmable, and does it work on my existing dimming controls?
The tube is dimmable, and it runs on dimming ballasts within its rated 25000 to 105000 Hz input frequency window. Because the dimming is handled through the ballast or driver rather than the lamp, test one fixture against your existing controls before you commit the whole floor. Lamp current runs 100 to 260 mA across the range.
4) Can I use this LED tube in an unheated warehouse or a parking garage?
Ambient operating range is -20 C to 45 C, which covers unconditioned warehouses, covered parking and loading docks in most climates. Maximum case temperature is 50 C, so keep it out of tightly enclosed or heat-trapping housings. For storage before install, the lamp tolerates -40 C to 65 C.
5) Will these LED tubes work on our 347V Canadian panels?
Yes. Voltage is rated 120-277V and 347V, so the same lamp covers standard US commercial circuits and 347V systems common in Canadian industrial and retail buildings. Power factor is 0.9.
6) How much light does a 10W LED tube actually put out compared to the 32W fluorescent it replaces?
1500 lumens at 10W, which works out to 160 lm/W. A typical F32T8 fluorescent draws 32W for its output, so the wattage drop per lamp is substantial in a building running hundreds of tubes. Light spreads over a 240 degree beam angle, so it fills a troffer or strip fixture rather than throwing down a narrow cone.
7) How long before these need relamping in a 24/7 facility?
Rated at 50000 hours, and at end of that rated life the lamp still holds 70 percent of its initial lumens. Run continuously, 50000 hours is roughly 5.7 years of nonstop operation. It is also rated for 50000 switching cycles, so occupancy-sensor controlled spaces that cycle the lights frequently are within spec.
8) Is the color quality good enough for retail display or patient areas?
CRI is 82 with a color consistency spec under 6 SDCM. That is adequate for general office, healthcare corridor and back-of-house retail lighting. For merchandising where fabric and skin tone rendering is scrutinized, specifiers usually look for 90+ CRI, so this is not the lamp for a high-end display case. The tight sub-6 consistency means tube-to-tube color variation stays low across a large relamp.
9) Does this tube meet RoHS for our institutional procurement spec?
The Philips InstantFit T8 is EU RoHS compliant. Unlike the fluorescent lamp it replaces, an LED tube carries no mercury, which is why many facilities move to LED to get out of lamp disposal handling entirely.
