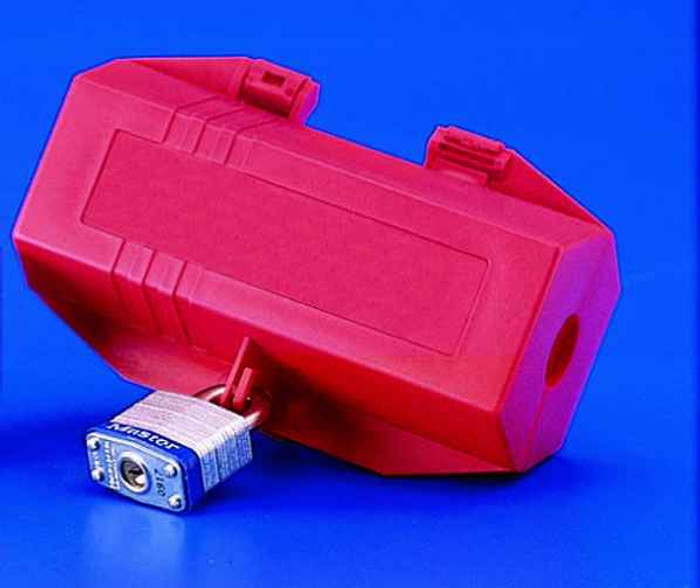

Plug Lockout, 220/250V, 3-1/4X3-1/4X7 In.
Features
- Accommodates cable ties or padlocks with up to 3/8 in. shackles
- Durable plastic body resists wear, chemicals and abuse
- Accommodate a variety of electrical plug and cord sizes to prevent accidental connection or disconnection
Manufacturer Resources
Product Specs
- Product Group:
- Safety & PPE
- Department:
- Electrical
- Product Subgroup:
- Lockout & Tagout
- Product Type:
- Plug Lockout
Ideal Industries 44-819 – Frequently Asked Questions
1) What padlock size fits the IDEAL 44-819 plug lockout?
The 44-819 plug lockout takes padlocks with shackles up to 3/8 inch, and it will also accept cable ties if you are using single-use tamper-evident ties instead of a lock. Shackle diameters larger than 3/8 inch will not pass through the lock hole.
2) Will the IDEAL 44-819 fit a 220/250V plug and cord end?
Yes. The 44-819 is rated for 220/250V plugs and the enclosure measures 3-1/4 x 3-1/4 x 7 inches, which is sized to swallow a range of plug bodies and cord ends. Measure the plug body and the cord grip across its widest point and against that 3-1/4 inch opening before committing.
3) What does a plug lockout actually do on a lockout/tagout job?
It encloses the male plug end of a cord so the plug cannot be inserted into a receptacle, and once padlocked it cannot be removed from the cord. That covers cord and plug connected equipment, where the energy isolation point is the plug rather than a breaker. The IDEAL 44-819 is the plug type, not a breaker or switch lockout, so it does nothing for hardwired equipment, you would need a breaker lockout for that.
4) Can the IDEAL 44-819 lock a plug IN place so it does not get unplugged?
Yes, it works both directions. The device is made to prevent accidental connection or disconnection, so you can use it to keep a critical load, say a sump pump or a freezer, from being unplugged, as well as to keep de-energized equipment from being plugged back in.
5) Does the IDEAL 44-819 come with a padlock?
No. The 44-819 is the lockout body only. You supply the padlock, up to a 3/8 inch shackle, or a cable tie. For a multi-person crew you will also want a hasp so several locks can go on one device.
6) Is the IDEAL 44-819 plug lockout durable enough for a shop or plant floor?
The body is plastic chosen to resist wear, chemicals and general abuse, which is what you want in a maintenance cart or a wash-down area where a metal device would corrode. It is a reusable device, not a disposable tag.
7) What is the IDEAL part number for the 220/250V plug lockout?
Order IDEAL Industries 44-819. That is the manufacturer part number for the 220/250V plug lockout measuring 3-1/4 x 3-1/4 x 7 inches, and there is a single configuration, no finish or size options to specify.
