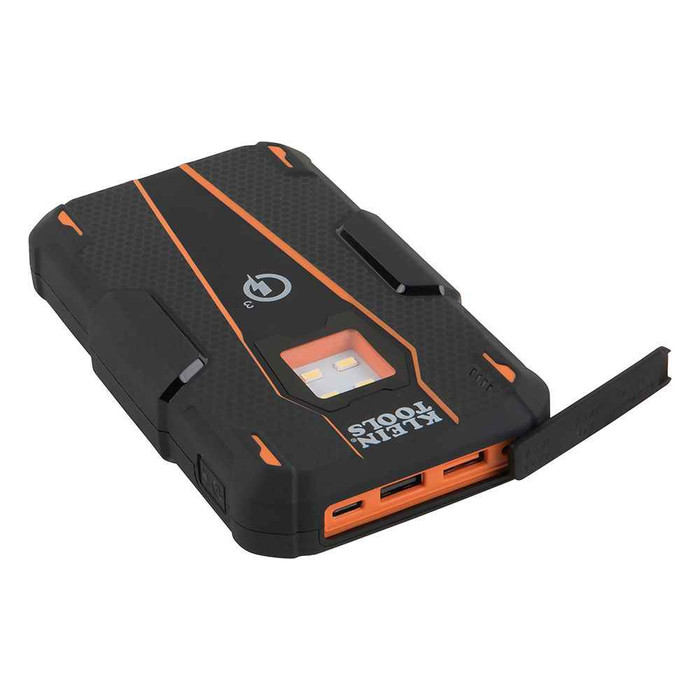

Portable Jobsite Rechargeable Battery, 13400mAh
KTB2 - spec sheet
Warnings
- Do NOT attempt to repair battery or charging cable. There are no user-serviceable parts.
- Do NOT use the power bank in excess of its output rating. Overload outputs above rating may result in risk of fire or injury to persons.
- Do NOT use power bank that is damaged or modified. Do NOT expose power bank to rain or snow. Keep away from high voltage devices.
- Do NOT subject power bank to vibration, impacts or drops.
- Do NOT attempt to insert other USB connector types into USB-A or USB-C ports.
- Use of a power supply, charger, or cable not recommended or sold by power pack manufacturer may result in risk of fire or injury to persons.

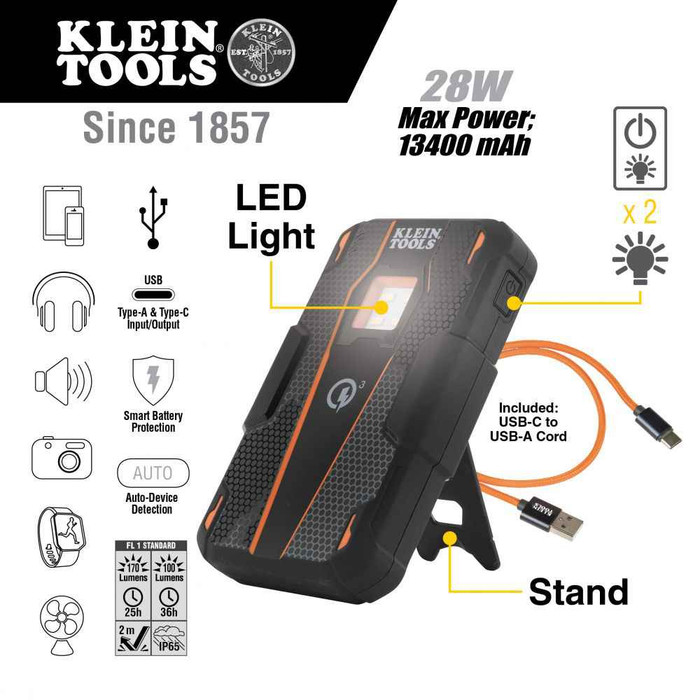

Features
- USB Type-A with high speed charging powered by Qualcomm® Quick Charge™ 3.0 Technology
- Rugged chassis with built-in stand; IP65 rating
- USB Type-C to USB Type-A cable included
- Auto-device detection
- USB Type-A with 12.5W maximum output
- USB Type-C with Input and Output capable of up to 15 watts
- 13400 mAh capacity battery; up to 28W of total power
- Smart battery protection
- LED Work Light with 170 lumens on high; 100 lumens on low
- Battery status LED indicators
KTB2 - spec sheet
Manufacturer Resources
Product Specs
- Accessories:
- 29202
- Battery Life:
- 300 Cycles
- Battery Type:
- Lithium-ion 18650
- Battery Weight:
- 6.4 oz (180 g)
- Capacity:
- 13400mAh
- Input Port:
- USB Type C
- Item Depth In:
- 5.71
- Item Height In:
- 1.1
- Item Weight Lbs:
- 0.65
- Item Width In:
- 3.49
- Number Of Batteries:
- 1
- Number Of Lithium Ion Cells:
- 4
- Operating Temperature:
- 32° to 104° F (0° to40° C)
- Overall Height:
- 5.7" (14.5 cm)
- Overall Length:
- 3.5" (8.9 cm)
- Overall Width:
- 1" (2.5 cm)
- Recharge Time:
- 4 to 10 Hours
- Shelf Life:
- Charge Every 3 Months
- Single Cell Equivalent Capacity:
- 48 Wh
- Solar Compatible:
- No
- Standards:
- CE, ETL
- Usb Output Port:
- Type A and C
- Department:
- Electrical
- Product Group:
- Tool Sets
- Product Subgroup:
- Tool Kits
- Product Type:
- Rechargeable Battery
- Product Details:
- Rechargeable Battery
- Product Material:
- Plastic, Metal
- Product Weight:
- 10.5 oz (300 g)
Klein Tools KTB2 – Frequently Asked Questions
1) Will the Klein Tools KTB2 power bank hold up on a jobsite, or is it just an office charger?
The KTB2 is built for the trades: rugged chassis with an IP65 rating, so it shrugs off dust and water jets on an open site. Body is plastic and metal, and there's a built-in stand so it props up on a bench or in a panel bay. One thing to respect - Klein says don't subject it to vibration, impacts or drops, so IP65 covers weather and dust, not being run over by a scissor lift.
2) Can the KTB2 jobsite battery charge a phone and a tablet at the same time?
Yes, the KTB2 has both a USB Type-A and a USB Type-C output and can run them together up to 28W total. The Type-A port peaks at 12.5W with Qualcomm Quick Charge 3.0, and the Type-C does up to 15 watts. Auto-device detection sorts out what each device wants. If you pull both at once you're sharing that 28W ceiling, so two devices charge slower than one.
3) Will the Klein KTB2 power bank work in a cold crawlspace or an unconditioned attic in summer?
Operating range on the KTB2 is 32 to 104 degrees F (0 to 40 C). That rules out freezing crawlspaces, unheated winter job trailers, and a hot attic in July, which regularly runs past 104. Keep it in the van or on your belt rather than leaving it staged in an unconditioned space overnight.
4) Can I run a laptop or power tool off the Klein KTB2?
No. Maximum output is 28W total across a USB-A and a USB-C port, with 15 watts the ceiling on the Type-C. That covers phones, tablets, headlamps, test instruments and a Bluetooth speaker. It will not run a power tool, and Klein explicitly warns against loading it past its output rating, since overload risks fire or injury. For anything drawing real amperage you need a proper jobsite power station, not a USB power bank.
5) How long does it take to recharge the Klein KTB2 power bank, and what do I plug into it?
Recharge runs 4 to 10 hours depending on how much wall adapter you feed it. The input is USB Type-C, and a USB Type-C to USB Type-A cable comes in the box, so you can charge it off any standard USB-A wall block or a truck adapter without buying anything else. Klein warns against using a charger or cable not recommended by the manufacturer.
6) Is a 13400mAh Klein battery allowed on a plane for a travelling service tech?
The KTB2 rates at 48 Wh single cell equivalent capacity, which is the number airlines actually go by rather than the 13400mAh figure. It's a lithium-ion pack built from four 18650 cells. Check your carrier's current rule against that 48 Wh number before you fly with it.
7) Does the Klein KTB2 have a work light, and is it bright enough to actually see inside a panel?
There's an integrated LED work light with two levels: 170 lumens on high and 100 lumens on low. That's task-light territory for reading terminal markings inside a panel or a junction box, not area lighting for a room. The built-in stand lets you aim it and keep both hands free.
8) What happens to the Klein KTB2 if it sits in a truck bin unused for months?
Charge it every 3 months. Lithium-ion packs left flat for long stretches degrade, so a spare that lives in a service truck or a stocked MRO cage needs putting on a quarterly rotation. It won't self-charge, either, since it isn't solar compatible.
9) How many times can the Klein KTB2 be recharged before it needs replacing?
Rated at 300 cycles. For a tech who tops it off every workday, that's roughly a year of daily use before capacity starts falling off noticeably. Fleet buyers standardizing across a crew should budget on that basis rather than treating it as a permanent tool.
10) How big and heavy is the Klein KTB2 battery pack for carrying in a pouch all day?
Total product weight is 10.5 oz (300 g), with the battery itself accounting for 6.4 oz (180 g). Dimensions are 5.7 x 3.5 x 1 inches. That's pocketable in a bag pocket or a tool pouch, though it's heavier than a phone, so most techs stage it in the pouch rather than a shirt pocket.
11) Is the Klein KTB2 a single unit or does it come with extra batteries?
One battery per unit, model KTB2, supplied with a USB Type-C to USB Type-A cable. There's no swappable spare pack, the cells are sealed inside and there are no user-serviceable parts, so a crew wanting a backup buys a second unit.
