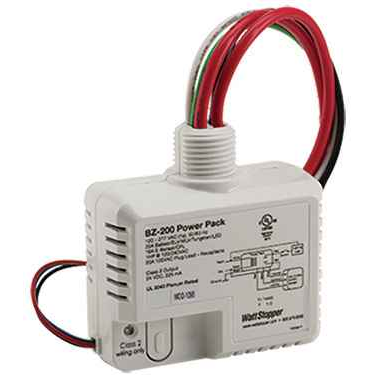

WattStopper BZ-200 Power Pack 120-277V 24VDC 225mA UL 2043 Plenum Rated Lighting Control System

WattStopper BZ-200 Power Pack 120-277V 24VDC 225mA UL 2043 Plenum Rated Lighting Control System

(No reviews yet) Write a Review

Model: BZ-200
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$154.23
$80.54
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WattStopper BZ-200 Power Pack 120-277V 24VDC 225mA UL 2043 Plenum Rated Lighting Control System

Professional Power Supply for Advanced Lighting Control Applications

The WattStopper BZ-200 Power Pack delivers reliable 24VDC power at 225mA for lighting control systems, featuring universal 120-277V input voltage compatibility and 50/60Hz operation. This UL 2043 plenum rated unit provides cost-effective installation flexibility with integrated short circuit and thermal protection for dependable performance in commercial and industrial applications.

Professional Features & Benefits

  • 120-277V Universal Input: Compatible with standard commercial voltage systems for versatile installation across diverse electrical environments.
  • 24VDC 225mA Output: Provides optimized current output based on connected sensor load requirements for efficient system operation.
  • UL 2043 Plenum Rating: Enables cost-effective installation in plenum spaces without additional enclosures or fire-rated barriers.
  • Integrated Protection Systems: Built-in short circuit and thermal protection safeguards connected components and ensures reliable long-term operation.
  • LED Status Indication: Visual indicator shows relay status and low-voltage overcurrent conditions for simplified troubleshooting and maintenance.
  • Standard Mounting Design: 1/2" threaded nipple attaches directly to standard electrical enclosures through 1/2" knockouts for streamlined installation.
  • NEMA 410 Tested: Verified compatibility with electronic ballast and driver inrush current requirements for reliable lighting system integration.

Technical Specifications

  • Country Of Origin: China
  • Product Depth Us: 3.8 in
  • Product Height Us: 2.7 in
  • Product Volume Us: 46.17 cu in
  • Product Weight Us: 0.5 lb
  • Product Width Us: 4.0 in

Professional Applications

  • Commercial Office Buildings
  • Retail and Shopping Centers
  • Educational Facilities
  • Healthcare Facilities
  • Industrial and Manufacturing Plants
  • Multi-Tenant Properties
  • Government and Municipal Buildings

Why Choose WattStopper Quality?

WattStopper delivers proven reliability through UL listed components designed for professional lighting control applications. The BZ-200 Power Pack combines efficient switching power supply technology with comprehensive protection systems and plenum rating compliance, ensuring dependable performance in demanding commercial environments while meeting stringent safety and installation standards.

Manufacturer Resources

Spec Sheet

Product Specs

Product Depth Us:
3.8 in
Product Height Us:
2.7 in
Product Volume Us:
46.17 cu in
Product Weight Us:
0.5 lb
Product Width Us:
4.0 in
Department:
Electrical
Product Subgroup:
Lighting Controls & Sensors
Product Type:
Power Pack
Product Group:
Wiring Devices

WattStopper BZ-200 – Frequently Asked Questions

1) Can the WattStopper BZ-200 power pack be installed in a plenum ceiling space?
Yes. The BZ-200 is UL 2043 plenum rated, so it can go in an air-handling ceiling space without a separate enclosure or fire-rated barrier around it. That is the usual reason this pack gets specified over a non-rated supply on a commercial ceiling retrofit.
2) Will the BZ-200 work on 277V lighting circuits, or do I need a separate 120V version?
One part covers both. The BZ-200 takes a universal 120-277V input at 50/60Hz, so the same power pack goes on a 120V tenant circuit or a 277V commercial lighting branch. No separate voltage-specific model to stock.
3) How many occupancy sensors can I run off a BZ-200 power pack?
The BZ-200 puts out 24VDC at 225mA. Add up the milliamp draw of the low-voltage sensors you intend to connect and keep the total at or under 225mA. Sensor current draw varies by model, so size the count off the sensor's own rating rather than a rule of thumb.
4) How does the BZ-200 power pack mount to a junction box?
It attaches through a 1/2 inch knockout using the integral 1/2 inch threaded nipple, so the low-voltage wiring stays inside the pack and the line-voltage leads land in the box. Standard electrical enclosures take it directly, no adapter plate. The body measures 4.0 in wide, 3.8 in deep and 2.7 in high, so check you have that clearance above the ceiling or beside the box.
5) Is the BZ-200 rated for switching LED drivers and electronic ballasts?
It is NEMA 410 tested, which covers the inrush current electronic ballasts and LED drivers pull at switch-on. That is the test a spec writer looks for when a relay is being asked to hold up against driver inrush rather than plain incandescent load.
6) How do I tell if a BZ-200 has a low-voltage short on the sensor wiring?
There is an LED on the pack that indicates relay status and also flags low-voltage overcurrent. If the sensors go dead and that indicator shows an overcurrent condition, you are looking at a short or an overloaded low-voltage run rather than a failed pack. The unit carries built-in short circuit and thermal protection, so it shuts the low-voltage side down instead of damaging itself.
7) What is the exact part number to order for the WattStopper BZ-200 power pack?
Order it as WattStopper BZ-200. That is the manufacturer part number and the only configuration of this pack, 120-277V in, 24VDC 225mA out. Country of origin is China.
8) Is the BZ-200 light enough to hang off the junction box in a ceiling grid?
At 0.5 lb it is supported by its own 1/2 inch nipple connection into the enclosure knockout, which is how these packs are normally mounted above a ceiling. No separate strut or bracket needed for the weight.
