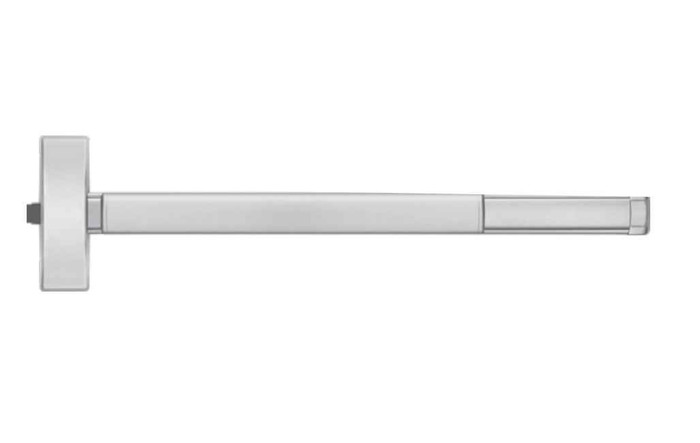

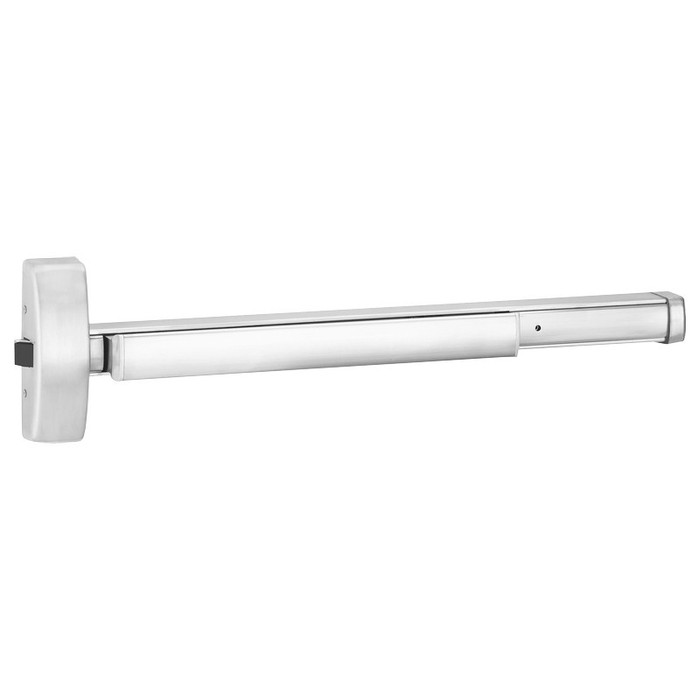

BEST Precision 2105 Series 48" Wide Stile Rim Exit Device with Key Controls Thumb Piece

BEST Precision 2105 Series 48" Wide Stile Rim Exit Device with Key Controls Thumb Piece

Professional Access Control Compatible Exit Device Solution

The BEST Precision 2105 Series rim exit device is engineered for 48" wide openings with wide stile door construction. This Grade 1 certified device features a center driven cam design compatible with many manufacturers' access control exterior trim, requiring minimum 50-degree tailpiece rotation for latch retraction. Constructed with heavy wrought brass, bronze, or stainless steel components and a stainless steel deadlocking latchbolt with 3/4" throw for reliable commercial performance.

Professional Features & Benefits

• Wide Opening Compatibility: Designed for 48" wide openings with door thickness from 1-3/4" to 2-1/4" for versatile commercial applications.
• Access Control Integration: Center driven cam design accommodates tailpiece rotation of minimum 50 degrees for seamless integration with exterior access control trim.
• Heavy-Duty Construction: Cover, touchbar, device channel, lock/hinge side filler and end cap manufactured from heavy wrought brass, bronze or stainless steel for exceptional durability.
• Grade 1 Performance: BHMA certified for ANSI 156.3 Grade 1 standards ensuring reliable operation in demanding commercial environments.
• UL Listed Safety: Certified for panic and fire exit hardware conforming to UL10C and UBC 7-2 standards for code compliance.
• Field Selectable Functions: Functions are field selectable (except double cylinder option) with standard "03" function provided for installation flexibility.
• Reversible Design: Reversible for all functions and trims with standard RHRB packaging for simplified inventory management.
• Professional Latchbolt: Stainless steel deadlocking latchbolt with 3/4" throw provides secure latching performance.

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Fire Rating: No
• Product Category: Exit Devices and Trim
• Product Group: Exit Devices and Trim
• Product Model: 2105
• Product Size: 48"
• Product Subgroup: Exit Devices - Rim
• Product Type: Exit Devices - Rim
• Series: 2100 Series
• Stile Type: Wide Stile
• Subcategory: Rim Exit Devices
• Wood Door Compatible: No

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (1-3/4" to 2-1/4"), stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose BEST Quality?

BEST Precision exit devices deliver professional-grade reliability with heavy wrought brass, bronze, and stainless steel construction rated for Grade 1 commercial performance. UL listed for panic and fire exit hardware applications with BHMA certification for ANSI 156.3 standards. Engineered for demanding commercial applications where dependable performance and code compliance are essential.
