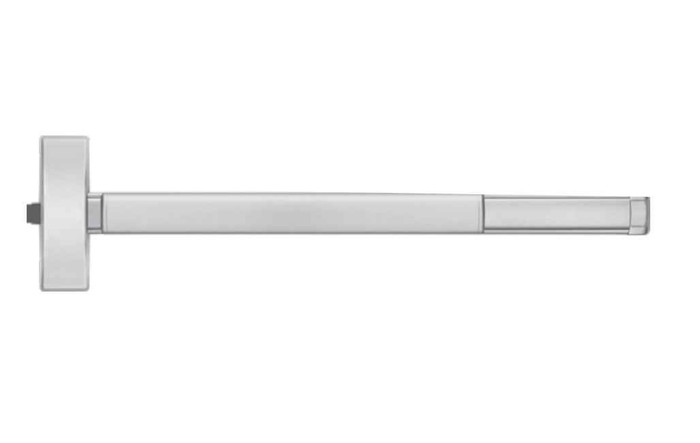

BEST Precision 2108 Series 48" Wide Stile Rim Exit Device with Key Controls Lever

BEST Precision 2108 Series 48" Wide Stile Rim Exit Device with Key Controls Lever

Professional Access Control Compatible Exit Device Solution

The BEST Precision 2108 Series rim exit device delivers professional-grade performance for 48" wide openings with wide stile compatibility. This nonhanded device features a center driven cam design for seamless integration with access control exterior trim, requiring minimum 50-degree tailpiece rotation for latch retraction. Constructed with heavy wrought brass, bronze, or stainless steel components and featuring a stainless steel deadlocking latchbolt with 3/4" throw for reliable security performance.

Professional Features & Benefits

• Wide Opening Compatibility: Designed for 48" wide openings with doors ranging from 1-3/4" to 2-1/4" thick for versatile commercial applications.
• Access Control Integration: Center driven cam design accommodates access control exterior trim tailpieces with minimum 50-degree rotation requirement for seamless system integration.
• Heavy-Duty Construction: Cover, touchbar, device channel, lock/hinge side filler, and end cap manufactured from heavy wrought brass, bronze, or stainless steel for exceptional durability.
• ANSI/BHMA Grade 1 Certification: BHMA certified for ANSI 156.3 Grade 1 performance standards ensuring commercial-grade reliability and compliance.
• UL Listed Fire Safety: UL Listed for panic and fire exit hardware, conforming to UL10C and UBC 7-2 standards for life safety applications.
• Field Selectable Functions: Functions are field selectable (except double cylinder option) with standard "03" function provided for installation flexibility.
• Reversible Design: Reversible for all functions and trims with standard RHRB packaging for simplified inventory and installation.
• Retrofit Compatibility: 2100 Series devices designed to retrofit into other manufacturers’ mounting hole locations for upgrade applications.

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Fire Rating: No
• Handle Type: Lever
• PDF:PRECISION 2000 Series Touchbar Exit Device: https://zensupply.com/content/pdf/best/PH-0292_PRECISION_2000_Sell_Sheet-03-22.pdf
• Product Category: Exit Devices and Trim
• Product Group: Exit Devices and Trim
• Product Model: 2108
• Product Size: 48"
• Product Subgroup: Exit Devices - Rim
• Product Type: Exit Devices - Rim
• Series: 2100 Series
• Stile Type: Wide Stile
• Subcategory: Rim Exit Devices
• Wood Door Compatible: No

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness (1-3/4" to 2-1/4"), stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose BEST Quality?

BEST Precision exit devices deliver professional-grade reliability with heavy wrought brass, bronze, and stainless steel construction rated for ANSI/BHMA Grade 1 performance standards. UL Listed for panic and fire exit hardware applications with conformance to UL10C and UBC 7-2 standards. Engineered for demanding commercial applications where dependable performance and code compliance are essential.
