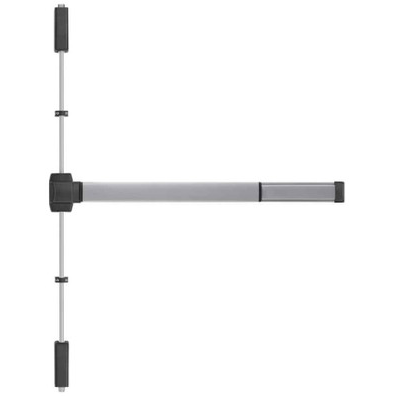

BEST Precision 5203 Series 48" Surface Vertical Rod Exit Device with Key Retracts Latchbolt

BEST Precision 5203 Series 48" Surface Vertical Rod Exit Device with Key Retracts Latchbolt

Professional Grade 1 Exit Device Solution

The BEST Precision 5203 Series Surface Vertical Rod Exit Device delivers commercial-grade security and reliability for doors up to 48" wide. This reversible exit device accommodates door thicknesses from 1-3/4" to 2-1/4" and openings up to 4'-0" wide by 10'-0" high. Featuring ANSI/BHMA Grade 1 certification and UL listing for both panic and fire exit hardware applications, this device combines heavy wrought steel construction with powder coated finish for long-lasting performance.

Professional Features & Benefits

• Wide Door Compatibility: Designed for doors up to 48" wide with thickness range of 1-3/4" to 2-1/4" for versatile commercial applications.
• Heavy-Duty Construction: Zinc dichromate plated heavy wrought steel active case and powder coated heavy wrought steel touchbar assembly provide exceptional durability.
• Grade 1 Performance: ANSI/BHMA certified for ANSI 156.3 Grade 1 standards ensuring reliable operation in high-traffic commercial environments.
• UL Listed Safety: Listed for both panic and fire exit hardware applications providing code compliance and safety assurance.
• Reversible Design: Field reversible for all functions and trims with standard RHRB packaging for installation flexibility.
• Precision Latchbolt Operation: Stainless steel deadlocking top latchbolt with 3/4" throw and key retraction capability for enhanced security control.
• Independent Bottom Bolt: Steel plated bottom bolt with 5/8" throw and adjustment range to accommodate 3/4" door undercut.
• Dogging Capability: Standard 1/4 turn hex key dogging for maintenance access (not available for fire exit hardware configurations).

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Fire Rating: No
• PDF:Precision 5000 Exit Devices and Trims: https://zensupply.com/content/pdf/best/PH-0197_PRECISION-_5000_FAQ-01-22.pdf
• PDF:Precision 5000 Series: https://zensupply.com/content/pdf/best/PH-0296_PRECISION-5000_Sell_Sheet-01-22.pdf
• Product Category: Exit Devices and Trim
• Product Group: Exit Devices and Trim
• Product Subgroup: Exit Devices - Vertical Rod
• Product Type: Exit Devices - Surface Vertical Rod
• Series: 5200 Series
• Subcategory: Surface Vertical Rod

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose BEST Quality?

BEST Precision 5200 Series exit devices deliver professional-grade reliability with heavy wrought steel construction and ANSI/BHMA Grade 1 certification. UL listed for both panic and fire exit hardware applications, these devices are engineered for demanding commercial applications where dependable performance and code compliance are essential.
