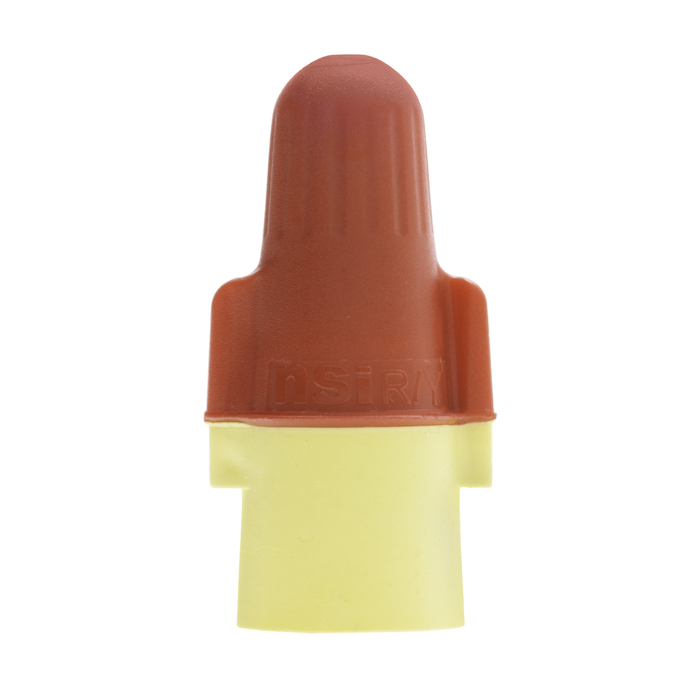

NSi Industries TERMINATOR Red/Yellow Premium Wire Connector, 18-8 AWG
NSi Industries TERMINATOR Red/Yellow Premium Wire Connectors are UL Listed pressure-type connectors rated for copper wire in the 18-8 AWG wire range, with a 600V voltage rating and 105C temperature rating. The dual red/yellow color coding lets one premium connector do the job of two standard connectors in most applications, and the zinc-plated steel spring delivers secure, low-resistance connections without pre-twisting. Packaged 500 per case, these connectors are built for high-volume commercial and industrial wiring work.
Key Features
- Wire Range: Rated for 18-8 AWG copper wire, covering a broad range of conductor combinations.
- Dual Color Coding: Red/Yellow design means one premium connector replaces two standard connectors in most applications.
- Zinc-Plated Steel Spring: Provides low contact resistance and a unique quick-bite grip for solid, secure connections without pre-twisting wires.
- Flame Retardant Shell: UL 94V-2 rated thermoplastic shell provides excellent electrical insulation.
- Ergonomic Wing Design: Rounded wings offer a comfortable grip and increased torque ability during installation.
- Voltage Rating: 600V rated for demanding electrical applications.
- Temperature Rating: Rated to 105C for reliable performance in warm environments.
Certifications & Compliance
- UL Listed as a Pressure-Type Wire Connector
- cULus
- REACH Compliant
- RoHS Compliant
Technical Specifications
- Wire Range: 18-8 AWG
- Material: Thermoplastic
- Color: Red, Yellow
- Voltage Rating: 600 V
- Temperature Rating: 105C
- Wire Type: Copper Wire Only
- Packaging: 500 ea
- Country of Origin: CN
- Warranty: 1 Year
Typical Applications
- Commercial and Industrial Electrical Installations
- Residential Wiring and Renovation Projects
- Panelboard and Junction Box Connections
- High-Volume Electrical Contractor Stock
- New Construction Wiring
Why NSi Industries?
NSi Industries builds the TERMINATOR line around a zinc-plated steel spring and a flame retardant UL 94V-2 thermoplastic shell, delivering a UL Listed, cULus certified pressure-type wire connector that installers can trust for code-compliant, secure copper wire connections. The dual red/yellow color coding and ergonomic wing design add versatility and ease of installation for professional electricians working across commercial and residential projects.
Manufacturer Resources
Product Specs
- Trade Size:
- 18-8 AWG
- Product Material:
- Thermoplastic
- Product Group:
- Premium Wire Connectors
- Product Line:
- Wire Connectors
- Product Color:
- Red, Yellow
- Temperature Rating:
- 105C
- Country of Origin:
- CN
- Warranty:
- 1 Year
- Wire Type:
- Copper Wire Only
- Voltage Rating:
- 600V
- Product Type:
- Wire Connector
- Listing:
- UL Listed, cULus
- Department:
- Electrical
