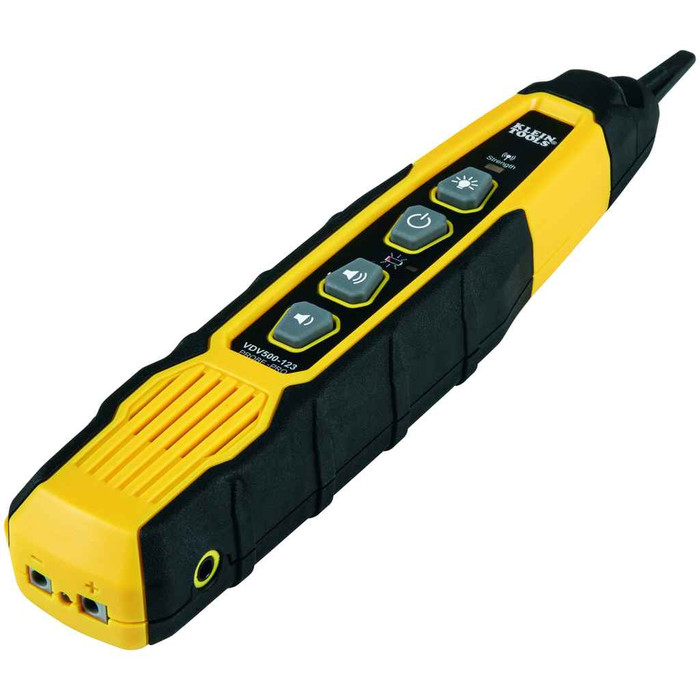

Probe-PRO Tracing Probe
VDV500-123 - spec sheet
Warnings
- Battery door must be in place and secure before you operate.
- Do not use instruments if it is damaged in any way.
- Do not open the case, other than the battery compartment.
- Do NOT use on energized circuits.
- Read all safety information before using.
- Turn off instrument and disconnect all test leads before attempting to replace batteries.
- Do not use instruments if it is wet, as it could pose a shock hazard.
- Carefully read all instructions.
Features
- 4 x AAA batteries included
- One push power button with power-on LED indicator with no need to hold button down
- Terminal block on probe to confirm the toned pair has been located
- Low battery indicator
- Worklight, Stay on Power Button
- 3.5 mm headphone jack for noisy environments (headphones not included)
- Works with Klein's Scout® Pro, Lan Scout®, Jr. and Commander™ series of testers
- Tool-less, twist-and-lock replacement tip (Cat. No. VDV999-068) available
- Auto power-off
- Work light for use in dark spaces
- Responsive, durable, replaceable non-metallic, conductive tip
- Includes a loop for a lanyard
- Traces open-ended, non-energized wiring when used with Toner-Pro Tone Generator (VDV500-063, sold separately)
VDV500-123 - spec sheet
Manufacturer Resources
Product Specs
- Adjustable Volume:
- Yes
- Amplifier Overload Indication:
- No
- Auto Power Off:
- Yes
- Batteries:
- 4 x AAA
- Battery Life:
- 25 hr
- Continuity Testing:
- No
- Depth:
- 9.0000 in
- Height:
- 1.4000 in
- Low Battery Indicator:
- Yes
- Material:
- Plastic and Metal
- Overall Height:
- 9" (22.7 cm)
- Overall Length:
- 1.4" (3.6 cm)
- Overall Width:
- 1.2" (3.0 cm)
- Power On Led Indicator:
- Yes
- Replaceable Tip:
- Yes
- Type:
- Accessory Probe
- Visual Notification:
- LED
- Weight:
- 0.3000 lbs
- Width:
- 1.2000 in
