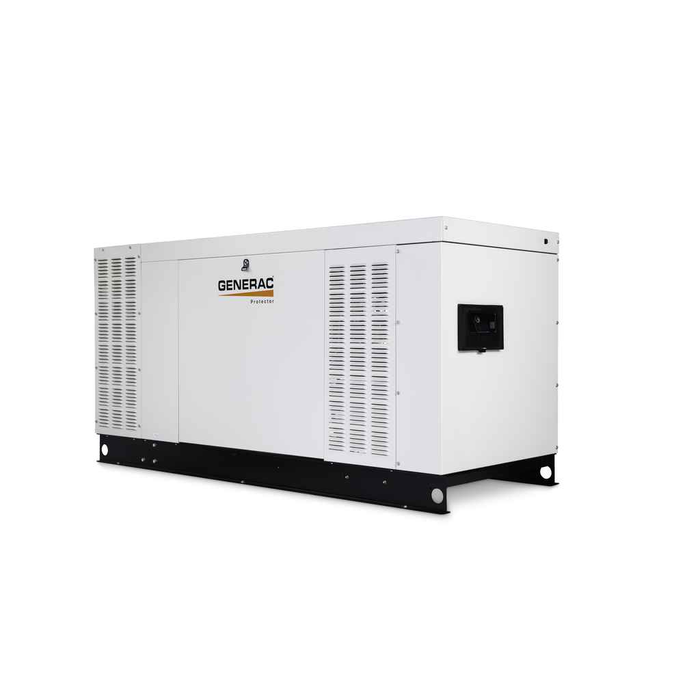

GENERAC RG06045JNAC Protector 60kW Automatic Standby Generator 120/240 3Ø - SCAQMD

No transfer switch is included with the RG06045JNAC. You order the ATS separately and size it to the service, and the generator is rated 200 A at 120/240 volts three phase, so the switch and feeders need to match that. Budget for the switch, conduit, and control wiring as a separate line on the job.

The enclosure measures 97 inches long, 38 inches wide and 49 inches high, so a pad sized to that footprint plus working clearance is the starting point. Weight is the bigger design driver: the unit comes in at 1,912 lbs, so the pad and any crane or forklift pick have to carry that. Generac also allows this Protector unit to sit as close as 18 inches from a structure, which is what makes it workable on tight lot lines.

It is a three phase unit at 120/240 volts, rated 200 A. That matters: a 120/240 three phase (high-leg delta) output is not the same as residential single phase, so confirm your service and transfer switch are three phase before specifying it. If the building is single phase 120/240, this is the wrong configuration and you want the single phase Protector model instead.

Either one. The RG06045JNAC is set up for liquid propane or natural gas, so the fuel decision is made at install based on what is at the site. The Generac 4.5L engine uses a dual-valve ultra-low pressure fuel delivery system, so verify your gas supply pressure and meter capacity can carry a 60kW load before you commit to natural gas.

The SCAQMD designation on the RG06045JNAC identifies the configuration built for South Coast Air Quality Management District requirements, which is what most Southern California permitting bodies ask for on a stationary emergency generator. If your site is inside that district, order the SCAQMD variant rather than the standard Protector, because the permit application is tied to the specific model number. Note also the Prop 65 exposure warning that applies to operating and servicing the engine.

It is UL Listed, ETL Listed, and CSA Certified, which covers the listings an inspector normally asks for on a stationary standby unit in the US and Canada. The engine and generator are built in the USA, with country of origin recorded as United States, which is the point that matters on Buy American or domestic-preference public work.

Startup is automatic with an override, so on loss of utility the unit cranks and picks up load without anyone on site. The catch is that the automatic sequence depends on an automatic transfer switch to sense the outage and signal the generator, and no switch ships with this unit. Order the ATS with it or the automatic function has nothing to trigger it.

Motor starting is where this liquid-cooled Protector earns its place. The 4.5L liquid-cooled engine and automatic voltage regulation are built for loads with heavy inrush, and Generac calls out excellent motor starting on initial startup for buildings with large motor load such as air conditioning and process equipment. Rated output is 60,000 watts with surge also listed at 60,000 watts, so size your motor starting from a load calculation rather than assuming headroom above the rating.

The RG06045JNAC carries low oil shutdown, overload protection, automatic voltage regulation, an hour meter, and a programmable exercise cycle. The Evolution controller sits on the outside of the enclosure so a tech can read the LCD and check maintenance intervals without opening it up, and Quiet-Test self-test runs a five or twelve minute exercise at reduced RPM on a weekly, bi-weekly or monthly schedule. Mobile Link remote monitoring is standard, so the hour meter and fault status can be pulled without a site visit.

True Power technology on the Protector Series holds total harmonic distortion under 5 percent, which is the threshold that matters for UPS front ends, VFDs, medical equipment, and control electronics. Automatic voltage regulation backs that up on load steps. For a data closet or lab load, under 5 percent THD is the number to put on the submittal.

The enclosure is all-aluminum with a RhinoCoat powder-coated finish, in a bisque color, and the frame is aluminum as well. Aluminum plus powder coat is the reason it holds up in humid and salt-air locations where a steel enclosure would start showing rust at the seams. Neutral bisque tends to disappear into landscaping, which helps on properties with architectural review.
