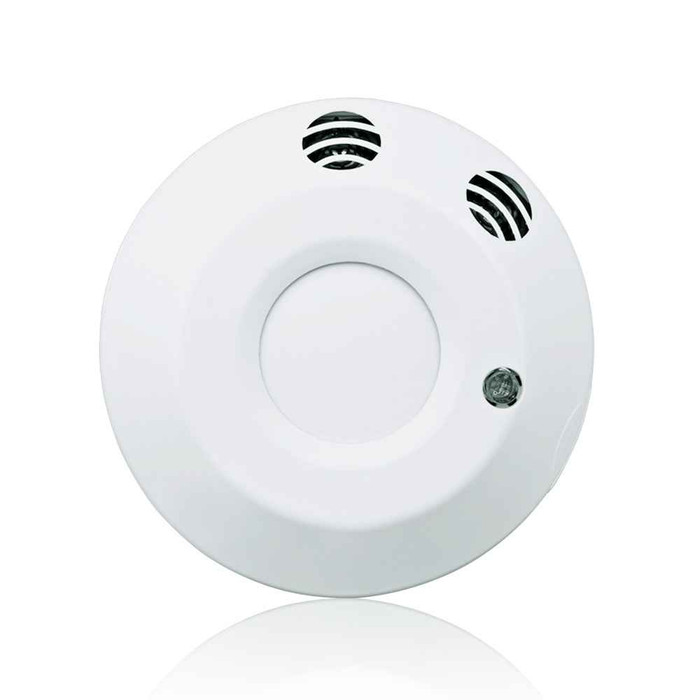

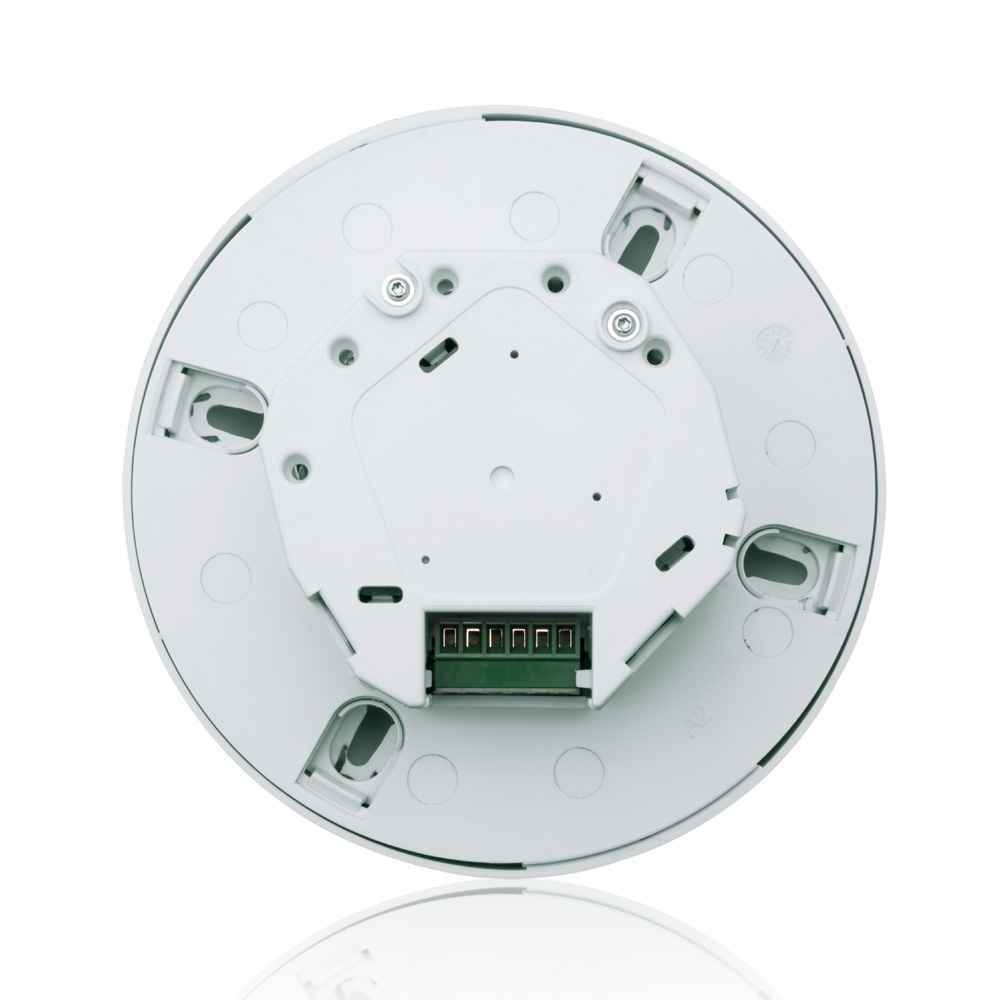

Provolt™ Occupancy Sensor lighting control, Line Voltage, 8'-12' Ceiling Mounted, Ultrasonic Sensor 500 sq ft, Daylighting, Auto-Calibration, 120-277V AC/CA 50/60HZ. UL/CE, RoHS & CEC Title 20/24 compliant. Color: White.
Features
- Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
- Configurable for Manual ON/Auto OFF or Auto ON/Auto OFF
- Yellow Visual LED indicator - Blinks during test mode; solid with emergency/BMS input
- Blue Visual LED indicator - Blinks when knob settings are changed and during photocell override
- Test Mode for simplified commissioning
- Delayed OFF Timer: The sensor will turn lights OFF if no motion is detected after a specified time
- Industry-exclusive H.I.S. (High Inrush Stability) technology designed to handle today's high inrush electronic ballast loads and offer unmatched durability and service
- Auto-Adapting: Time delay and sensitivity are continually adjusted to occupancy pattern of use
- Output short circuit protection
- Presentation Mode feature for slide or film presentations allows push buttons to turn lights OFF and keep them OFF while the room is occupied
- Utilizes sensors which emit non-audible sound waves and sense movement. Any movement within the sensor's field-of-view causes a shift in the original emitted frequency. The sensor identifies the change as movement and controls light accordingly. U/S models are immune to external ultrasonic signals from other sources such as white-boards delivering uninterrupted performance.
- Exclusive Walk-through Feature: Provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
- Time delay and saved settings are protected during power outages and will return to the last known state
- Adjustable Time Delay: 30s, 5min, 10min, 20min, 30min
- Industry-exclusive “fail-safe” circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns
- Manual Switch and Emergency Override are Class 1 or Class 2 circuits. Class 2 circuits provided for flexibility
- Green Visual LED indicator - Blinks during U/S detection and is solid during auto-calibration
- Industry-exclusive self-configuring local manual switch input: Momentary or maintained switches are supported
Manufacturer Resources
Product Specs
- Coverage Sq Ft :
- 500
- Neutral Wire Connection:
- Required
- Product Line:
- Provolt
- Sensor Type:
- Ceiling Mount
- Title 24 Compliant:
- Yes
- Product Group:
- Sensors
- Department:
- Electrical
- Product Subgroup:
- Occupancy Sensors
- Frequency:
- 50/60Hz
- Technology:
- Ultrasonic
- Product Voltage:
- 120-277 VAC
- Product Color:
- White
