Leviton O3C15-IDW Provolt™ Vac...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$261.23
$211.23

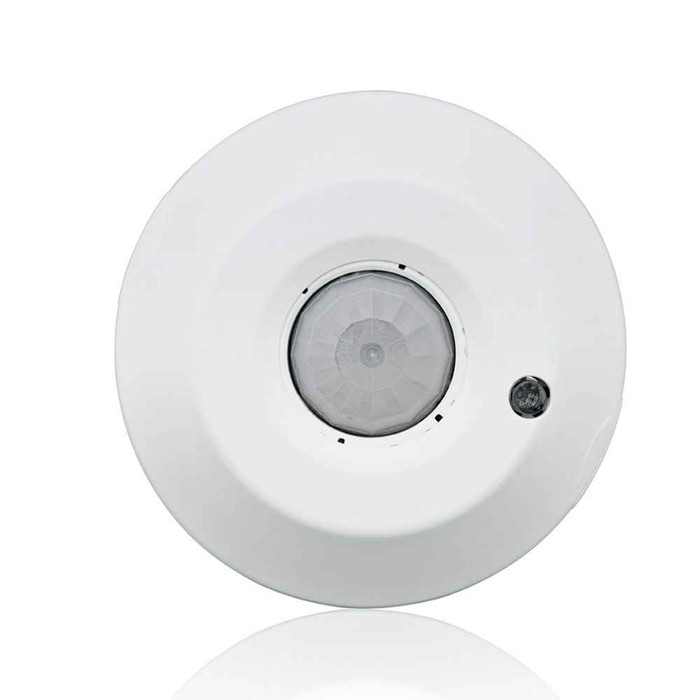

Leviton O3C15-IDW Provolt™ Vacancy Sensor lighting control, Line Voltage, 8'-12' Ceiling Mount, PIR Sensor 1500 sq ft, Daylighting, Auto-Calibration, 120-277V AC/CA 50/60HZ. UL/CE, RoHS & CEC Title 20/24 Compliant. Color: White.

(No reviews yet) Write a Review

Model: O3C15-IDW
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$261.23
$211.23
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
Provolt™ Vacancy Sensor lighting control, Line Voltage, 8'-12' Ceiling Mount, PIR Sensor 1500 sq ft, Daylighting, Auto-Calibration, 120-277V AC/CA 50/60HZ. UL/CE, RoHS & CEC Title 20/24 Compliant. Color: White.
  • Features

    • Test Mode for simplified commissioning
    • Industry-exclusive self-configuring local manual switch input: Momentary or maintained switches are supported
    • Robust and reliable mechanically held 10A latching relay provides dependability and robust performance for all load types and provides energy savings over electronically held relays
    • Exclusive Walk-through Feature: Provides increased energy savings by not leaving the lights ON for an extended period after only momentary occupancy
    • Time delay and saved settings are protected during power outages and will return to the last known state
    • False Detection Timer: (PIR) The PIR scans for movement and shuts lights off after 31 minutes preventing false triggers from HVAC systems
    • Lenses on PIR models are easily replaceable and color-coded red (mid range) for contractors and end-users to easily identify lenses from the ground
    • Configurable for Manual ON/Auto OFF
    • Industry-exclusive H.I.S. (High Inrush Stability) technology designed to handle today’s high inrush electronic ballast loads and offer unmatched durability and service
    • Auto-Adapting: Time delay and sensitivity are continually adjusted to occupancy pattern of use
    • Vacancy Sensing Time Outs:
    • Delayed OFF Timer: The sensor will turn lights OFF if no motion is detected after a specified time
    • Adjustable Time Delay: 30s, 5min, 10min, 20min, 30min
    • Output short circuit protection
    • Manual Switch and Emergency Override are Class 1 or Class 2 circuits. Class 2 circuits provided for flexibility
    • Industry-exclusive “fail-safe” circuitry: In the event of product failure, Return-to-Closed feature causes the relay to default ON which eliminates life safety concerns

Manufacturer Resources

Product Specs

Coverage Sq Ft :
1500
Neutral Wire Connection:
Required
Product Line:
Provolt
Sensor Type:
Ceiling Mount
Title 24 Compliant:
Yes
Vacancy Sensor:
Yes
Product Group:
Sensors
Department:
Electrical
Product Subgroup:
Occupancy Sensors
Frequency:
50/60Hz
Technology:
Passive Infrared
Product Voltage:
120-277 VAC
Product Color:
White
