Panduit S100X150VAM PXE, S100X150VAM MP Printer Self-Lam Label, Vinyl, White, 1.5"x1", 0.5"POH

Panduit S100X150VAM Self-Laminating Cable Marking Label, 1.5" x 1" White Vinyl

(No reviews yet) Write a Review

Model: S100X150VAM

In Stock (leaves warehouse same day if ordered before 3pm ET)

$132.59
$71.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit S100X150VAM Self-Laminating Cable Marking Label, 1.5" x 1" White Vinyl

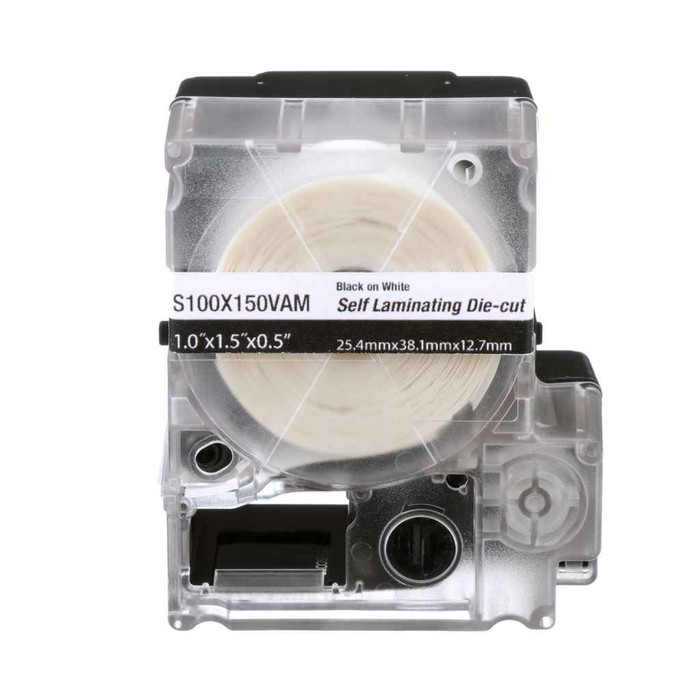

The Panduit S100X150VAM is a white vinyl self-laminating cable marking label built for professional cable and wire identification. Sized at 1.5" x 1" with a 0.5" print-on area, this label is engineered specifically for use with Panduit MP300 printer systems and fits cable diameters from 0.16" to 0.32". The durable vinyl construction is rated for operating temperatures from -40°F to 150°F (-40°C to 66°C), delivering long-lasting identification in demanding commercial and industrial environments.

Key Features

  • Optimized Label Size: 1.5" x 1" overall label dimensions with a 0.5" print-on area provide clear, legible identification while fitting standard cable diameters from 0.16" to 0.32".
  • Self-Laminating Design: A protective laminate shield covers printed text to guard against abrasion, chemicals, and environmental exposure for long-term readability.
  • Durable White Vinyl Construction: High-quality vinyl material delivers excellent print contrast and resistance to fading over time.
  • Wide Operating Temperature Range: Rated from -40°F to 150°F (-40°C to 66°C) for reliable performance across diverse installation environments.
  • MP300 Printer Compatibility: Engineered specifically for Panduit MP300 printer systems to ensure optimal print quality and adhesion.
  • High-Volume Cassette Packaging: 175 labels per cassette supports efficient, high-volume cable marking projects.

Certifications & Compliance

  • RoHS Compliant

Technical Specifications

  • Label Height In: 1.5
  • Label Width In: 1
  • Overall Width In: 1
  • Print On Area Height In: 0.5
  • Minimum Cable Diameter Mm: 4
  • Maximum Cable Diameter Mm: 8.1
  • Minimum Operating Temperature F: -40
  • Maximum Operating Temperature F: 150
  • Minimum Operating Temperature C: -40
  • Maximum Operating Temperature C: 66
  • Number Of Labels Per Cassette: 175
  • California Pro65 Cancer: N
  • Hazardous Material Flag: N
  • Mercury Content Indicator: N

Typical Applications

  • Data Center Cable Management
  • Industrial Control Panel Wiring
  • Telecommunications Infrastructure
  • Commercial Building Systems
  • Manufacturing Equipment Identification
  • Electrical Panel Organization

Why Panduit?

Panduit self-laminating cable marking labels combine RoHS compliant, durable white vinyl construction with precise MP300 printer compatibility for consistent, professional results. The wide -40°F to 150°F operating range and self-laminating protection help ensure reliable, long-lasting cable and wire identification for demanding commercial and industrial installations.

Manufacturer Resources

Product Specs

California Pro65 Cancer:
N
Compatible Wire Gauge Awg :
6-Oct
Country Of Origin:
Japan
Ean:
3.06131E+13
Gtin Carton:
5.06131E+13
Gtin Package:
3.06131E+13
Hazardous Material Flag:
N
Label Application:
Cable & Wire Marking
Label Dimensions In :
1W x 1.5H
Label Height In :
1.5
Label Height Mm :
38.1
Label Width In :
1
Label Width Mm :
25.4
Maximum Cable Diameter In :
0.32
Maximum Cable Diameter Mm :
8.1
Maximum Operating Temperature C :
66
Maximum Operating Temperature F :
150
Mercury Content Indicator:
N
Min Order Qty:
1
Minimum Cable Diameter In :
0.16
Minimum Cable Diameter Mm :
4
Minimum Operating Temperature C :
-40
Minimum Operating Temperature F :
-40
Note:
For use with MP300 printer
Number Of Labels Per Cassette:
175
Overall Width In :
1
Overall Width Mm :
25.4
Pallet Quantity:
3,640
Pallet Volume:
62.292186
Pallet Weight:
749.476
Print On Area Height In :
0.5
Print On Area Height Mm :
12.7
Product Color:
White
Product Material:
Vinyl
Product Segment:
IEI
Product Type:
Self-Laminating Label
Reach Status:
N
Rohs Compliant:
Compliant
Standard Carton Volume Ft3:
1.3691
Standard Carton Weight Pounds:
16.472
Standard Package Volume Ft3:
0.0856
Standard Package Weight Pounds:
1.0295
Std Carton Height In:
7.9
Std Carton Height Mm:
200.66
Std Carton Length In:
21.7
Std Carton Length Mm:
551.18
Std Carton Width In:
13.8
Std Carton Width Mm:
350.52
Std Ctn Qty:
80
Std Package Height In:
3.5
Std Package Height Mm:
88.9
Std Package Length In:
10.5
Std Package Length Mm:
266.7
Std Package Width In:
3.25
Std Package Width Mm:
82.55
Std Pkg Qty :
5
Std Pkg Uom:
Piece
Department:
Electrical
Product Group:
Wiring Devices

Panduit S100X150VAM – Frequently Asked Questions

1) What cable diameter range do Panduit S100X150VAM self-laminating labels fit?
The S100X150VAM wraps cable from 0.16 to 0.32 inches in diameter (4 mm to 8.1 mm). That covers typical Cat 5e/Cat 6 patch and horizontal cable and small control wiring. Anything fatter than 0.32 inches and the laminating tail will not make a full clear wrap over the printed area, so step up to a wider label size for larger power or trunk cable.
2) Will Panduit S100X150VAM labels run in my printer, or do I need the MP300?
These are MP300 cassette labels. The S100X150VAM ships as a cassette of 175 labels made for the Panduit MP300 handheld printer, so it will not load into a desktop sheet-fed printer or a competing thermal transfer unit. If your crew runs a different Panduit printer platform, order the label cassette built for that machine instead.
3) How much text fits on a Panduit self-laminating cable label with a 0.5 inch print area?
The printable window is 0.5 inches high (12.7 mm) on a label that measures 1 inch wide by 1.5 inches high overall. The rest of the length is the clear laminate tail that wraps over your printed text. Plan your circuit IDs and port numbers around that 0.5 inch band, not the full 1.5 inches, or the last characters end up under the wrap where they are still readable but distorted on the curve of the cable.
4) Can Panduit S100X150VAM vinyl labels be used outdoors or in an unconditioned mechanical room?
Operating range runs -40 to 150 degrees F (-40 to 66 degrees C), which covers unheated warehouses, rooftop and exterior conduit runs, walk-in coolers, and hot mechanical spaces. The self-laminating clear tail seals over the printed text, so the marking survives abrasion and washdown chemicals rather than smearing the way an unprotected paper wrap does.
5) How many Panduit S100X150VAM labels come in a package, and how do I order for a large data center job?
Each cassette holds 175 labels, the standard package is 5 cassettes (875 labels), and a standard carton is 80 pieces. Minimum order is 1. For a data center build where you are marking both ends of every patch cord, count two labels per cable and buy by the package rather than the single cassette so nobody is swapping cartridges mid-rack.
6) What is a self-laminating cable label, and when should I use one instead of a plain wrap-around or a heat shrink marker?
A self-laminating label prints on a small opaque panel, then a clear vinyl tail wraps the rest of the way around the cable and seals over the print. That protects the ID from abrasion and handling without taking the conductor out of service. Use it on cable that is already terminated, in racks and panels where you are re-marking existing runs. Heat shrink markers are the alternative and they have to slide on before termination, so they suit new pulls only. On the S100X150VAM the printed band is 0.5 inches high and the balance of the 1.5 inch length is the clear wrap.
7) Are Panduit S100X150VAM labels RoHS compliant for a government or healthcare spec job?
RoHS compliant, with no mercury content, no hazardous material flag, and no California Prop 65 cancer listing. Country of origin is Japan. Those are the fields procurement usually needs on a submittal for a federal, hospital, or school project.
8) Will printed text stay legible on a white vinyl cable label in a dim electrical room?
The face is white vinyl, which gives black thermal transfer print strong contrast, and the clear laminate over the top keeps it from rubbing off when the bundle is pulled or re-dressed. White is the general-purpose choice for circuit IDs and port numbers; if your facility color-codes by system or voltage, you would spec a colored vinyl label instead of this one.
