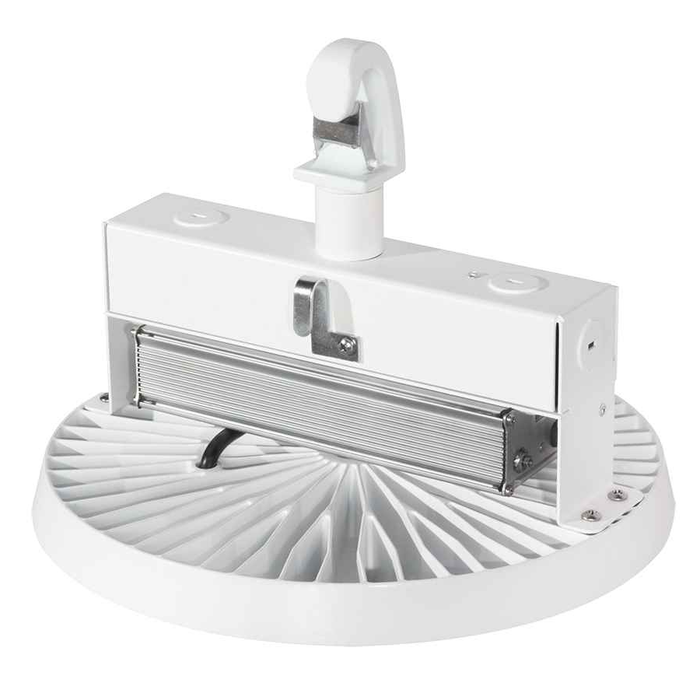

RAB HAYBAY LED High Bay Light 100W-180W with 0-10V Dimming and Neutral/Cool CCT

RAB HAYBAY LED High Bay Light 100W-180W with 0-10V Dimming and Neutral/Cool CCT

(No reviews yet) Write a Review

Model: HAYBAY180N/D10/LOS
$820.25

In Stock (leaves warehouse same day if ordered before 3pm ET)

$820.25
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB HAYBAY LED High Bay Light 100W-180W with 0-10V Dimming and Neutral/Cool CCT

Professional LED high bay lighting with flexible wattage and color temperature options

The RAB HAYBAY LED High Bay Light delivers professional-grade illumination with flexible 100W to 180W power options and selectable neutral to cool color temperature settings. Featuring 0-10V dimming capability and constant current LED driver technology, this high bay fixture provides reliable performance for demanding commercial and industrial applications with an impressive 100,000-hour lamp life rating.

Professional Features & Benefits

  • 100W-180W Power Range: Flexible wattage options accommodate varying illumination requirements and energy efficiency goals across different applications.
  • 0-10V Dimming Control: Professional dimming capability enables precise light level adjustment and enhanced energy savings through compatible control systems.
  • Neutral/Cool CCT Options: Selectable color temperature settings provide optimal lighting quality for specific task requirements and visual comfort.
  • Constant Current Driver: Advanced LED driver technology ensures stable light output and extends fixture lifespan through consistent power delivery.
  • 100,000-Hour Lamp Life: Extended operational life reduces maintenance frequency and total cost of ownership in commercial installations.
  • White Finish: Clean professional appearance integrates seamlessly with modern commercial and industrial environments.
  • LED Technology: Energy-efficient solid-state lighting delivers superior performance compared to traditional high bay solutions.

Technical Specifications

  • Driver Info: Constant Current
  • Lamp Hours: 100000
  • Lamp Info: LED
  • Product Finish: White

Professional Applications

  • Warehouse and Distribution Centers
  • Manufacturing Facilities
  • Retail Big Box Stores
  • Gymnasiums and Recreation Centers
  • Aircraft Hangars
  • Automotive Service Centers
  • Industrial Production Areas

Why Choose RAB Quality?

RAB delivers professional-grade LED high bay lighting solutions engineered for demanding commercial and industrial environments. With constant current driver technology, extended 100,000-hour lamp life, and flexible dimming capabilities, this fixture provides reliable long-term performance and energy efficiency for professional lighting applications.

Manufacturer Resources

Product Specs

Driver Info:
Constant Current
Lamp Hours:
100000
Product Finish:
White
Department:
Electrical
Product Group:
High Bay Lights
Light Technology:
LED

RAB HAYBAY180N/D10/LOS – Frequently Asked Questions

1) What wattages does the RAB HAYBAY LED high bay come in, and how do I pick one for my ceiling height?
The HAYBAY is ordered at a fixed wattage: 100W, 150W, or 180W. You pick the wattage at order time, it is not field adjustable. In practice the 100W suits lower bays and lighter-duty spaces like service bays and small shops, while 150W and 180W are where warehouse racking, manufacturing floors, and gym ceilings usually land. Part numbers follow the wattage directly, HAYBAY100/D10, HAYBAY150/D10, HAYBAY180/D10.
2) Is the RAB HAYBAY high bay 4000K or 5000K?
Both are offered, and you choose at order time rather than switching in the field. The N in the part number is the 4000K neutral white version (HAYBAY150N/D10); without the N you get 5000K cool white (HAYBAY150/D10). 4000K is the usual pick where the space is shared with retail or office-adjacent areas, 5000K where you want maximum apparent brightness on a warehouse or shop floor. Every wattage is available in both color temperatures.
3) Does the RAB HAYBAY work with 0-10V dimming controls?
Yes. Every HAYBAY configuration is a /D10 part, meaning 0-10V dimming is built into the fixture, so it wires to a standard 0-10V control system with the purple and gray low voltage pair alongside line power. There is no non-dimming version to order by mistake. It runs on a constant current LED driver, which is what keeps output steady through the dimming range.
4) What is the difference between the HAYBAY /D10 and the /D10/LOS version?
The /LOS suffix adds the LOSBAY 800 occupancy sensor option to the fixture. So HAYBAY180/D10 is the plain dimming fixture and HAYBAY180/D10/LOS is the same fixture with the sensor option. The sensor choice is made when you order, so decide up front whether the space needs occupancy-based switching (aisles, storage rooms, intermittently used bays) or stays on a central control system.
5) How many fixture combinations are there and how do I spell out the part number I need?
Twelve combinations: three wattages (100, 150, 180) times two color temperatures (4000K and 5000K) times sensor or no sensor. Read the part number left to right, wattage, then N for 4000K if you want neutral, then /D10 for the dimming driver, then /LOS if you want the sensor. A 100W 4000K with sensor is HAYBAY100N/D10/LOS. A 180W 5000K without is HAYBAY180/D10.
6) How long do RAB HAYBAY high bays last before they need replacing?
Rated at 100,000 hours of LED life. Run 24/7 that is over eleven years; on a two-shift 16-hour schedule it stretches past seventeen. For a property manager or MRO group budgeting relamp labor, that is the number that matters most with high bay fixtures, since getting a lift into a warehouse aisle is usually the expensive part, not the fixture.
7) Can I mix HAYBAY wattages in the same building and keep the fixtures looking the same?
Yes. All HAYBAY fixtures share the same white finish across every wattage and color temperature, so a 100W over a service area and a 180W over the main floor read as the same fixture family from the ground. If matching appearance across a facility matters, just keep the color temperature consistent within any single sightline, since a 4000K unit next to a 5000K unit will visibly differ even when the housings match.
8) Is the HAYBAY a good fit for a gym or an aircraft hangar, or is it just a warehouse light?
It is specified for warehouses and distribution centers, manufacturing plants, big box retail, gymnasiums and recreation centers, aircraft hangars, automotive service centers, and general industrial production areas. The common thread is high open ceilings where you want broad downward coverage. For a gym, the 0-10V dimming is worth using so the same space can run full output for play and lower levels for events or cleaning.
9) Why does the constant current driver matter on an LED high bay?
A constant current driver holds the current feeding the LED array steady rather than letting it drift with line conditions, which keeps light output stable and is the main reason the fixture reaches its 100,000-hour rating. It also matters on dimming jobs: constant current is what lets the 0-10V signal take the fixture down smoothly instead of stepping or flickering at low levels.
