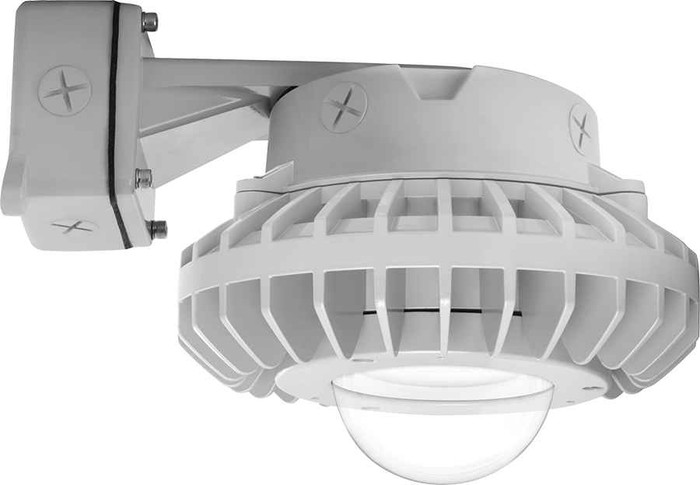

RAB 80W LED Hazardous Location Wall Bracket Light with 5000K Cool White, IP66 Rating, and Die-Cast Aluminum Housing

RAB 80W LED Hazardous Location Wall Bracket Light with 5000K Cool White, IP66 Rating, and Die-Cast Aluminum Housing

(No reviews yet) Write a Review

Model: HAZBLED80FF-DG

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,876.79
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB 80W LED Hazardous Location Wall Bracket Light

Professional hazardous area illumination with superior performance and durability

The RAB 80W LED Hazardous Location Wall Bracket Light delivers reliable illumination for demanding industrial environments. Featuring die-cast aluminum housing with IP66 ingress protection rating, this professional-grade fixture provides 8,810 lumens of 5000K cool white light with superior heat sinking and external Air-Flow fins for optimal thermal management. The constant current driver operates across 100-277V with excellent power factor performance, while multi-chip, high-output LEDs ensure 100,000-hour service life.

Professional Features & Benefits

  • 80W High-Output LED System: Delivers 8,810 lumens with 108 lm/W efficacy for maximum illumination efficiency in hazardous locations.
  • IP66 Ingress Protection: Die-cast aluminum housing with closed cell silicone gaskets provides complete dust protection and water resistance for harsh environments.
  • Universal Voltage Operation: Constant current driver accepts 100-277V input with power factors up to 99.5% for flexible installation requirements.
  • 5000K Cool White Output: Professional color temperature with 72 CRI and warrantied color stability within 200K shift over 5 years.
  • Superior Thermal Management: External Air-Flow fins and advanced heat sinking ensure optimal LED performance and 100,000-hour service life.
  • Stainless Steel Hardware: All external hardware is stainless steel construction for maximum corrosion resistance and durability.
  • Mercury-Free Green Technology: RoHS-compliant LED components with no mercury or UV emissions for environmental safety.

Technical Specifications

  • Amps 120: 0.68A
  • Amps 208: 0.40A
  • Amps 240: 0.35A
  • Amps 277: 0.3A
  • Color Accuracy: 72 CRI
  • Color Stability: LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year p
  • Color Temp: 5000K (Cool)
  • Color Uniformity: RAB's range of Correlated Color Temperature follows the guidelines of the American National Standar
  • Conduit Entry: 3/4"
  • Driver: Constant Current, Class 2, 100-277V, 50/60 Hz, 2000mA, THD <20%
  • Driver Info: Constant Current
  • Efficacy: 108 lm/W
  • Enclosure: Die-cast aluminum housing, lens frame and mounting arm
  • Gaskets: Closed cell silicone gasket
  • Green Technology: Mercury and UV free. RoHS-compliant components.
  • Hardware: All external hardware is stainless steel
  • Iesna Lm 79 Lm 80 Testing: RAB LED luminaires and LED components have been tested by an independent laboratory in accordance w
  • Ip Rating: Ingress protection rating of IP66 for dust and water
  • Lamp Hours: 100000
  • Lamp Info: LED
  • Leds: Multi-chip, high-output, long-life LEDs
  • Lens Globes: Clear flat glass lens
  • Lumens: 8,810 lm
  • Minimum Starting Temperature: -40°C
  • Mounting Method: Wall mount with junction box included
  • Power Factor: 99.5% at 120V, 94.3% at 277V
  • Product Details: Constant Current
  • Product Weight: 19.6 lbs
  • Reflector: Semi-specular aluminum
  • Thd: 4.5% at 120V, 13% at 277V
  • Thermal Management: Superior heat sinking with external Air-Flow fins
  • f 120v: 0.68A
  • f 208v: 0.40A
  • f 240v: 0.35A
  • f 277v: 0.3A

Professional Applications

  • Hazardous Location Industrial Facilities
  • Chemical Processing Plants
  • Oil and Gas Refineries
  • Manufacturing Facilities
  • Marine and Offshore Installations
  • Pharmaceutical Production Areas
  • Food Processing Plants

Why Choose RAB Quality?

RAB delivers professional-grade hazardous location lighting with die-cast aluminum construction, IP66 protection rating, and 100,000-hour LED service life. Independent laboratory testing in accordance with IESNA LM-79 and LM-80 standards ensures reliable performance, while stainless steel hardware and superior thermal management provide long-term durability in the most demanding industrial environments.

Manufacturer Resources

Spec Sheet

Product Specs

Amps 120:
0.68A
Amps 208:
0.40A
Amps 240:
0.35A
Amps 277:
0.3A
Color Accuracy:
72 CRI
Color Stability:
LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year p
Light Temperature:
5000K (Cool)
Color Uniformity:
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standar
Conduit Entry:
3/4"
Driver Info:
Constant Current, Class 2, 100-277V, 50/60 Hz, 2000mA, THD <20%
Efficacy:
108 lm/W
Configuration:
Die-cast aluminum housing, lens frame and mounting arm
Gaskets:
Closed cell silicone gasket
Green Technology:
Mercury and UV free. RoHS-compliant components.
Hardware:
All external hardware is stainless steel
Iesna Lm 79 Lm 80 Testing:
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance w
IP Rating:
Ingress protection rating of IP66 for dust and water
Lamp Hours:
100000
Leds:
Multi-chip, high-output, long-life LEDs
Lumens:
8,810 lm
Minimum Starting Temperature:
-40°C
Mounting Method:
Wall mount with junction box included
Power Factor:
99.5% at 120V, 94.3% at 277V
Product Details:
Constant Current
Product Weight:
19.6 lbs
Reflector:
Semi-specular aluminum
Thd:
4.5% at 120V, 13% at 277V
Thermal Management:
Superior heat sinking with external Air-Flow fins
f 120v:
0.68A
f 208v:
0.40A
f 240v:
0.35A
f 277v:
0.3A
Department:
Electrical
Product Group:
Flood/Security Lights
Light Technology:
LED

RAB HAZBLED80FF-DG – Frequently Asked Questions

1) What voltage does the RAB HAZBLED80 hazardous location wall light run on, and do I need to order a specific voltage version?
One version covers the whole range. The HAZBLED80 uses a constant current, Class 2 driver rated 100-277V, 50/60 Hz at 2000mA, so the same fixture wires to 120V, 208V, 240V or 277V with no voltage-specific part number. Draw is 0.68A at 120V, 0.40A at 208V, 0.35A at 240V and 0.3A at 277V, which is what you size the branch circuit and count fixtures per circuit from. Power factor runs 99.5% at 120V and 94.3% at 277V, with THD of 4.5% at 120V and 13% at 277V.
2) How does the RAB HAZBLED80 mount, and what size conduit does it take?
It is a wall bracket fixture and the junction box comes with it, so you are not sourcing a separate box. Conduit entry is 3/4 inch. Housing, lens frame and mounting arm are all die-cast aluminum, and every piece of external hardware is stainless steel, which matters on a wall in a wash-down or coastal plant. Plan the mounting substrate for 19.6 lbs of fixture weight.
3) What is the difference between the -G and -DG guard options on the RAB HAZBLED80?
The suffix picks the guard. No suffix means no guard. -G is a wire guard, an open cage that keeps forklift masts, hoses and dropped tools off the globe while blocking almost no light. -DG is a die cast guard, a heavier cast aluminum cage for higher-abuse areas. Every lens and globe choice can be ordered in all three, so HAZBLED80C, HAZBLED80C-G and HAZBLED80C-DG are the same clear globe fixture with no guard, wire guard and die cast guard respectively. Guards are a factory option, so specify it on the order.
4) Will the RAB HAZBLED80 hold up in a wash-down or outdoor coastal plant?
It is built for it. The fixture carries an IP66 ingress protection rating for dust and water, sealed with closed cell silicone gaskets, in a die-cast aluminum enclosure with all external hardware in stainless steel. IP66 means dust-tight and rated against powerful water jets, so hose-down cleaning and driving rain are within scope. It is not rated for immersion.
5) Should I order the globe or the flat lens version of the RAB 80W hazardous location light?
Two different distributions. The globe versions throw light around the fixture, which suits aisle and perimeter wall runs where you want spread and some upward component. The flat lens versions (HAZBLED80CF and HAZBLED80FF) put the light down and forward, with a semi-specular aluminum reflector behind it, which is what you want over equipment, walkways and work areas where uplight is wasted. Clear gives you the full 8,810 lumens and the sharpest cutoff; frosted trades a little punch for glare control in areas people work under.
6) Does the RAB HAZBLED80 come in colored globes for signal or zone marking?
Yes. Beyond clear and frosted, the 80W hazardous location bracket light is available with frosted amber, frosted blue, frosted green and frosted red globes, ordered as HAZBLED80FA, HAZBLED80FB, HAZBLED80FG and HAZBLED80FR. Plants use these for zone identification, crane and dock signaling, or amber in areas where insect attraction or UV-sensitive product is a concern. Each color is also available with a die cast or wire guard by adding the -DG or -G suffix.
7) Can this RAB hazardous location light be used in a freezer or an unheated northern facility?
Yes. The minimum starting temperature is -40 degrees C, so the fixture will strike and run in cold storage, unheated warehouses and outdoor installations in hard winter climates. LED output does not suffer in the cold the way HID does, and the external Air-Flow fins on the heat sink are there for the opposite problem, keeping junction temperature down in hot process areas.
8) How many 150W or 175W HID hazardous location fixtures can the RAB 80W LED replace one for one?
The 80W LED produces 8,810 lumens at 108 lm/W, which is in the delivered-lumen range plants typically get out of a 175W metal halide hazardous location unit once the globe and reflector losses and lumen depreciation are counted. Rated LED life is 100,000 hours against the few thousand hours of an HID lamp, and there is no lamp or ballast to restock. For a retrofit, match on lumens rather than wattage and confirm the existing mounting arm and 3/4 inch conduit entry line up.
9) Does the RAB HAZBLED80 contain mercury or emit UV?
No mercury and no UV emission, with RoHS-compliant components throughout. That removes the lamp disposal handling that mercury-vapor and metal halide hazardous location fixtures carry, and the no-UV part matters in food processing and pharmaceutical areas where UV degrades packaging or attracts insects.
