RAB MR16 Gen 2 Dimmable LED Lamp 12V 25000 Hour Professional Lighting System

Professional LED lighting solution for versatile applications

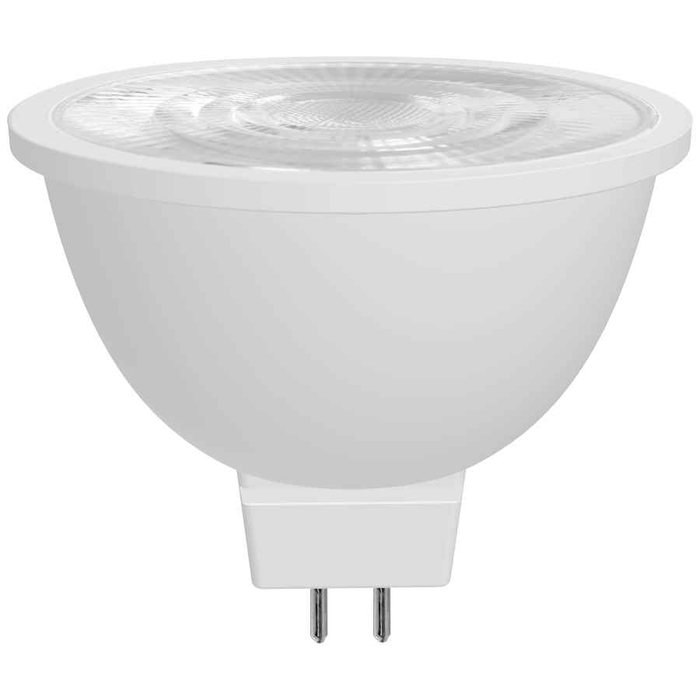

The RAB MR16 Gen 2 Dimmable LED Lamp delivers professional-grade illumination with 12V operation and exceptional 25000-hour lifespan. This LED lamp features dimmable functionality with white finish construction, providing reliable performance for demanding lighting applications with GU5.5 base compatibility.

Professional Features & Benefits

  • 12V Input Voltage: Low voltage operation ensures safe installation and energy-efficient performance in compatible fixtures.
  • 25000 Hour Lifespan: Extended operational life reduces maintenance frequency and replacement costs for professional installations.
  • Dimmable LED Technology: Variable light output control allows precise illumination adjustment for different applications and ambiance requirements.
  • ≤30% Flicker Rating: Low flicker performance provides comfortable visual environment and reduces eye strain in professional settings.
  • White Finish: Clean professional appearance integrates seamlessly with standard fixture designs and architectural elements.
  • Lightweight Design: 0.1014 lb weight minimizes fixture stress and simplifies installation in various mounting configurations.

Technical Specifications

  • Compatibility List: mr16_compatibility.pdf
  • Flicker: ≤30%
  • Input Voltage: 12V
  • Lamp Hours: 25000
  • Lamp Info: LED
  • Product Finish: White
  • Product Weight: 0.1014

Professional Applications

  • Residential Track and Accent Lighting
  • Commercial Display and Retail Illumination
  • Hospitality and Restaurant Ambiance
  • Professional Office Task Lighting
  • Gallery and Museum Exhibition
  • Architectural Accent Applications
  • Landscape and Outdoor Accent Lighting

Why Choose RAB Quality?

RAB delivers professional reliability with this MR16 Gen 2 LED lamp featuring 25000-hour rated life and low flicker performance. The dimmable LED technology and 12V operation provide versatile installation options while maintaining consistent professional-grade illumination for demanding applications.

Manufacturer Resources

Product Specs

Compatibility List:
mr16_compatibility.pdf
Flicker:
≤30%
Input Voltage:
12V
Lamp Hours:
25000
Product Finish:
White
Product Weight:
0.1014
Department:
Electrical
Product Group:
LED Bulbs
Light Technology:
LED

RAB MR16-6.5-930-35D-DIM-G2 – Frequently Asked Questions

1) Will a RAB MR16 Gen 2 LED lamp work in my existing 12V track and transformer, or do I need to change the driver?
The MR16 Gen 2 runs on 12V input, so it drops into low voltage track, monopoints and recessed accent fixtures already fed by a 12V supply. It is a lamp only, and it does not replace or bypass the transformer feeding the fixture. RAB publishes a transformer compatibility list for this lamp, and on a dimmed low voltage circuit the transformer and the wall dimmer both have to be on that list, not just the lamp. Magnetic and electronic low voltage supplies behave differently with an LED load, so check the specific transformer model against RAB's list before you buy a case for a whole job.
2) Which beam angle should I order for RAB MR16 LED lamps, 15, 25 or 35 degrees?
Three beam spreads are offered: 15, 25 and 35 degrees. The 15 degree spot is the tight one, for throwing light down a high ceiling onto a single piece of art, a sign or a merchandise pedestal. 25 degrees is the general purpose accent beam and the safest choice if you are relamping a mixed run of track heads and do not know what was there. 35 degrees is the flood, for washing a display case, a millwork face or a seating area where you want the pool of light to overlap head to head. Pitch matters more than wattage here, a 35 degree lamp at 7.5W and a 15 degree lamp at 5W can look nothing alike on the same wall.
3) What color temperatures does the RAB MR16 Gen 2 come in, and which one matches the rest of my building?
Three color temperatures are available across the range: 2700K, 3000K and 4000K. For hospitality, restaurant and residential accent work where the existing lamps are halogen, 2700K is the closest match to what people are used to seeing. 3000K is the common commercial retail and lobby standard and reads slightly cleaner without going cold. 4000K is neutral white, used in galleries, offices and anywhere task or display work needs the light to look crisp. Every color temperature is offered in all three beam spreads and all three wattages, so you can standardize a facility on one temperature and still vary the optic head to head.
4) Are RAB MR16 Gen 2 LED lamps dimmable on a standard wall dimmer?
Dimming is built in on every version of the MR16 Gen 2, the DIM in the part number carries through the whole range. That said, a dimmable LED lamp is only half the circuit on a 12V system, the dimmer and the low voltage transformer have to be rated to run together with an LED load or you get drop out at the bottom of the range, buzz, or a floor well above where the old halogen went. RAB publishes a compatibility list covering that pairing, and on a multi fixture job it is worth checking one lamp on the actual dimmer and transformer before committing the order.
5) What do I have to specify when ordering a RAB MR16 Gen 2 dimmable LED lamp?
Three choices define the part: wattage (5W, 6.5W or 7.5W), color temperature (2700K, 3000K or 4000K) and beam spread (15, 25 or 35 degrees). Those combine into 27 orderable lamps, and the part number reads in that order. MR16-6.5-930-25D-DIM-G2, for example, is the 6.5W 3000K 25 degree version. If you are ordering for a facility, lock the color temperature first, then pick beam by fixture location, then wattage by mounting height.
6) Is the RAB MR16 LED lamp low enough flicker for retail video, museum display or an office?
Flicker on the MR16 Gen 2 is rated at 30 percent or less. That figure is the one that matters if the space gets filmed, if merchandise is being photographed under the light, or if people work under it for a full shift. For gallery and exhibition work and for office task lighting it is the spec to record on the submittal alongside color temperature. Note that flicker on a dimmed low voltage circuit also depends on the transformer and dimmer driving the lamp, so a compatible pairing is what preserves the rating down the dimming curve.
7) Can I mix RAB MR16 Gen 2 wattages on the same track run, or do they all have to match?
The 5W, 6.5W and 7.5W versions all run on the same 12V supply, so they can share a circuit. Where mixing bites you is appearance, not electrical, two adjacent heads at different wattages read as a bright one and a dim one to anyone standing in the room. The usual approach is to hold one wattage per sightline and vary beam angle instead, using the higher wattage only where the mounting height is greater or the fixture is throwing farther. Keep color temperature identical across a run regardless, since a 2700K head next to a 4000K head is the mismatch people notice first.
8) Will these RAB MR16 LED lamps put too much weight on my track heads or gimbal rings?
Each MR16 Gen 2 lamp weighs 0.1014 lb, roughly 1.6 ounces. That is light enough that it will not unbalance an aimed gimbal or a small track head, which is a real problem with some heavier heatsinked LED MR16 retrofits that sag out of aim once you tilt them. If you are re-aiming a run of accent heads after a relamp, the aim you set is the aim that stays.
9) Can I use a RAB MR16 Gen 2 LED lamp in outdoor landscape accent fixtures?
Landscape and outdoor accent work is one of the applications RAB lists for the MR16 Gen 2, and the 12V input matches the low voltage landscape transformers those systems already run on. The lamp itself is the accent source; the fixture housing is what provides the weather protection, so it needs to be an enclosed outdoor rated MR16 fixture. The 15 degree spot is the one for uplighting a tree canopy or a building face from grade, with 35 degrees better suited to shorter throws like a shrub bed or a wall wash.
