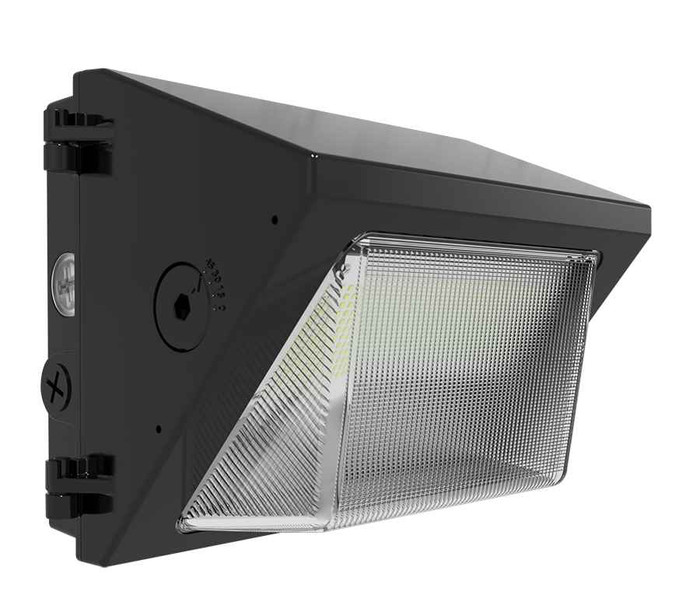

RAB 30W LED Wall Pack Light Fixture with Multi-Wattage Selection Bronze Finish

RAB 30W LED Wall Pack Light Fixture with Multi-Wattage Selection Bronze Finish

(No reviews yet) Write a Review

Model: W22-S-30
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$203.39
$177.96
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RAB 30W LED Wall Pack Light Fixture with Multi-Wattage Selection Bronze Finish

Professional LED wall pack lighting with selectable wattage for versatile applications

The RAB LED Wall Pack Light Fixture delivers reliable outdoor and security lighting with professional-grade LED technology. This bronze-finished fixture features selectable wattage options (30/25/20/15W) and constant driver operation, providing flexible illumination solutions for commercial and residential applications with up to 100,000 lamp hours of service life.

Professional Features & Benefits

  • Multi-Wattage Selection (30/25/20/15W): Allows precise light output adjustment to match specific application requirements and energy efficiency goals.
  • High-Efficiency LED Technology: Delivers 1,917-4,508 lumens with efficacy ratings of 116.9-151.5 for optimal energy performance and cost savings.
  • 100,000 Hour Lamp Life: Provides exceptional longevity reducing maintenance costs and replacement frequency in commercial installations.
  • Universal Voltage Compatibility: Operates on 120V (0.25A), 208V (0.15A), 240V (0.13A), and 277V (0.11A) for flexible installation options.
  • Constant Driver Operation: Ensures stable light output and consistent performance throughout the fixture's operational life.
  • Durable Bronze Finish: Weather-resistant coating provides long-lasting appearance and corrosion protection for outdoor environments.
  • Compact Design: 11.58" x 9.09" x 9.17" dimensions with 5.512 lb weight for versatile mounting applications.

Technical Specifications

  • Amps_120: 0.25A
  • Amps_208: 0.15A
  • Amps_240: 0.13A
  • Amps_277: 0.11A
  • Department: Electrical
  • Driver_Info: Constant
  • Efficacy: 116.9-151.5
  • Input_Watts: 15.9-30.4
  • Lamp_Hours: 100000
  • Lamp_Info: LED
  • Lamp_Lumens: 1,917-4,508
  • Product Finish: Bronze
  • Product Height: 9.17
  • Product Length: 9.09
  • Product Wattage: 30/25/20/15
  • Product Weight: 5.512
  • Product Width: 11.58

Professional Applications

  • Commercial Building Perimeter Lighting
  • Warehouse and Industrial Facility Security
  • Retail Store Exterior Illumination
  • Multi-Unit Residential Properties
  • Professional Office Building Entrances
  • Emergency Services and Healthcare Facilities
  • Educational Institution Campus Lighting

Why Choose RAB Quality?

RAB lighting fixtures are engineered for professional performance with 100,000-hour lamp life and constant driver technology ensuring reliable operation. The bronze finish and universal voltage compatibility provide durability and installation flexibility for demanding commercial and residential lighting applications.

Manufacturer Resources

Product Specs

Amps 120:
0.25A
Amps 208:
0.15A
Amps 240:
0.13A
Amps 277:
0.11A
Department:
Electrical
Driver Info:
Constant
Efficacy:
116.9-151.5
Input Watts:
15.9-30.4
Lamp Hours:
100000
Lamp_Info:
LED
Lamp_Lumens:
1,917-4,508
Product Finish:
Bronze
Product Height:
9.17
Product Length:
9.09
Product Wattage:
30/25/20/15
Product Weight:
5.512
Product Width:
11.58

RAB W22-S-30 – Frequently Asked Questions

1) Will the RAB W22-S-30 wall pack run on 277V, or do I need a separate model for each voltage?
One fixture covers all four common commercial voltages. The W22-S-30 driver is rated 120-277V, drawing 0.25A at 120V, 0.15A at 208V, 0.13A at 240V and 0.11A at 277V. So the same part goes on a 120V residential circuit or a 277V lighting panel in a warehouse, which is what makes it easy to standardize across a portfolio of buildings.
2) Is a 30W LED wall pack bright enough to replace a 100W or 175W metal halide wall pack?
On lumens, yes for most entry and perimeter work: the W22-S-30 puts out up to 4,508 lumens at the 30W setting, which is in the range a small HID wall pack delivered after lamp depreciation, at roughly a tenth the input wattage (15.9 to 30.4W actual). Where you are lighting a large parking face or a high loading dock wall, a 30W head is the wrong size and you want a higher-wattage wall pack or a flood. For doorways, stairwells, walkways and building perimeter, this is the right class of fixture.
3) Can this RAB wall pack be dimmed off a building control system?
Yes. The driver is 0-10V dimming, so it wires to a 0-10V control signal from a lighting panel, occupancy sensor pack or BMS in addition to the line voltage. It is a constant-output driver, so light level holds steady at whatever wattage setting and dim level you set. If your controls are line-voltage switching only, you can still use it, just leave the dimming leads unused per the control wiring you are following.
4) Does the LED in this wall pack get replaced, or is the whole fixture disposable when it fails?
The LED source is integral and rated 100,000 lamp hours, so there is no lamp to stock or relamp. Run 12 hours a night and that is over 20 years of service, which is why MRO and property maintenance groups spec these for high-ladder and high-lift locations where the labor to relamp costs more than the fixture.
5) What do I actually order to get this fixture, and how do I specify the wattage?
The orderable part is RAB W22-S-30, bronze, with the 120-277V 0-10V dimming driver. You do not order a wattage: the 30/25/20/15W selection is made on the fixture, so one part number covers all four outputs. That means a contractor can carry a single SKU for a multi-building job and set each head to what the site needs.
6) How many of these wall packs can I put on one 20A 120V circuit?
Each W22-S-30 draws 0.25A at 120V. At 277V the draw drops to 0.11A per fixture, so a single branch circuit carries far more heads at the higher voltage. Size your circuit to the continuous-load rules your inspector applies rather than to the raw total.
7) What finish does this RAB wall pack come in, and will it match the other fixtures on my building?
Bronze is the only finish on the W22-S-30. Bronze is the standard dark architectural finish on commercial wall packs, so it generally blends with existing bronze or dark-bronze exterior fixtures and dark storefront framing. If your building is standardized on white or a painted-to-match color, this is not the fixture for that elevation.
