RACO 256 3-3/4 in. Square Box, Large Capacity Welded Steel, 3-1/2 in. Deep

RACO 256 3-3/4 in. Square Box, Large Capacity Welded Steel, 3-1/2 in. Deep

(No reviews yet) Write a Review

Model: RACO256

In Stock (leaves warehouse same day if ordered before 3pm ET)

$26.34
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

RACO 256 3-3/4 in. Square Box, Large Capacity Welded Steel, 3-1/2 in. Deep

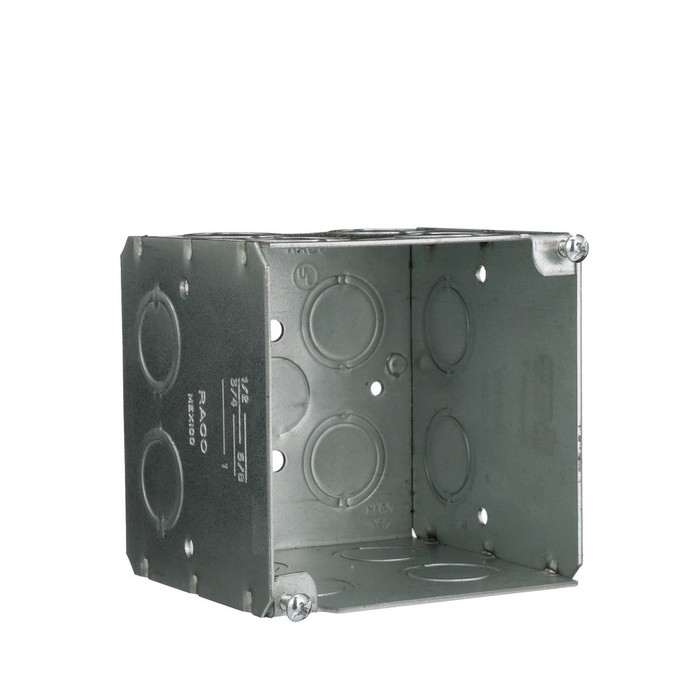

The RACO 256 3-3/4 in. Square Box is a large capacity, welded steel enclosure engineered for durable electrical rough-in installations in commercial and industrial construction. Measuring 3-1/2 in. deep, this square box features seventeen knockouts — sixteen 1/2 in. and 3/4 in. concentric knockouts plus one additional 1/2 in. knockout — giving installers flexible conduit entry from multiple directions without extra reducing washers. Part of RACO's Steel Boxes and Covers product line, the fully welded steel construction is UL Listed, delivering the strength and code compliance electrical professionals require for demanding wiring projects.

Key Features

  • Box Size: 3-3/4 in. square box design provides ample interior room for splicing conductors, mounting devices, and making secure connections in tight rough-in spaces.
  • Large Capacity: The large-capacity interior volume accommodates additional conductors, devices, and wiring compared to a standard-depth square box, reducing the need for box fill extensions.
  • Welded Steel Construction: Fully welded seams eliminate gaps and deliver rugged, long-lasting durability suited to demanding commercial and industrial job sites.
  • Depth: 3-1/2 in. deep profile supports larger wire fills, additional device mounting, and easier wire management during installation.
  • Seventeen Knockouts: Sixteen 1/2 in. and 3/4 in. concentric knockouts plus one additional 1/2 in. knockout simplify conduit entry from multiple directions and conduit sizes.
  • Concentric Knockout Design: Concentric 1/2 in. and 3/4 in. knockouts let installers select the exact conduit size needed without carrying separate reducing washers.
  • UL Listed: Certified for safe, code-compliant installation in commercial and industrial applications.

Certifications & Compliance

  • UL Listed

Technical Specifications

  • Product Type: Steel Boxes and Covers
  • Product Depth: 3.5 in
  • Knockouts: 1/2 in; 1/2 - 3/4 in Concentric
  • Certified Listed: UL Listed

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Junction and Pull Box Wiring
  • New Construction and Renovation Projects
  • Conduit Routing and Device Mounting

Why RACO?

RACO's fully welded steel construction and UL Listed certification reflect a longstanding commitment to rugged, code-compliant electrical products built for the realities of the jobsite. The 256 square box's large capacity, 3-1/2 in. depth, and seventeen-knockout configuration make it a dependable choice for electricians who need a durable enclosure that installs quickly, accepts multiple conduit sizes, and performs reliably over the life of the installation.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
RACO-20260916
Product Type:
Outlet Box
Product Depth:
3.5 in
Knockouts:
1/2 in;1/2 - 3/4 in Concentric
Certified Listed:
UL Listed
Department:
Electrical
Product Subgroup:
Electrical Boxes
Product Group:
Boxes & Enclosures

RACO RACO256 – Frequently Asked Questions

1) What conduit sizes will the RACO 256 square box accept without reducing washers?
The 256 takes 1/2 in. or 3/4 in. conduit straight out of the box. Sixteen of its knockouts are 1/2 in. and 3/4 in. concentric, so you punch out the inner ring for 1/2 in. or the full ring for 3/4 in. There is also one additional plain 1/2 in. knockout. No reducing washers needed to mix sizes on the same box.
2) How deep is the RACO 256 box, and why would I use it instead of a standard square box?
It is 3-1/2 in. deep, which is well past the usual 1-1/2 to 2-1/8 in. square box depth. That extra depth is what buys you the box fill for more conductors and devices, so on a junction or pull point with several conduits landing you can often skip an extension ring entirely. If you only have a couple of conductors, a shallower box is easier to set in the wall cavity.
3) Is the RACO 256 UL Listed for commercial electrical work?
Yes, the 256 is UL Listed, which is what an inspector will look for on a steel junction or pull box in commercial and industrial installations.
4) Can I use the RACO 256 as a pull box for conduit runs?
That is one of its intended uses. The 3-3/4 in. square welded steel body with 3-1/2 in. depth and seventeen knockouts gives you entry from multiple faces, which is what you want at a pull or junction point rather than a device location. Cover is ordered separately.
5) Does the RACO 256 come with a cover or mounting bracket?
The 256 is the box body only, welded steel with no cover included. You add the square cover appropriate to the job, blank for a junction or pull point, or a device/plaster ring if you are mounting wiring devices.
6) Are the seams on the RACO 256 welded or crimped?
Fully welded. Welded seams leave no gaps at the corners, which matters on industrial rough-in where the box gets knocked around before the walls close up and where you do not want a seam opening under conduit strain.
7) I need to order one RACO square box by part number, what do I ask for?
RACO 256. That is the manufacturer part number for the 3-3/4 in. square welded steel box, 3-1/2 in. deep.
