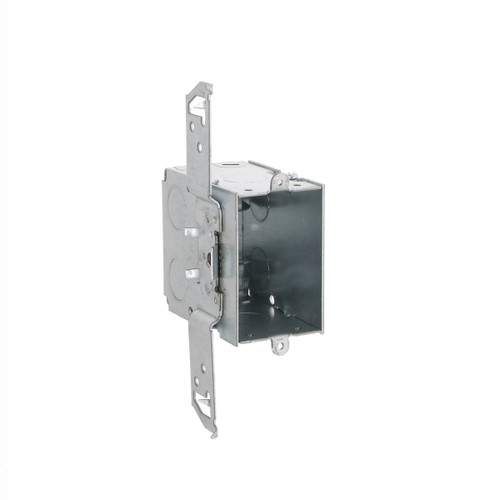

RACO 604 Gangable Steel Switch Box, 3 in x 2 in x 3-1/2 in Deep with TS Bracket
Model: RACO-604
RACO 604 Gangable Steel Switch Box, 3 in x 2 in x 3-1/2 in Deep with TS BracketThe RACO 604 is a gangable steel switch box built for reliable device mounting in commercial and residential wiring...
RACO
$6.70
RACO 524 Gangable Steel Switch Box, 3 in. x 2 in., TS Bracket
The RACO 524 is a gangable steel switch box built for fast, reliable device installation in residential and light commercial wiring. Sized 3 in. x 2 in. with a 2-1/2 in. deep interior, this box includes three 1/2 in. knockouts and built-in AC/MC/Flex cable clamps for direct termination of Armored Cable, Metal Clad, MCI-A, and Flex wiring systems. A TS bracket is included for secure mounting to metal or wood studs, and the box is UL Listed for code-compliant installation.
Key Features
- Trade Size: 3 in. x 2 in. footprint with a 2-1/2 in. deep interior for standard switch and receptacle installations.
- Gangable Design: This box is gangable, allowing multiple boxes to be joined together for multi-device applications.
- Durable Construction: Steel body construction provides strength and long-term durability in framed wall installations.
- Knockouts: Three 1/2 in. knockouts provide flexible conduit and cable entry points.
- Integrated Clamps: Built-in AC/MC/Flex clamps secure Armored Cable, Metal Clad, MCI-A, and Flex wiring systems directly at the box without additional connectors.
- TS Bracket: Included mounting bracket is designed for attachment to metal or wood studs, simplifying rough-in installation.
Certifications & Compliance
- UL Listed
Technical Specifications
- Product Type: Steel Boxes and Covers
- Product Depth: 2.5 in
- Bracket Type: TS, for Metal or Wood Studs
- Wiring System: Armored Cable/Metal Clad/MCI-A/Flex
- Gangable: Yes
- Certified Listed: UL Listed
Typical Applications
- Residential and Commercial Switch and Receptacle Installations
- New Construction Wall Framing with Metal or Wood Studs
- Armored Cable (AC), Metal Clad (MC), and Flex Wiring Installations
- Multi-Gang Device Wiring Requiring Ganged Boxes
- Renovation and Remodel Wiring Projects
Why RACO?
RACO steel boxes are engineered for dependable, code-compliant electrical rough-in work, combining gangable steel construction with integrated AC/MC/Flex clamps and a TS mounting bracket to speed up installation on metal or wood stud framing. As a UL Listed product, the RACO 524 delivers the quality and reliability electrical professionals expect for switch and receptacle box applications. Choose RACO for consistent fit, secure cable retention, and long-lasting steel construction on every job.
Manufacturer Resources
Spec Sheet
Product Specs
- list_batch:
- RACO-20260916
- Product Type:
- Switch Box
- Product Depth:
- 2.5 in
- Bracket Type:
- TS, for Metal or Wood Studs
- Wiring System:
- Armored Cable/Metal Clad/MCI-A/Flex
- Gangable:
- Yes
- Certified Listed:
- UL Listed
- Department:
- Electrical
- Product Subgroup:
- Electrical Boxes
- Product Group:
- Boxes & Enclosures
RACO RACO524 – Frequently Asked Questions
1) Will the RACO 524 switch box mount to metal studs, or is it only for wood framing?
Both. The 524 ships with a TS bracket rated for metal or wood studs, so the same box covers steel stud commercial partitions and wood stud residential framing without a separate mounting accessory.
2) Can I use the RACO 524 with MC cable without buying separate connectors?
Yes. The 524 has built-in AC/MC/Flex clamps, so Armored Cable, Metal Clad, MCI-A, and Flex land directly at the box and are secured there. You do not add a separate cable connector for those wiring methods. If you are running NM (Romex), this is not the clamp type for it.
3) Can I gang two RACO 524 boxes together for a two-gang switch?
Yes, the 524 is a gangable box. The sides come off so you can join boxes for multi-device installs, which is how you build a 2-, 3-, or 4-gang assembly from single boxes instead of stocking a separate multi-gang box.
4) For a non-metallic wiring job, what should be used instead of the RACO 524?
The RACO 524 is a steel box with integrated clamps for Armored Cable, Metal Clad, MCI-A and Flex, so it is aimed at metallic wiring methods. For non-metallic work, the Allied Moulded P-181 FlexBox is a 1-gang thermoplastic residential switch/receptacle box with 18 cu. in. of volume, and the Cantex EZ20SB EZ Box is a 1-gang non-metallic box made for steel stud framing.
5) How many knockouts does the RACO 524 have and what size?
Three 1/2 in. knockouts, which take standard 1/2 in. trade size conduit fittings or cable connectors. Combined with the integrated AC/MC/Flex clamps, that gives you entry points at more than one face for feed and switch legs.
6) Is the RACO 524 steel box UL Listed for commercial work?
The 524 is UL Listed, and it is built for residential and light commercial device installations. Steel construction with an integral bracket is the usual choice where a metallic raceway or armored cable system has to be bonded through the box.
7) Should I use a steel switch box like the RACO 524 or a non-metallic one?
Steel is what you want when you are running AC, MC, MCI-A, or Flex, since the box clamps and bonds that armor directly. If the job is NM cable in wood framing and no metallic bonding path is needed, a non-metallic box such as the Allied Moulded P-181 FlexBox 1-gang or the Cantex EZ20SB EZ Box for steel studs is the simpler route. For a two-gang non-metallic rough-in, Allied Moulded's 2302-NKV fiberglass box covers it.
8) If I need a two-device opening, do I gang RACO 524 boxes or buy a 2-gang box?
Either approach works. The RACO 524 is gangable, so two boxes can be joined to serve a two-device opening in the same framed wall. If you prefer a single one-piece enclosure, the Allied Moulded 2302-NKV is a fiberglass reinforced 2-gang switch box. The difference is construction and assembly: ganged 524 boxes give you a steel enclosure with AC/MC/Flex clamps already in the box, while the 2302-NKV arrives as one molded 2-gang body.
9) We frame with metal studs - is the Cantex EZ20SB a substitute for the RACO 524?
They serve the same opening but differ in how they mount and what wiring they accept. The Cantex EZ20SB EZ Box is a 1-gang non-metallic box designed for steel studs. The RACO 524 ships with a TS bracket rated for metal or wood studs, so it also attaches to steel framing, and it adds integrated Armored Cable/Metal Clad/MCI-A/Flex clamps that a non-metallic box does not provide. Choose based on the wiring method in the wall.
10) Which of these boxes lets me set the device flush with a finished wall thickness that is not yet final?
The Thomas & Betts LXWOWC-25 is a Steel City Adjust-A-Box, a series built around adjustment at the box rather than a fixed-depth set. The RACO 524 is a fixed 2.5 in. deep gangable steel box mounted with its TS bracket, so its position is set at rough-in. If drywall thickness is still open on the job, the Adjust-A-Box series is the one to look at.
11) Does the RACO 524 come with a cover or device plate?
No. The 524 is the box with its TS bracket and integral AC/MC/Flex clamps. Device screws aside, the wall plate is ordered separately, and if you need a mud ring or raised cover for drywall depth, that is a separate item too.
12) I manage apartment buildings. Can the RACO 524 be used for remodel work or is it new-construction only?
It suits both. The 524 is a bracketed rough-in box, which is at its best when framing is open in new construction, and RACO lists renovation and remodel wiring among its applications. For an existing finished wall where you cannot reach a stud face, a bracketed box is the wrong tool and you want an old-work box instead.
