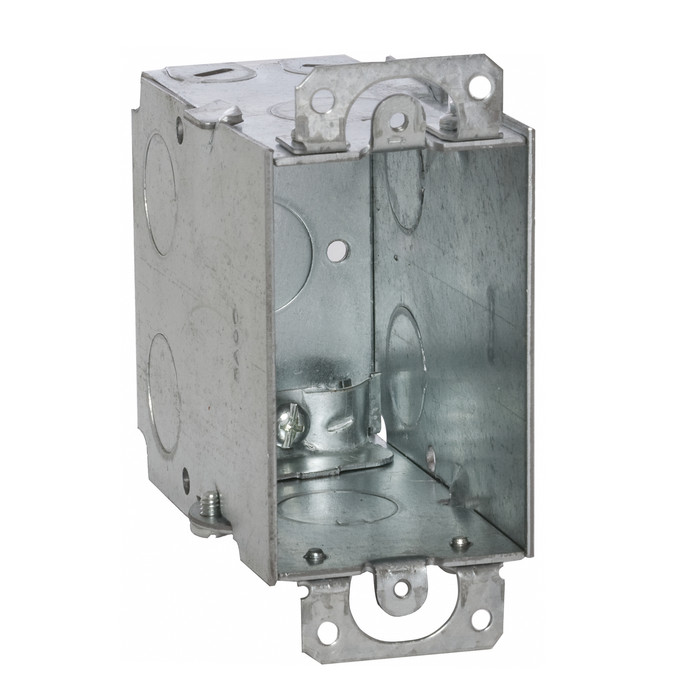

RACO 601 Gangable Switch Box, 3 in x 2 in, 3-1/2 in Deep, Steel
The RACO 601 is a gangable steel switch box measuring 3 in x 2 in with a 3-1/2 in deep body, engineered for reliable device mounting in residential and light commercial wiring installations. This box includes seven 1/2 in knockouts and built-in NMSC clamps for secure Nonmetallic Sheathed Cable entry, plus integrated plaster ears that support flush mounting in finished walls. Constructed from steel and UL Listed, the RACO 601 delivers a dependable, code-compliant enclosure for switches and receptacles on any jobsite.
Key Features
- Trade Size: 3 in x 2 in switch box body with a 3-1/2 in deep interior for adequate wiring capacity.
- Durable Construction: Steel construction (Steel Boxes and Covers category) for long-lasting strength in device box installations.
- Gangable Design: Gangable sides allow multiple boxes to be joined together for multi-device installations.
- Knockouts: Seven 1/2 in knockouts provide multiple points of entry for conduit and cable.
- NMSC Clamps: Built-in clamps are designed for Nonmetallic Sheathed Cable wiring systems, securing cable entry without added hardware.
- Plaster Ears: Integrated plaster ears support flush, secure mounting in finished wall surfaces.
- Bracket Type: No Bracket configuration for direct box mounting applications.
Certifications & Compliance
- UL Listed
Technical Specifications
- Product Type: Steel Boxes and Covers
- Product Depth: 3.5 in
- Bracket Type: No Bracket
- Wiring System: Nonmetallic Sheathed Cable
- Gangable: Yes
- Certified Listed: UL Listed
Typical Applications
- Residential Switch and Receptacle Wiring
- Multi-Gang Device Installations
- Nonmetallic Sheathed Cable (NMSC) Wiring Systems
- New Construction and Remodel Electrical Work
- Finished Wall Device Mounting
Why RACO?
RACO steel switch boxes are built for electricians who need reliable, code-compliant enclosures on every job. The RACO 601's gangable steel body, integrated NMSC clamps, and plaster ears simplify installation, while its UL Listing confirms it meets recognized safety standards. Choose RACO for consistent quality in device box wiring applications, from new construction to remodel projects.
Manufacturer Resources
Spec Sheet
Product Specs
- list_batch:
- RACO-20260916
- Product Type:
- Switch Box
- Product Depth:
- 3.5 in
- Bracket Type:
- No Bracket
- Wiring System:
- Nonmetallic Sheathed Cable
- Gangable:
- Yes
- Certified Listed:
- UL Listed
- Department:
- Electrical
- Product Subgroup:
- Electrical Boxes
- Product Group:
- Boxes & Enclosures
RACO RACO601 – Frequently Asked Questions
1) Can I gang RACO 601 switch boxes together for a 2-gang or 3-gang device install?
Yes. The RACO 601 has gangable sides, so the plates come off and multiple boxes join to build 2-gang, 3-gang or wider device assemblies. If you would rather buy a one-piece 2-gang box, the Allied Moulded 2302-NKV is a fiberglass reinforced 2-gang switch box instead of a ganged steel assembly.
2) Will the RACO 601 work with Romex / nonmetallic sheathed cable without adding separate cable connectors?
Yes. The 601 ships with built-in NMSC clamps, so NM cable is secured at the box with no extra connectors purchased. The wiring system it is built for is nonmetallic sheathed cable; if you are pulling MC or AC cable you need a box with clamps rated for that instead.
3) How deep is the RACO 601 switch box, and will it fit in a 2x4 stud wall?
The body is 3-1/2 inches deep. That is the full depth of a nominal 2x4 stud, so it uses the entire stud cavity with no room behind for insulation or a second-side box. On 2x4 framing with drywall it sets flush, but on a furred-out or shallow wall you want a shallower box.
4) Does the RACO 601 come with a mounting bracket or nail-on flange?
No bracket. The 601 is a no-bracket box, so it is fastened directly through the box to the stud or framing member. If you need a bracket for fast new-construction stud nailing, order a bracketed version of the box instead. The integrated plaster ears handle flush alignment with the finished wall surface.
5) What is the closest steel gangable equivalent to the RACO 601 switch box?
The Thomas & Betts LXWOWC-25 Steel City Adjust-A-Box is the nearest match in kind: it is a 1-gang gangable switch box in pre-galvanized steel, so like the RACO 601 it is a steel device box with gangable sides that can be joined for multi-device runs. The 601 is a 3 in x 2 in body 3-1/2 in deep with seven 1/2 in knockouts, built-in NMSC clamps and plaster ears, and is UL Listed. If you are standardizing on steel gangable boxes, the two are interchangeable in function; confirm cable clamping style for the LXWOWC-25 against your wiring method before you swap.
6) Can I use a nonmetallic box instead of the RACO 601 for a single switch in a wood-stud wall?
For a single device in a wood-stud wall, the Allied Moulded P-181 FlexBox is a 1-gang thermoplastic switch/receptacle box rated 18 cubic inches, and it is the simpler one-device option where you do not need a steel body. The trade-off is that the P-181 is a fixed 1-gang box, while the RACO 601 is gangable, so the 601 lets you add a second or third device to the same opening later by joining boxes. The 601 is steel with built-in NMSC clamps and is UL Listed, which matters if your spec or inspector calls for a metallic enclosure or for bonding continuity through the box.
7) The RACO 601 has no bracket - what should I use in a steel stud wall instead?
The RACO 601 is a No Bracket configuration, so it is mounted directly to the framing or secured in the opening by its plaster ears. For steel studs, the Cantex EZ20SB EZ Box is a 1-gang non-metallic box built specifically as a steel stud box, so the attachment is designed for that framing. Keep the 601 where you are nailing or screwing to wood framing or setting into a finished wall with the plaster ears, and where you want the option to gang additional devices.
8) How many cable entries does the RACO 601 steel switch box have?
Seven 1/2 inch knockouts, spread around the box so you can bring cable or conduit in from the back, ends or sides depending on how the rough-in lands.
9) Is the RACO 601 UL Listed for use in inspected residential and light commercial work?
The 601 is UL Listed. It is a steel device box intended for switch and receptacle wiring in residential and light commercial installations, new construction or remodel.
10) Should I use a steel gangable box like the RACO 601 or a non-metallic box?
Steel is the choice where you want a metal enclosure you can gang for multi-device runs, bond to the equipment grounding conductor, and set with plaster ears in a finished wall. Non-metallic is the alternative when you want no bonding at the box and a one-piece body: the Allied Moulded P-181 FlexBox is a 1-gang thermoplastic switch/receptacle box at 18 cubic inches, and the Cantex EZ20SB EZ Box is a 1-gang non-metallic box made for steel stud framing.
11) Will the RACO 601 mount flush in an existing finished plaster or drywall wall?
The 601 has integrated plaster ears, which bear on the finished wall surface and set the box face at the right depth for the device and cover plate. That is what makes it workable for remodel work in a finished wall rather than only open framing.
12) Is the Allied Moulded 2302-NKV a drop-in replacement for the RACO 601?
No. The Allied Moulded 2302-NKV is a fiberglass reinforced 2-gang switch box, so it is a two-device enclosure in a single molded body, while the RACO 601 is a 3 in x 2 in single-device steel box 3-1/2 in deep. To get two devices from the 601 you gang two boxes together, which changes the rough opening and the cover plate you order. If you already have a 2-gang opening cut, the 2302-NKV fills it as one piece; if you need a metallic box or want to add devices incrementally, stay with the 601.
13) I need a deep box for a lot of conductors - how does the RACO 601 compare to the molded boxes?
The RACO 601 runs a 3-1/2 in deep body behind a 3 in x 2 in face, which is the deep end of the standard single-gang device box range and gives you room for multiple NMSC runs through the built-in clamps. Among the molded alternatives, the Allied Moulded P-181 FlexBox is listed at 18 cubic inches as a 1-gang residential box. Compare your conductor and device fill count against those two numbers and pick the body that clears it with the wiring method you are running.
