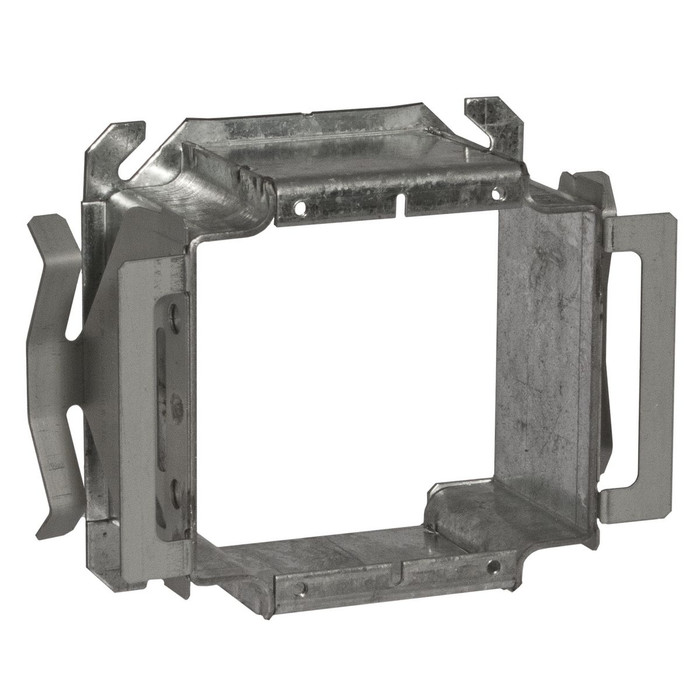

RACO 796B BLOCK-LOC Series 2-Gang Square Tile Cover, 4 in., 2 in. Deep
The RACO 796B is a 4 in. square tile cover from RACO's BLOCK-LOC® Series, engineered for 2-gang device installations that require a 2 in. deep profile. Built with welded construction for a durable, secure seam, this square cover is UL Listed for code-compliant electrical work in masonry and tile-faced block wall systems. It is designed to pair with BLOCK-LOC series boxes and devices for a clean, flush finish in commercial and institutional construction.
Key Features
- 4 in. Square Size: Sized to match standard 4 in. square box and device openings for a precise, flush fit.
- 2 in. Deep Profile: Provides added interior clearance for wiring devices, splices, and BLOCK-LOC series components.
- 2-Gang Configuration: Covers dual device openings, ideal for installations requiring two devices in a single location.
- Welded Construction: Welded seams deliver a strong, rigid cover built to withstand jobsite handling and long-term service.
- BLOCK-LOC® Series Compatibility: Part of RACO's BLOCK-LOC Series, designed for coordinated use with matching block-mount boxes and covers.
- Square Shape: Square profile suits masonry block and tile wall openings for a clean, flush architectural appearance.
- UL Listed: Independently listed for use in code-compliant commercial and industrial electrical installations.
Certifications & Compliance
- UL Listed
Technical Specifications
- Product Type: Cover
- Product Size: 4 in
- Product Shape: Square
- Drawn or Welded: Welded
- Series: BLOCK-LOC® Series
- Certified Listed: UL Listed
Typical Applications
- Masonry and Concrete Block Wall Electrical Installations
- 2-Gang Device Cover Applications
- Tile-Faced Wall Electrical Systems
- Commercial and Institutional Construction
- BLOCK-LOC Series Box and Cover Coordination
Why RACO?
RACO's BLOCK-LOC Series is purpose-built for masonry and tile wall construction, and the 796B carries that design forward with welded construction and a precise 4 in. square, 2 in. deep profile sized for 2-gang installations. As a UL Listed product, it gives electrical contractors a dependable, code-compliant cover for demanding commercial and institutional block-wall projects.
"Manufacturer Resources
Spec Sheet
Product Specs
- list_batch:
- RACO-20260916
- Product Type:
- Tile Cover
- Product Size:
- 4 in
- Product Shape:
- Square
- Drawn or Welded:
- Welded
- Series:
- BLOCK-LOC® Series
- Certified Listed:
- UL Listed
- Department:
- Electrical
- Product Subgroup:
- Box Covers
- Product Group:
- Boxes & Enclosures
RACO 796B – Frequently Asked Questions
1) Will the RACO 796B tile cover fit a 4 inch square box in a block wall?
Yes. The RACO 796B is a 4 in. square cover sized to match standard 4 in. square box and device openings, and it is built for masonry and concrete block and tile-faced wall installations. It raises the device opening 2 in. off the box, which is what lets it bridge the block face out to the finished tile surface.
2) Is the 796B a one-gang or two-gang cover?
Two-gang. The 796B covers dual device openings, so you get two switches, two receptacles, or a switch and receptacle in one 4 in. square box location. If you only need a single device at that opening, you want the one-gang version of the BLOCK-LOC tile cover instead.
3) Why pick a 2 inch deep tile cover instead of a flat or shallow box cover?
Depth is about where the finished wall face lands. A flat cover closes a box flush with the block, which leaves the device buried once tile or a veneer goes on top. The 796B's 2 in. deep profile extends the device opening out to that finished face and adds interior room for the devices and splices in the box. Measure from the box face to the finished tile surface and match the cover depth to it.
4) What part number do I order for the RACO 2-gang 4 inch square tile cover, 2 inch deep?
Order RACO 796B. That is the manufacturer part number for the BLOCK-LOC Series 4 in. square, 2 in. deep, 2-gang tile cover. The depth and gang count are built into that single number, so there are no suffixes to specify.
5) Does the 796B work with RACO BLOCK-LOC boxes already set in the wall?
Yes. The 796B is part of RACO's BLOCK-LOC Series and is designed to pair with BLOCK-LOC series boxes and devices for a flush finish. If your block-wall boxes are from that series, the cover coordinates with them directly.
6) Is the RACO 796B welded or drawn, and does that matter on a jobsite?
Welded. The seams on the 796B are welded rather than formed from a single drawn piece, which gives a rigid cover that holds its shape through block-wall handling and grout work. Welded covers are the usual call for commercial and institutional block construction.
7) Where can I get the manufacturer spec sheet for the RACO 796B?
RACO publishes a spec sheet for the 796B at https://hubbellcdn.com/specsheet/RACO-796B-SPEC-EN.pdf. That is the document to attach when a submittal package needs the cover's dimensioned drawing and listing information.
