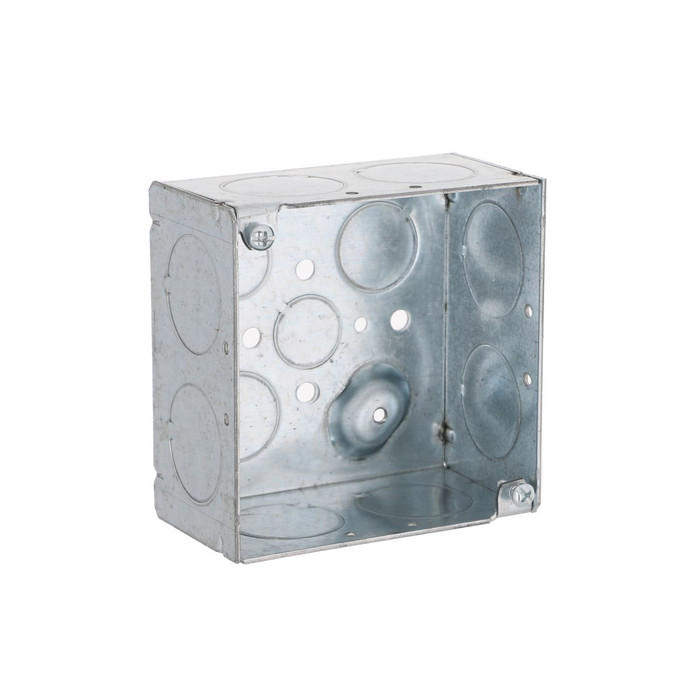

RACO 8233 4 in. Square Steel Box, Welded, 2-1/8 in. Deep
The RACO 8233 is a 4 in. square welded steel box, 2-1/8 in. deep, engineered for conduit wiring systems used throughout commercial and industrial electrical installations. This UL Listed box ships with no mounting bracket and is factory-punched with two 3/4 in., two 1/2 in., and eight 1 in. knockouts to accommodate multiple conduit entries in a single enclosure. The welded steel body delivers a rigid, one-piece construction that stands up to the demands of raceway and junction box applications where dependable mechanical strength is required.
Key Features
- Trade Size: 4 in. square box body sized for standard conduit and junction box installations.
- Durable Construction: Welded steel body forming a rigid, one-piece enclosure that resists deformation.
- Depth: 2-1/8 in. deep, providing ample interior wire fill capacity.
- Knockouts: Two 3/4 in., two 1/2 in., and eight 1 in. knockouts for flexible conduit entry configurations.
- Bracket Type: No Bracket, suited for direct conduit-supported mounting.
- Wiring System: Designed for use with conduit wiring systems.
- Shape: Square steel box configuration.
Certifications & Compliance
- UL Listed
Technical Specifications
- Product Type: Steel Box
- Product Size: 4 in
- Product Depth: 2.125 in
- Product Shape: Square
- Drawn or Welded: Welded
- Bracket Type: No Bracket
- Wiring System: Conduit
- Knockouts: 1/2 in;3/4 in;1 in
- Certified Listed: UL Listed
Typical Applications
- Commercial and Industrial Electrical Installations
- Conduit and Raceway Systems
- Junction and Pull Box Applications
- New Construction and Renovation Wiring
Why RACO?
RACO builds the 8233 with welded steel construction for long-term durability in demanding conduit installations. The UL Listed rating provides assurance of code-compliant performance, and the pre-punched two 3/4 in., two 1/2 in., and eight 1 in. knockouts simplify conduit terminations on the job site. Choose RACO for reliable, professional-grade electrical boxes built to perform in commercial and industrial raceway systems.
Manufacturer Resources
Spec Sheet
Product Specs
- list_batch:
- RACO-20260916
- Product Type:
- Outlet Box
- Product Size:
- 4 in
- Product Depth:
- 2.125 in
- Product Shape:
- Square
- Drawn or Welded:
- Welded
- Bracket Type:
- No Bracket
- Wiring System:
- Conduit
- Knockouts:
- 1/2 in;3/4 in;1 in
- Certified Listed:
- UL Listed
- Department:
- Electrical
- Product Subgroup:
- Electrical Boxes
- Product Group:
- Boxes & Enclosures
RACO 8233 – Frequently Asked Questions
1) Will the RACO 8233 4 in. square box work for conduit runs with 1 in. EMT?
Yes. The 8233 comes factory-punched with eight 1 in. knockouts, plus two 3/4 in. and two 1/2 in., so a 1 in. conduit run terminates without drilling. It's built specifically for conduit wiring systems, not cable.
2) How do I mount the RACO 8233 square box? Does it have a bracket?
No bracket. The 8233 ships as a bare welded box, so it is supported by the conduit entering it or fastened through the box itself. If you need a box that nails or screws to a stud face, order a bracketed version instead.
3) What's the difference between a welded box and a drawn box, and which is the RACO 8233?
The 8233 is welded. A welded box is formed from sheet and seam-welded, which allows the deeper 2-1/8 in. body and more knockout positions; a drawn box is pressed from one piece with no seams and is typically shallower with fewer entries. For conduit work with multiple terminations, welded is the usual choice.
4) Does the RACO 8233 come with a cover or a plaster ring?
The box body only. A 4 in. square box needs a separate flat blank cover, a device cover, or a raised plaster ring to suit the device and wall finish, and those are ordered separately. Any standard 4 in. square cover or ring fits the box.
5) Can I use the RACO 8233 as a pull box for a conduit run that changes direction?
That's one of its intended uses. The 2-1/8 in. depth and twelve total knockouts in three trade sizes give you room to land multiple conduits and pull conductors through at a junction or directional change in a raceway system.
6) What is the manufacturer part number for the RACO 4 in. square 2-1/8 in. deep welded box?
RACO 8233. That's the number to quote for the 4 in. square, 2-1/8 in. deep welded steel box with no bracket.
