RACO 857 4-11/16 in. Square Exposed-Work Cover, 2-GFCI/2-Decorator Device Configuration
Model: RACO-857
RACO 857 4-11/16 in. Square Exposed-Work Cover, 2-GFCI/2-Decorator Device ConfigurationThe RACO 857 is a 4-11/16 in. square cover designed for exposed-work electrical box installations where a device...
RACO
$15.39

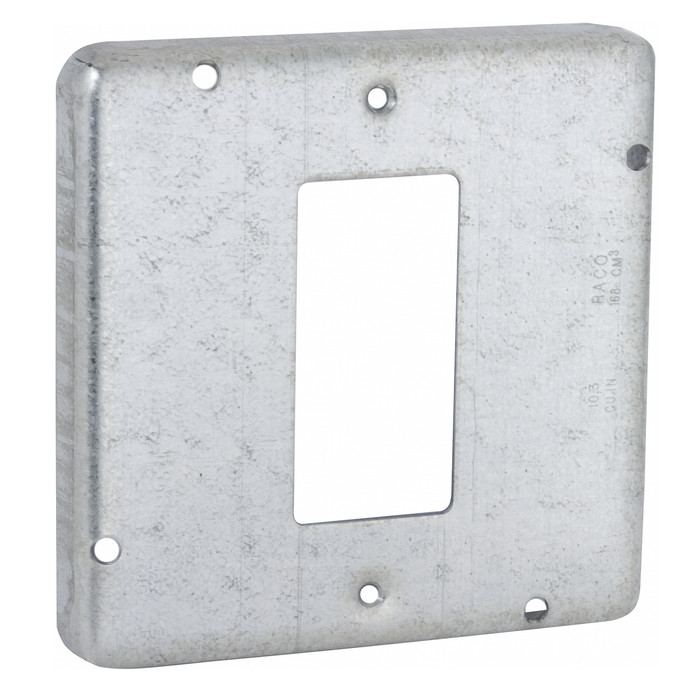

RACO 4-11/16 in. Square Cover for GFCI and Decorator Devices
The RACO 4-11/16 in. square cover is engineered for exposed work installations, providing a clean finish over GFCI or decorator-style devices mounted in 4-11/16 in. square boxes. Its square profile matches standard box openings for a secure, flush fit, and the cover is cULus Listed to support code-compliant electrical installations. This cover mounts directly over exposed device boxes to deliver a finished, professional appearance while keeping GFCI or decorator switches and receptacles properly protected. Electricians and contractors rely on RACO covers for dependable protection and a professional finished appearance on exposed device installations.
Key Features
- Size: 4-11/16 in. dimension matches standard 4-11/16 in. square boxes for a precise, flush fit.
- Square Shape: Square cover profile designed to align with 4-11/16 in. square outlet and device boxes.
- GFCI/Decorator Configuration: Configured to accommodate GFCI receptacles or decorator-style devices in exposed work applications.
- Exposed Work Design: Built for surface-mounted, exposed work installations where the cover remains visible after installation.
- Cover Type: Functions as a device cover, completing the box assembly and protecting wiring connections.
- Listing: cULus Listed for use in code-compliant commercial and residential electrical systems.
Certifications & Compliance
- cULus Listed
Technical Specifications
- Product Type: Cover
- Product Size: 4-11/16 in
- Product Shape: Square
- Configuration: GFCI
- Certified Listed: cULus Listed
Typical Applications
- Exposed Work Outlet Box Installations
- GFCI Receptacle Cover Applications
- Decorator-Style Device Installations
- Commercial and Residential Electrical Wiring
- Surface-Mounted Device Box Finishing
Why RACO?
RACO square covers are built to fit 4-11/16 in. square boxes precisely, giving installers a reliable, code-compliant finish for GFCI and decorator device applications. With cULus Listing, this RACO cover supports safe, standards-compliant exposed work installations in both commercial and residential settings. Backed by RACO's reputation for durable device box components, this cover offers electricians a consistent, code-compliant option for finishing exposed installations. Choosing RACO means choosing hardware designed for consistent fit and dependable performance on the job site.
Manufacturer Resources
Spec Sheet
Product Specs
- list_batch:
- RACO-20260916
- Product Type:
- Raised Device Cover
- Product Size:
- 4-11/16 in
- Product Shape:
- Square
- Configuration:
- GFCI
- Certified Listed:
- cULus Listed
- Department:
- Electrical
- Product Subgroup:
- Box Covers
- Product Group:
- Boxes & Enclosures
RACO RACO856 – Frequently Asked Questions
1) Will the RACO 856 cover fit a 4-11/16 in. square box?
Yes. The RACO 856 is a 4-11/16 in. square cover sized to match the opening on standard 4-11/16 in. square outlet and device boxes, so it sits flush on the box ears. It will not work on a 4 in. square box (commonly called a 1900 box) or on a 4 in. octagon, both of which need a cover sized to those footprints.
2) Can I use the RACO 856 for a decorator rocker switch, or is it GFCI only?
Both. The 856 carries a GFCI configuration opening, and because GFCI receptacles and decorator (rocker) devices share the same rectangular face dimensions, the same opening takes a decorator switch or a decorator-style receptacle. What it will not take is a standard duplex receptacle with the two figure-eight openings, or a toggle switch.
3) Is this RACO cover suitable for surface-mounted exposed conduit work, or is it a flush wall plate?
It is an exposed work cover, not a flush wall plate. The 856 mounts directly on a surface-mounted 4-11/16 in. square box and stays visible after installation, which is what you want on exposed conduit runs in garages, mechanical rooms, warehouses and shops. If the box is recessed in finished drywall, you want a flat flush plate instead.
4) Is the RACO 856 cover UL listed for commercial jobs?
The 856 is cULus Listed, which covers both US and Canadian requirements and is what an inspector looks for on commercial and residential device box work.
5) Do I need anything else besides the cover to finish a GFCI in an exposed 4-11/16 square box?
The cover completes the box assembly over the device and protects the wiring connections, but the GFCI receptacle or decorator device itself is a separate item, as is the box. Mounting screws for the device to the cover and the cover to the box are standard 6-32 hardware on this style of exposed work cover.
6) I'm standardizing GFCI covers across a building with 4-11/16 square boxes. Does the RACO 856 come in more than one version?
The 856 is a single part, one model number, so every unit you order is the same 4-11/16 in. square GFCI/decorator cover. There is no finish or size choice to track, which makes it straightforward to spec repeat quantities for a whole facility and keep the look consistent across openings.
7) What is the exact RACO part number to order this GFCI square cover, and where can I get the spec sheet?
Order it as RACO 856. The manufacturer publishes a spec sheet for it at https://hubbellcdn.com/specsheet/RACO-856-SPEC-EN.pdf, which is the document to attach when a submittal package calls for cut sheets.
