RCI 975 Series Illuminated Exit Pushbutton with LED Green Lens and Tamper-Resistant Design

RCI 975 Series Illuminated Exit Pushbutton with LED Green Lens and Tamper-Resistant Design

Professional LED-Illuminated Exit Control Solution

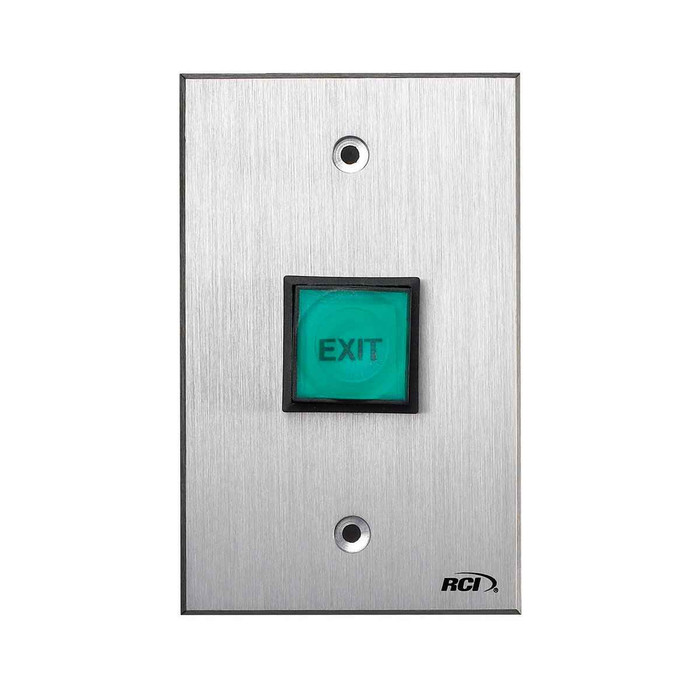

The RCI 975 Series Illuminated Exit Pushbutton delivers reliable access control with permanent LED illumination and tamper-resistant construction. This 1" square pushbutton features a green lens with LED illumination that meets code requirements for internally illuminated push buttons. Available in both standard 3"W and narrow 1-5/8"W plate sizes, the 975 Series accommodates installation on most door frames without requiring a surface box. Compatible with 12 and 24VAC/VDC power options with momentary (2-SPST) or time-delay (DPDT) switch configurations.

Professional Features & Benefits

• Dual Plate Size Options: Standard 3"W x 4-3/4"H and narrow 1-5/8"W x 4-3/4"H configurations accommodate various door frame installations without surface boxes.
• Permanent LED Illumination: 1" square green lens with LED lighting meets code requirements for internally illuminated push buttons in access control applications.
• Flexible Power Options: 12 and 24VAC/VDC compatibility provides versatile integration with existing access control systems.
• Tamper-Resistant Construction: Extruded aluminum 1/4" plate with beveled edges and stainless steel tamper-proof screws with spanner bit for enhanced security.
• Switch Configuration Options: Momentary (2-SPST) or time-delay (DPDT) switches available for customized access procedures and timing requirements.
• Professional Finish Options: Available in Brushed Anodized Aluminum (28) or Brushed Anodized Dark Bronze (40) finishes for architectural coordination.
• Compatible Accessories: Optional components including 9SURBOX surface-mount box, TD30 30-second fixed timer, and TD30A adjustable 0-30 second timer for extended configurations.
• Manufacturer Warranty: 2 Year Limited Warranty for added confidence and protection.

Technical Specifications

• Commercial/Residential: Commercial
• Department: Door Hardware
• Electronic: Yes
• Product Category: Electronic Access Controls
• Product Group: Electronic Access Controls
• Product Subgroup: Sensors, Switches, Relays and Timers
• Product Type: Switches
• Series: 975 Series
• Subcategory: Push Buttons Switches

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm voltage (12 or 24VAC/VDC) and current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including switch type (momentary or time-delay) per application requirements.
6. Restore power and test all functions including normal operation, LED illumination, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Handicapped Accessible Areas
• Vandal-Prone Environments
• Vestibules and Storefront Applications
• Industrial and Commercial Facilities
• Healthcare Institution Access Control
• Educational Facility Safety Systems
• Emergency Exit Compliance Systems

Tamper-Resistant Design

The RCI 975 Series features extruded aluminum construction with beveled edges and includes stainless steel tamper-proof screws with spanner bit for enhanced security in high-risk environments. The 1/4" thick aluminum plate provides durability against vandalism while maintaining professional appearance.

Why Choose RCI Quality?

RCI 975 Series pushbuttons deliver professional-grade reliability with extruded aluminum construction and permanent LED illumination rated for demanding commercial applications. The 2 Year Limited Warranty and tamper-resistant design with stainless steel hardware ensure dependable performance in high-traffic and security-sensitive environments. Engineered for code compliance and architectural integration where reliable access control is essential.
