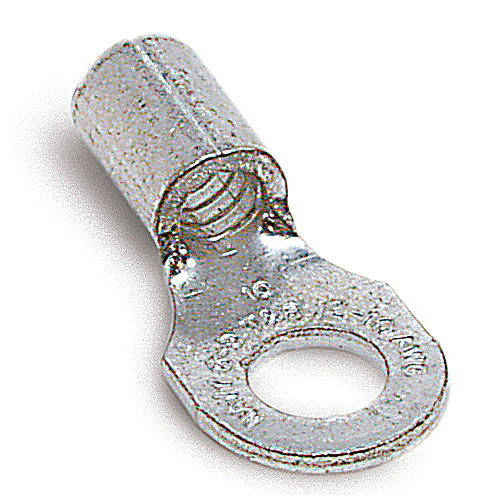

Ring Terminal
Certifications
- UL
- CSA
Features
- These non-insulated ring terminals are made of electrolytic copper for high conductivity. They can be installed with crimping tools having a single indentor or double indentor (recommended for solid wire). Serrated barrel increases grip on wire.
Manufacturer Resources
Product Specs
- A Inches :
- 0.75
- Alternate Package Qty:
- B86
- Application Tools:
- WT110M, WT111M, WT112M, WT2000, ERG4002
- B Inches :
- 0.31
- C Inches :
- 0.27
- Color:
- Metallic
- Finish:
- Electro Tin-Plated
- Flammability Rating:
- UL 94 V-0
- Inner Package:
- 100
- Insulation Type:
- Non-Insulated
- M Inches :
- 0.59
- Material:
- Copper
- Order Multiple:
- 100
- Outer Package:
- 500
- Package Height:
- 8.7
- Package Length:
- 15
- Package Type:
- Standard
- Package Width:
- 9.4
- Product Group:
- Electrical
- Recommended Tool:
- ERG4002, ERG4005
- Rohs Compliance:
- Yes
- Stock Thickness:
- 0.03
- Stud Size:
- #8
- T B Sold In Uom:
- Each
- T B Weight Per Uom:
- 2.5 lbs. per 1000
- Temperature Rating:
- 150°C
- Terminal Series:
- B
- Voltage Rating:
- 600V
- Wire Range:
- 18-14
- parent sku:
- TB-B14-8
