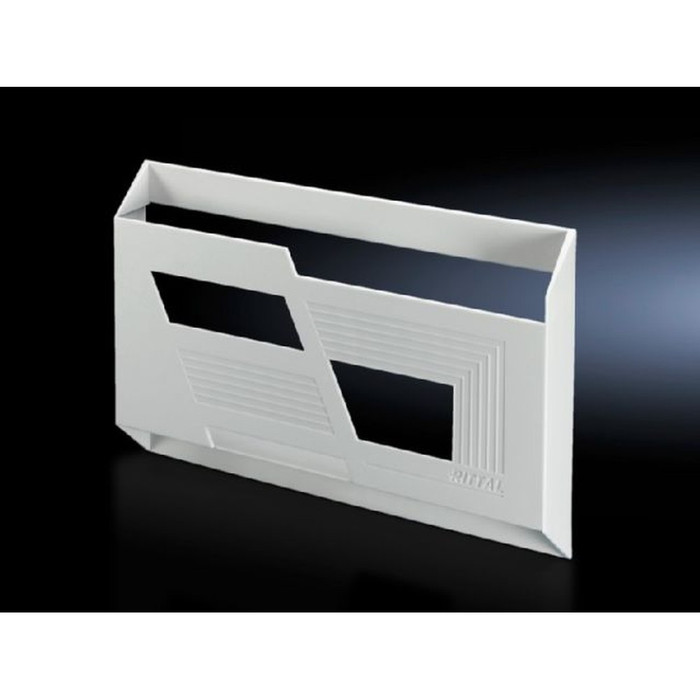

Rittal 2513000 Self-Adhesive Polystyrene Wiring Plan Pocket, DIN A3

The Rittal 2513000 Wiring Plan Pocket is a door-mounted document holder designed to keep wiring diagrams and panel documentation close at hand inside electrical enclosures and control cabinets. Molded from halogen-free polystyrene and fitted with integrated self-adhesive fastening strips, it attaches directly to an inside door surface with no drilling, screws, or extra hardware required. The pocket provides a clearance of 438 mm wide by 286 mm high by 45 mm deep, sized to hold prints in DIN A3 landscape format, with a finish similar to RAL 7035 for a clean match to most enclosure interiors.

Key Features

  • Clearance Dimensions: 438 mm width x 286 mm height x 45 mm depth provides ample room to store a mounted wiring plan without interfering with door closure.
  • Durable Construction: Molded from halogen-free polystyrene for safer, code-conscious use inside electrical panels and enclosures.
  • Self-Adhesive Mounting: Integrated self-adhesive fastening strips allow quick, tool-free attachment to an inside door surface.
  • DIN A3 Landscape Capacity: Sized to hold wiring plans and panel documentation printed in DIN A3 landscape format for quick reference during service and inspection.
  • Finish: Color similar to RAL 7035 gives the pocket a clean, neutral appearance that blends with most enclosure interiors.
  • Compact Packaging: Supplied as a single unit (1 pc) weighing 0.326 kg per package for easy handling, shipping, and stocking.

Certifications & Compliance

  • Sweden E-Number: E7282548

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Typical Applications

  • Electrical Enclosure and Panel Door Documentation
  • Control Panel and Switchgear Cabinets
  • Industrial Automation and Machine Building Enclosures
  • Retrofit and New Enclosure Installations
  • Service, Inspection, and Maintenance Reference Storage

Why Rittal?

Rittal builds enclosure accessories around practical, code-conscious details, and the 2513000 Wiring Plan Pocket is no exception, using halogen-free polystyrene and a tool-free self-adhesive mount to keep critical wiring documentation organized and accessible. Its DIN A3 landscape sizing and RAL 7035-matched finish make it a clean, professional fit for panel builders and maintenance teams who need fast access to accurate wiring plans.

Manufacturer Resources

Rittal Product Catalog

Product Specs

Product Type:
Wiring Plan Pocket
Configuration:
DIN A3 Landscape
Product Material:
Polystyrene
Product Color:
Gray (RAL 7035)
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Subgroup:
Enclosure Accessories

Rittal 2513000 – Frequently Asked Questions

1) Will the Rittal 2513000 wiring plan pocket fit a standard A3 print, and how much room does it need inside the door?
The 2513000 holds prints in DIN A3 landscape format, and its clearance is 438 mm wide by 286 mm high by 45 mm deep. That 45 mm depth is the number to check before you commit: it has to clear the door-mounted components and still let the door shut, so measure from the inside door face to the nearest device on the mounting plate.
2) Does mounting this Rittal document pocket require drilling holes in my enclosure door?
No drilling. The 2513000 comes with integrated self-adhesive fastening strips, so it sticks straight to the inside door surface with no screws, rivets, or extra hardware. That matters on a sealed or rated enclosure where you do not want to put new penetrations in the door. Clean and degrease the surface first so the adhesive takes.
3) Is the Rittal 2513000 plan pocket halogen-free for use inside electrical panels?
It is molded from halogen-free polystyrene, which is what panel builders working to low-smoke, halogen-free material requirements are looking for in anything added inside a control cabinet. The material is polystyrene, not metal or steel sheet.
4) What part number do I order for the Rittal A3 landscape wiring plan pocket, and how is it packaged?
Order Rittal part number 2513000. It ships as a single piece, one pocket per package, at 0.326 kg. If you are kitting out multiple panels, order one per door.
5) Can I add a wiring plan pocket to an enclosure that is already installed and energized?
Yes, the 2513000 is a retrofit-friendly accessory. Because it adheres to the inside of the door rather than bolting through it, there is no drilling, no metal filings, and nothing to fish out of the panel, so it suits adding documentation storage to existing switchgear and automation cabinets as well as new builds. You still need the 45 mm depth of door-swing clearance.
6) Should I pick an A3 or a smaller pocket for my panel schedules?
Size it to the print, then to the door. The 2513000 is the A3 landscape version and needs a 438 mm wide by 286 mm high footprint on the inside of the door; on a compact wall-mount enclosure that will not fit, and a smaller A4 pocket is the one to look at. Choose A3 where you are storing full wiring diagrams and panel schedules that a technician has to read on site rather than a single-page label sheet.
7) Will this document pocket match the gray interior of my existing control cabinets?
The color is gray, similar to RAL 7035, which is the standard interior and exterior shade on most industrial enclosures, so it blends rather than standing out. Useful if you are standardizing document pockets across a bank of panels and want them to look like factory equipment.
