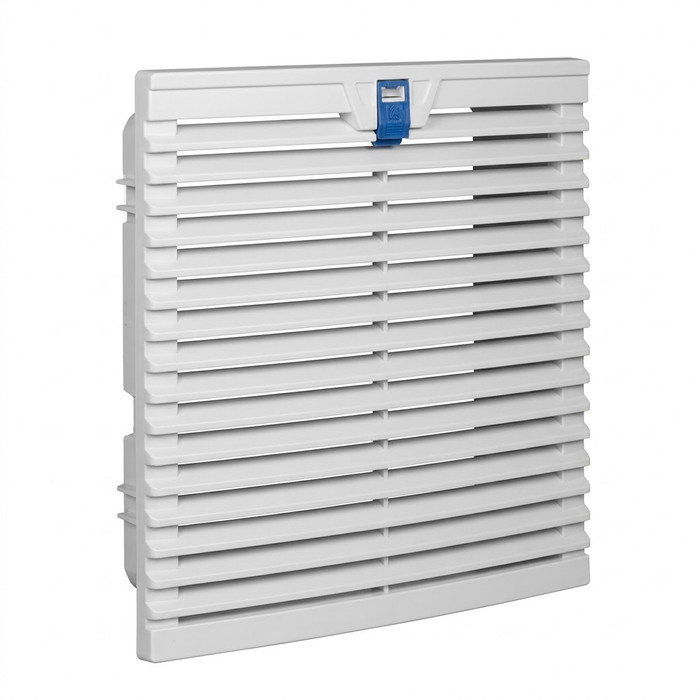

Rittal 3243200 Outlet Filter for Enclosure Ventilation, ABS

Rittal 3243200 Outlet Filter for Enclosure Ventilation, ABS

(No reviews yet) Write a Review

Model: 3243200

In Stock (leaves warehouse same day if ordered before 3pm ET)

$96.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Rittal Outlet Filter for Enclosure Ventilation, ABS

The Rittal Outlet Filter for Enclosure Ventilation is an ABS outlet filter designed for installation in the upper and lower sections of an enclosure to enable ventilation by convection. It is suitable for Rittal Model No. SK 3243.1xx/3243.5xx/3244.1xx/3244.5xx/3245.5xx enclosures and ships complete with a fleece filter mat. Depending on the filter configuration used, the assembly can be rated up to IP56 to IEC/EN 60 529 and NEMA Type 4X, making it a versatile option for both standard indoor panels and demanding wash-down or outdoor environments. The molded ABS housing is finished in RAL 7035 to match Rittal enclosure lines.

Key Features

  • Convection Ventilation: Installs in the upper and lower sections of the enclosure to enable ventilation by natural convection, helping regulate internal temperature.
  • Durable Construction: Molded from ABS for a lightweight, corrosion-resistant outlet filter housing.
  • Supply Includes: Outlet filter housing and fleece filter mat.
  • Protection Rating (IEC/EN 60 529): IP54 with fleece filter/folded filter, IP55 with folded filter and absorber mat, IP56 with fleece filter/folded filter and hose-proof hood.
  • NEMA Rating: Type 12 with fleece filter/folded filter; Type 3, 3R, 4, 4X with fleece filter/folded filter and hose-proof hood.
  • Configurable Accessories: Optional folded filter, absorber mat, and hose-proof hood accessories allow the same outlet filter to be adapted to higher protection ratings as needed.
  • Compatibility: Suitable for Rittal Model No. SK 3243.1xx/3243.5xx/3244.1xx/3244.5xx/3245.5xx.
  • Finish: RAL 7035 color housing.
  • Packaging: Supplied 1 pc(s) per packaging unit at 0.84 kg.

Certifications & Compliance

  • IP54, IP55, IP56 rated to IEC 60 529 and EN 60 529 (depending on filter configuration)
  • NEMA Type 12, 3, 3R, 4, 4X rated (depending on filter configuration)

Technical Specifications

  • Material: ABS

Typical Applications

  • Enclosure Ventilation by Convection
  • Industrial Control Panel Enclosures
  • Outdoor and Wet-Location Enclosure Installations
  • Panelboard and Equipment Enclosure Cooling
  • Retrofit Filtration for SK 3243/3244/3245 Series Enclosures

Why Rittal?

Rittal outlet filters are molded from durable ABS and rated to recognized IEC/EN 60 529 and NEMA protection standards, giving panel builders a reliable way to manage enclosure ventilation without compromising ingress protection. Paired with the included fleece filter mat, this filter helps maintain the protection rating of Rittal SK 3243/3244/3245 series enclosures while supporting consistent airflow by convection. Choosing genuine Rittal accessories keeps the enclosure system's overall protection rating and warranty coverage intact.

Manufacturer Resources

Rittal Product Catalog

Product Specs

Product Type:
Enclosure Climate Control
Product Material:
ABS
Product Color:
RAL 7035
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Subgroup:
Enclosure Accessories

Rittal 3243200 – Frequently Asked Questions

1) Will adding this outlet filter break my enclosure's NEMA 4X rating?
No, provided you use the right filter configuration. The 3243200 outlet filter is rated NEMA Type 12 with a fleece filter or folded filter, and NEMA Type 3, 3R, 4 and 4X when a hose-proof hood is added to the fleece or folded filter. For a 4X wash-down or outdoor panel, you must order the hose-proof hood separately; the filter ships with the fleece filter mat only.
2) What comes in the box with the Rittal 3243200, and what do I need to buy separately?
Supply includes the ABS outlet filter housing and a fleece filter mat, one piece per packaging unit. The folded filter, absorber mat and hose-proof hood are separate accessories. You only need them if you are chasing IP55, IP56 or NEMA 3/3R/4/4X; the as-shipped fleece configuration gives IP54 and NEMA Type 12.
3) Do I need a fan with this, or does the Rittal outlet filter work on its own?
It works without a fan. The 3243200 is an outlet filter for ventilation by convection: you install units in the upper and lower sections of the enclosure and warm air rises out the top while cooler air draws in at the bottom. If your heat load is higher than natural convection can carry, you want a powered filter fan instead, not this passive outlet.
4) What IP rating can I get from the Rittal 3243200 outlet filter?
Three levels, to IEC/EN 60 529: IP54 with a fleece filter or folded filter, IP55 with a folded filter plus absorber mat, and IP56 with a fleece or folded filter plus a hose-proof hood. The rating you land on is decided by which filter media and hood you fit, not by the housing itself.
5) Do I need two of these per enclosure?
Convection needs a path in and a path out, and this filter is specified for installation in the upper and lower sections of the enclosure. Plan on a low position for air entry and a high position for air exit; a single opening will not move air by convection.
6) Can I retrofit the 3243200 outlet filter to an SK enclosure already in service?
Yes. Retrofit filtration on SK 3243, 3244 and 3245 series enclosures is one of its stated applications, so an installed panel running hot can be vented by fitting outlet filters top and bottom rather than replacing the enclosure.
7) Will the Rittal 3243200 filter housing match the color of my existing Rittal panels?
The housing is molded ABS finished in RAL 7035, the light grey used across Rittal enclosure lines, so it blends with standard SK enclosures rather than standing out.
8) Is an ABS outlet filter suitable for a corrosive or outdoor location?
ABS is lightweight and corrosion resistant, which is why the housing is molded from it rather than sheet steel. For outdoor or wash-down duty the limiting factor is the filter configuration, not the plastic: add the hose-proof hood to reach NEMA 3R/4/4X and IP56.
