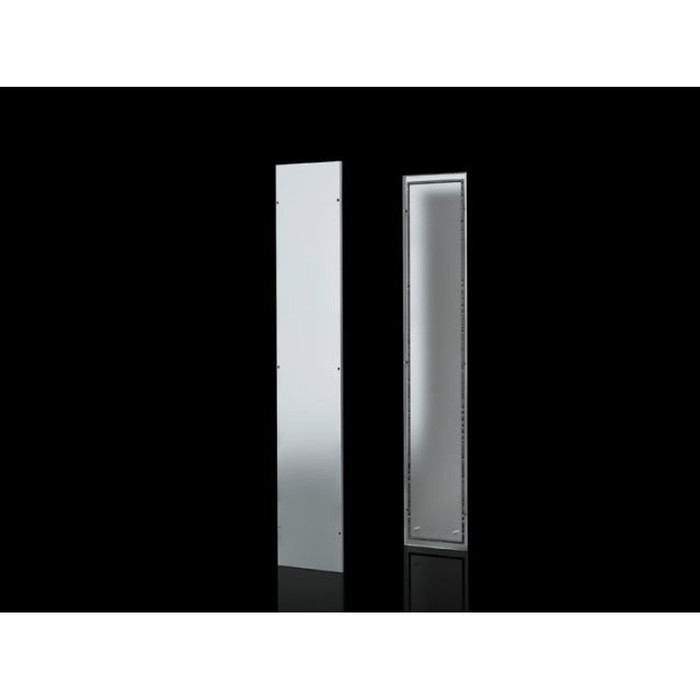

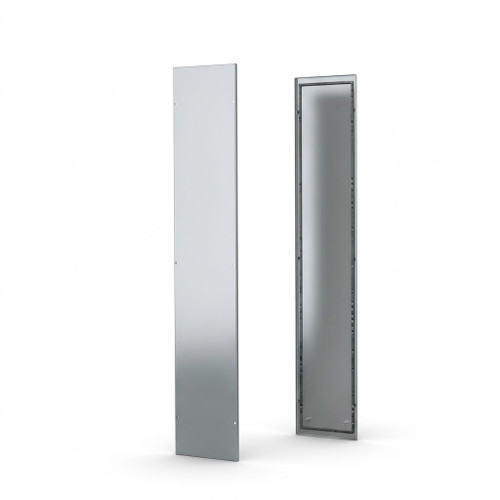

Rittal 8108235-4 TS Series Screw-Fastened Side Wall Panel, Carbon Steel
The Rittal 8108235-4 TS Series Screw-Fastened Side Wall Panel is a screwable enclosure accessory built from Carbon Steel with a Powder-Coated RAL 7035 finish for a clean, consistent appearance that matches Rittal TS enclosure systems. Designed for screw-fastened installation, this side wall panel supports an IP 55 degree of protection for panel and enclosure systems used in industrial and commercial electrical installations. The panel is available in multiple enclosure sizes (H × D) to fit compatible TS platforms, including 1200 × 800 mm, 1800 × 400 mm, 2000 × 800 mm, and 2200 × 600 mm configurations. Electrical contractors and panel builders rely on properly rated side wall panels like this one to keep enclosure interiors protected from dust, moisture, and physical intrusion while maintaining a professional, uniform finish across the installation.
Key Features
- Multiple Enclosure Sizes: Available in H × D configurations of 1200 × 800 mm, 1800 × 400 mm, 2000 × 800 mm, and 2200 × 600 mm to fit compatible Rittal TS enclosure platforms.
- Durable Construction: Fabricated from Carbon Steel for rugged, long-lasting enclosure performance in demanding industrial and commercial environments.
- Screw-Fastened Installation: Screwable connection type allows secure, straightforward mounting to compatible Rittal enclosure systems without specialized tooling.
- Powder-Coated Finish: Powder-coated for a durable, corrosion-resistant, uniform appearance that helps extend service life in the field.
- RAL 7035 Color: Finished in standard RAL 7035 to match Rittal enclosure lines for a consistent, professional installation appearance.
- IP 55 Protection: Supports an IP 55 degree of protection against dust and low-pressure water jets when installed as part of a compliant enclosure system.
Certifications & Compliance
- IP 55 Rated
Technical Specifications
- Product Type: Side Panel
Typical Applications
- Enclosure and Panelboard Wall Customization
- Industrial Control Panel Systems
- Commercial Electrical Enclosure Expansion
- Screw-Fastened Panel Assembly and Replacement
- Renovation and New Enclosure Builds
Why Rittal?
Rittal TS enclosure components are engineered for demanding industrial and commercial electrical environments where consistent fit, finish, and protection matter. This Carbon Steel side wall panel's Powder-Coated RAL 7035 finish and IP 55-rated protection make it a reliable choice for professionals building durable, code-compliant enclosure systems across multiple TS platform sizes. Choosing genuine Rittal side wall panels helps panel builders and electrical contractors maintain system integrity, streamline enclosure assembly, and deliver a uniform, professional result across every installation.
Manufacturer Resources
Rittal Product Catalog
Product Specs
- Product Finish:
- Powder-Coated
- Product Material:
- Carbon Steel
- Product Color:
- RAL 7035
- Product Type:
- Enclosure Door & Panel
- Department:
- Electrical
- Product Group:
- Boxes & Enclosures
- Connection Type:
- Screw-Fastened
- Standards:
- IP 55
- Product Subgroup:
- Enclosure Accessories
Rittal 8184235 – Frequently Asked Questions
1) Which Rittal TS enclosure sizes does the 8108235 side wall panel cover?
The TS Series screw-fastened side wall panel comes in four height x depth sizes, each with its own part number: 1200 x 800 mm (8175235), 1800 x 400 mm (8184235), 2000 x 800 mm (8108235), and 2200 x 600 mm (8126235). You order by the enclosure's height and depth, since a side panel closes the H x D face of the frame. Measure the bay you are closing in and match it exactly.
2) Does a Rittal screw-fastened side panel keep the enclosure at IP 55?
Yes. The TS side wall panel supports an IP 55 degree of protection when it is fitted as part of a compliant enclosure system, meaning dust protected and protected against low pressure water jets. The rating is a system property, so the gasketing and all other closures on the frame have to be intact for the enclosure as a whole to hold IP 55.
3) Can I use this as a replacement side panel on a damaged Rittal TS enclosure?
Yes, replacement of a screw-fastened panel is one of the intended uses. Pull the part number off the size you need (1200 x 800, 1800 x 400, 2000 x 800, or 2200 x 600 mm H x D) so the new panel lands on the same frame profile, and reuse or replace the gasketing so the enclosure comes back to IP 55.
4) Screw-fastened versus clip or snap-on side panels for a Rittal TS bay suite - which should I use?
This is the screw-fastened type: the panel bolts to the TS frame, so it is the right choice where the side wall is a permanent closure on an end bay and you want a sealed, tamper-resistant joint that holds IP 55. It needs no special tooling, just hand tools. If you expect to pull side panels repeatedly for access between bays during service, a quick-release style panel is the better fit; for a finished end of a suite line-up, screw-fastened is what gets specified.
5) Will this Rittal side panel match the color of my existing TS enclosures?
The panel is powder-coated RAL 7035, the standard light grey used across Rittal TS enclosure lines, so it blends with existing TS bays and doors in that finish. If your enclosures were ordered in a custom or non-standard RAL, it will not match.
6) Is this a carbon steel or stainless side panel, and is it OK for a washdown area?
Construction is carbon steel with a powder-coated finish, which gives corrosion resistance for general industrial and commercial interiors and an IP 55 level of protection against dust and low pressure water jets. It is not stainless, so for chemical, food processing, or sustained washdown environments you want a stainless enclosure platform instead of a coated carbon steel panel.
7) I am joining two Rittal TS bays together - do I still need side panels on the inside faces?
No. A side wall panel closes an exposed H x D face of the frame, so on bays that are baied together you only panel the two outer ends of the line-up; the shared interior faces stay open for cross-wiring. Count your exposed ends, then order one panel per end in the matching height and depth.
8) Are the mounting screws included with the Rittal TS side wall panel?
What you are buying is the panel itself, a single side wall closure in powder-coated carbon steel for the TS frame. It is a screw-fastened design, so plan on having the TS frame fastening hardware on hand when the crew is on site rather than assuming loose screws ship in the carton.
