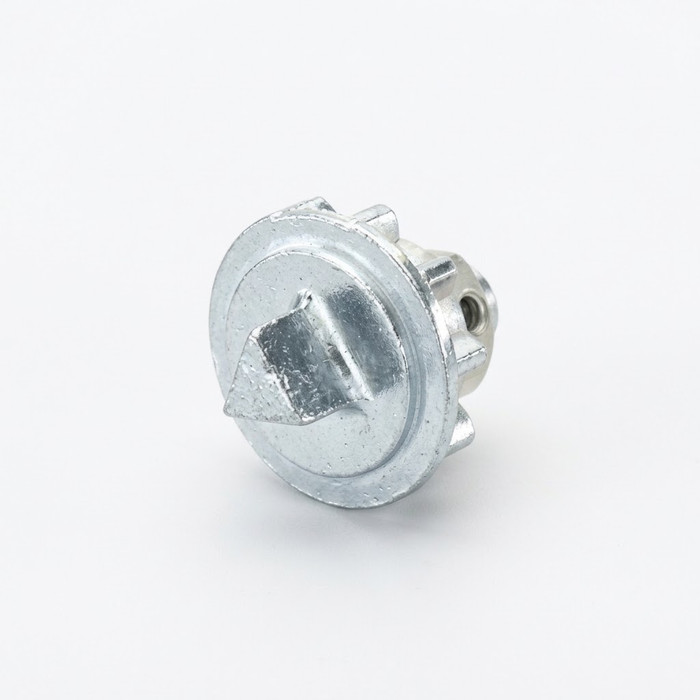

Rittal Die-Cast Zinc Enclosure Lock Insert
The Rittal Enclosure Lock Insert is a die-cast zinc replacement insert engineered for Rittal enclosure handle systems, available in 3 mm Double-Bit and Triangular insert types in Version F. It is designed to fit EL, TS, TS IT, VX SE, and IW enclosure types as well as PC enclosure doors, giving panel builders and maintenance teams a reliable way to secure electrical and industrial enclosures. Choosing between the two available lock insert types lets facilities standardize or vary access control across their enclosure fleet.
Key Features
- Lock Insert Options: Available in 3 mm Double-Bit and Triangular insert types in Version F, matching standard Rittal enclosure lock geometry for secure, code-compliant closure.
- Durable Construction: Die-cast zinc material provides a rugged, corrosion-resistant lock insert built for repeated use in industrial environments.
- Alternate Insert Compatibility: Shares its mounting profile with square, screwdriver, Daimler, and Fiat insert styles for flexible lock selection across a facility.
- Broad Enclosure Compatibility: Suitable for EL, TS, TS IT, VX SE, and IW enclosure types, plus PC enclosure doors, across the Rittal enclosure lineup.
- Handle System Compatibility: Installs in the Comfort handle TS for lock inserts, Comfort handle TS for padlock and lock inserts, Folding lever handle for lock inserts, Folding lever handle for padlock and lock inserts, and Mini-comfort handle for 3-part EL for lock inserts.
- Compact Packaging: Supplied 1 pc(s) per packaging unit at 0.02 kg, simplifying stocking, shipping, and replacement-part ordering for maintenance teams.
Technical Specifications
- Refer to manufacturer documentation for complete technical specifications.
Typical Applications
- Electrical Enclosure Door Security and Access Control
- TS, TS IT, and EL Series Enclosure Hardware Replacement
- Industrial Control Panel and Switchgear Enclosures
- VX SE and IW Enclosure Handle Systems
- Maintenance and Retrofit of Existing Lock Inserts
- Standardizing Lock Hardware Across Multiple Enclosure Types
Why Rittal?
Rittal enclosure hardware is built for consistent fit and function across its EL, TS, TS IT, VX SE, and IW enclosure lines, and this die-cast zinc lock insert continues that standard with a precise Version F configuration available in 3 mm Double-Bit or Triangular styles. Choosing a genuine Rittal lock insert helps ensure enclosures close securely and handle systems continue operating as designed, supporting dependable, code-compliant electrical panel installations for commercial and industrial facilities.
Manufacturer Resources
Rittal Product Catalog
Product Specs
- Product Type:
- Enclosure Lock & Handle
- Product Material:
- Zinc Die-Cast
- Department:
- Electrical
- Product Group:
- Boxes & Enclosures
- Configuration:
- Version F
- Product Subgroup:
- Enclosure Accessories
Rittal 8611120 – Frequently Asked Questions
1) Which Rittal enclosures does the 86111 lock insert fit?
The Rittal 86111 die-cast zinc lock insert fits EL, TS, TS IT, VX SE and IW enclosure types, plus PC enclosure doors. It is a Version F insert, so it matches the Version F lock geometry used across those Rittal lines.
2) What is the difference between the 3 mm double-bit and triangular Rittal 86111 lock inserts?
Only the key geometry differs. Part 8611160 is the 3 mm double-bit insert, part 8611120 is the triangular insert. Both are Version F die-cast zinc inserts with the same mounting profile, so pick whichever key your site already carries. Facilities that want one key across every panel should standardize on a single type; mixing the two is a way to separate access between panel groups.
3) Will the Rittal 86111 insert drop into my existing comfort handle?
Yes. The insert installs in the Comfort handle TS for lock inserts, the Comfort handle TS for padlock and lock inserts, the Folding lever handle for lock inserts, the Folding lever handle for padlock and lock inserts, and the Mini-comfort handle for 3-part EL for lock inserts. If your handle is one of those, the Version F insert is the correct replacement part.
4) Can I swap a Rittal double-bit insert for a square or screwdriver insert later?
Yes. The 86111 shares its mounting profile with square, screwdriver, Daimler and Fiat insert styles, so the same handle can take any of those geometries. That means you can change key type on a panel without replacing the handle itself.
5) Does the Rittal 86111 come with a key or the handle?
No. The 86111 is the lock insert only, supplied one piece per packaging unit. The handle assembly and the matching key or wrench are separate items, so order those alongside it if you are building a new door rather than replacing a worn insert.
6) How do I order the right Rittal 86111 insert by part number?
Specify by insert type: 8611120 for triangular, 8611160 for 3 mm double-bit. Both are Version F. Confirm the version stamped on the insert you are pulling out, since Rittal handles are built around a specific insert version.
7) Is a zinc lock insert durable enough for a plant floor or washdown area?
The 86111 is die-cast zinc, which gives a rugged, corrosion-resistant insert intended for repeated daily use in industrial environments. It is the same material Rittal uses across its enclosure lock hardware, so it holds up to the cycling a maintenance team puts on a control panel door.
