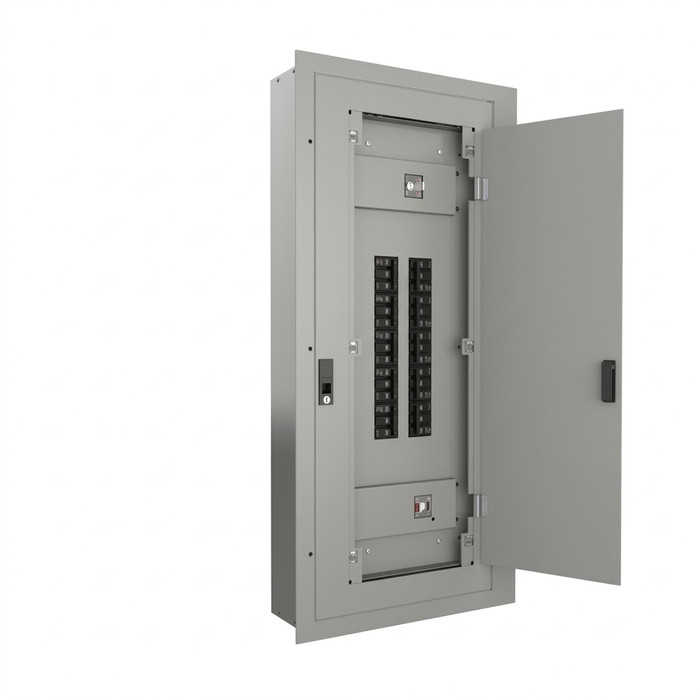

ABB RLP Flush Door-in-Door Panelboard Front Trim
The ABB RLP Flush Door-in-Door Panelboard Front Trim is built for flush-mount installation on ABB RLP series panelboards, giving installers a clean, finished cover plate with door-in-door (DID) access for routine breaker operation without removing the entire trim. Sized to fit panelboard openings up to 31.5" x 20", this front trim ships in a painted (PN) finish and is packaged 1 EA per unit for straightforward replacement or new-build installation.
Key Features
- Flush Mount Design: The trim mounts flush to the wall surface for a clean, finished panelboard appearance.
- Door-in-Door (DID) Access: Integrated door-in-door construction allows quick access to circuit breakers for switching or resetting without removing the full trim panel.
- RLP Series Compatibility: Engineered to fit ABB RLP series panelboard enclosures for a proper, secure fit.
- 31.5" x 20" Opening Size: Matches the panelboard interior dimensions of the corresponding RLP enclosure for precise alignment.
- Painted (PN) Finish: Factory-applied paint finish provides a durable, professional appearance suitable for commercial and industrial environments.
- Single-Unit Packaging: Supplied 1 EA per package for individual replacement or new panelboard installation.
Technical Specifications
- Country of Origin: Unknown – contact manufacturer for details.
- Packaging: 1 EA
- ARRA/BAA Compliance: Contact manufacturer for American Recovery and Reinvestment Act and Buy American Act compliance status.
Typical Applications
- Panelboard Front Trim Replacement
- Commercial and Industrial Electrical Panelboards
- Flush-Mount Panelboard Installations
- New Construction and Renovation Electrical Projects
- Facilities Requiring Frequent Breaker Access via Door-in-Door Design
Why ABB?
ABB engineers its RLP panelboard trims for a precise, secure fit and dependable long-term performance in demanding commercial and industrial electrical distribution systems. The door-in-door configuration on this front trim supports safer, more convenient breaker access, while the painted finish and flush-mount design deliver a professional, code-conscious installation. Choosing genuine ABB panelboard components helps ensure proper fit and continued compatibility with existing RLP series equipment.
Manufacturer Resources
Product Specs
- Product Type:
- Panelboard Front Trim
- Series:
- RLP
- Configuration:
- Door-in-Door
- Product Finish:
- Painted
- Department:
- Electrical
- Product Group:
- Wiring Devices
- Product Subgroup:
- Panelboards & Load Centers
ABB AF31FPN – Frequently Asked Questions
1) Is this a flush trim or a surface-mount panel cover?
Flush only. The AF31FPN mounts flush to the wall surface, which means the panelboard box is recessed into the wall and the trim laps onto the finished wall face. If your RLP enclosure is hung on the surface of the wall, a flush trim will not close the gap correctly and you need the surface-mount version of the RLP trim instead.
2) Can I use the AF31FPN as a direct replacement for a damaged panel cover?
Yes, that is one of its main uses. It ships as a complete front trim, one each per package, so a property manager or electrician replacing a bent, painted-over, or missing cover on an existing RLP flush panel can order it on its own. Confirm the existing panel is an RLP flush box with a 31.5 x 20 inch opening and that the original was a door-in-door front, since a DID trim and a plain door trim are not interchangeable in appearance.
3) What does door-in-door mean on an ABB panelboard trim?
Door-in-door (DID) puts a smaller hinged door inside the main trim door. Electricians and maintenance staff open the inner door to reach the breaker handles for switching or resetting, and the outer door stays closed over the gutter and wiring space. On a standard single-door trim you swing the whole panel open to touch a breaker. DID is the configuration facility teams pick where breakers get operated often, or where they want live parts behind a second barrier during routine switching.
4) Does this ABB trim include the panelboard interior, breakers, or the enclosure box?
No. The AF31FPN is the front trim only, the cover plate with the door-in-door front. The enclosure box, the panelboard interior with its bus and main, and the branch breakers are all ordered separately. On a new build you are specifying the RLP box and interior first, then this trim to close it out.
5) What finish does the AF31FPN trim come in, and can it be repainted to match a corridor wall?
It ships with a factory-applied painted (PN) finish, which is the standard commercial gray-style panel finish ABB applies at the plant. That coating is the durable surface intended for commercial and industrial interiors. Field repainting to match wall color is a common practice, but nothing in the ABB specification covers a field topcoat, so treat any repaint as your own finish work and keep circuit directory and any required labeling legible.
6) How many trims come in a package of ABB AF31FPN?
One. It is packaged 1 EA, so a contractor ordering trims for a multi-unit job or a stockroom setting a par level should order one line quantity per panel rather than expecting a carton of multiples.
