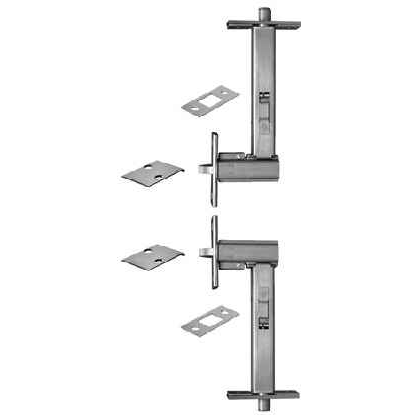

ROCKWOOD 2962 Automatic Flush Bolt with Bottom Fire Bolt
Material: Stainless Steel;
Finishes: US32D;
Fastner: 8 ea. #8 x 1" FH SMS, 8 ea. #8 x 3/4" FH combo screws, 4 ea. plastic anchors
Features:
- For Fire Rated Wood Core & Composite Doors
- Durable, tested over 1 million cycles
- Smaller profile adds stability to the door
- Only two 1-1/8" diameter holes for easier door preparation
- Preparation prevents the veneer from splitting at the corners of the door
- Quiet & smooth activation
- Fully automatic—opening active door retracts top & bottom bolts.
- Non-handed
- Override feature prevents damage to doors or bolt if bolt head is blocked from entering strike
- Low (3 lbs. maximum) closing force. ADA Compliant
- Adjustable bolt head rods: bolts can be vertically adjusted 1/2" for unusual clearances
- For up to 4' w x 9' h fire rated wood core & composite doors up to 1-1/2 hours fire rating
ROCKWOOD OVERVIEW
Rockwood products are normally used on all types of institutional buildings, offices, retail, educational, detention, sports facilities, hotel and restaurant, and finer residences.
ENVIRONMENTAL MANAGEMENT
ASSA ABLOY is commited to protecting the quality of the environment as well as the health and safety of its employees, customers, and the community. Please see our Environmental Health and Safety Policy for details on how we are dedicated to this commitment.
RESOURCES & DOWNLOADS
Manufacturer Resources
Product Specs
- Product Group:
- Door Trim and Accessories
- Fasteners:
- 8 ea. #8 x 1" FH SMS, 8 ea. #8 x 3/4" FH combo screws, 4 ea. plastic anchors
- Subcategory:
- Bolts and Latches
- Product Subgroup:
- Flush Bolts
- Product Type:
- Flush Bolts
- Commercial/Residential:
- Commercial
- Product Model:
- 2962
- Face Plate:
- 1-1/8" x 2-1/4"
- Product Category:
- Door Trim and Accessories
- Department:
- Door Hardware
Rockwood ROC-2962-US32D – Frequently Asked Questions
1) How much door prep does the Rockwood 2962 flush bolt need in a wood door?
Two 1-1/8 inch diameter holes, that is the whole bore prep. Each face plate is 1-1/8" x 2-1/4", so the mortise at the door edge is small compared with older full length flush bolts. Rockwood shapes the prep to keep the veneer from splitting at the door corners, which is what usually ruins a field install on a finished wood door. Fasteners come in the box: 8 each #8 x 1" FH SMS, 8 each #8 x 3/4" FH combo screws, and 4 plastic anchors.
2) What is the difference between an automatic flush bolt and a manual flush bolt on a pair of doors?
An automatic set retracts on its own. On the 2962, opening the active leaf retracts both the top and bottom bolts, so the inactive leaf can be pulled open without anyone reaching up to a lever at the top of the door. A manual flush bolt has to be thrown and released by hand at each end, which is fine for a leaf that stays fixed all day but a nuisance where both leaves get used. If manual is what you want, ZenSupply carries the Ives FB358 and the ABH 1855S for that duty.
3) My door and frame are out of square, can the flush bolt be adjusted to reach the strike?
There is 1/2 inch of vertical adjustment in the bolt head rods, which covers unusual head and threshold clearances without re-prepping the door. There is also an override built in, so if the bolt head is blocked from entering the strike the mechanism gives rather than tearing up the door or the bolt.
4) I have hollow metal doors, not wood - what automatic flush bolt should I use instead of the Rockwood 2962?
Use the ABH 1860P/1862P automatic flush bolt pair, which is fire rated for 3 hours and includes a thermal lock. The Rockwood 2962 is built for fire rated wood core and composite doors, so a metal opening is outside what it is made for. If the metal pair is to be operated manually rather than automatically, the ABH 1854 series is a manual flush bolt set with fire bolt for metal doors, and the ABH 1855S is a manual single with a 3/4 inch throw for metal doors.
5) What flush bolt should I use if I need the inactive leaf key controlled instead of automatic?
Look at the cylinder operated flushbolts. The Adams Rite 1877 is a cylinder operated flushbolt for paired wood doors, and the Adams Rite 1870 series is a cylinder operated flushbolt with key control. Those put the inactive leaf under a key, so only a keyholder can throw or release it. The Rockwood 2962 works the other way: it is fully automatic and non-handed, releasing both bolts whenever the active door opens, with no key involved. Choose by whether the inactive leaf should be under key control or should free itself with the active leaf.
6) Do I need an automatic flush bolt like the Rockwood 2962, or will a manual flush bolt do?
An automatic set is what you want when the inactive leaf must free itself as the active leaf opens. The Rockwood 2962 is fully automatic - opening the active door retracts both the top and bottom bolts - with a maximum 3 pound closing force that makes it ADA compliant. A manual flush bolt is thrown and withdrawn by hand at each bolt: the Ives FB358 manual flush bolt has a 3/4 inch throw and a 1/2 inch bolt diameter, and the Ives FB457 manual flush bolt comes with a 12 inch rod for metal doors. Manual bolts require someone to reach the head of the door to release the inactive leaf; the 2962 does not.
7) Do I have to order a left hand or right hand version of the Rockwood 2962?
No handing to specify. The 2962 is non-handed, so one set covers either inactive leaf and you can stock a single part number across a building.
8) Is the Rockwood 2962 durable enough for a high traffic pair of doors in a school or hospital?
It is tested past 1 million cycles and Rockwood hardware is specified into institutional buildings, schools, healthcare, hotels and detention. The smaller bolt profile also adds stability to the door instead of cutting a long channel into the edge. For a fleet, the non-handed design means one part number covers every pair in the facility.
9) Is the Rockwood 2962 a complete set for a pair of doors, or do I need two of them?
One 2962 set covers one inactive leaf, top and bottom. It ships as an automatic flush bolt with the bottom unit as a fire bolt, plus all mounting fasteners. Order one set per pair of doors, not two, since only the inactive leaf gets bolted.
10) Is a 6 inch corner mount flushbolt like the Trimco 3999 a substitute for the Rockwood 2962?
No - those are different parts doing a different job. The Trimco 3999 is a 6 inch corner mount flushbolt with a rounded end and the Trimco 3999SE is the same 6 inch corner mount with a square end; both are single manual bolts thrown by hand. The Rockwood 2962 is an automatic set that retracts top and bottom bolts when the active leaf opens, with a bottom fire bolt included, and its face plate measures 1-1/8 inches by 2-1/4 inches. A corner mount bolt also preps differently from the 2962, which needs only two 1-1/8 inch diameter holes in the door.
11) I only need to replace the bottom bolt on a fire rated pair - do I have to buy the whole Rockwood 2962 set?
Not necessarily. The Rockwood 2962 is a complete set - an automatic flush bolt with bottom fire bolt, supplied with 8 each #8 x 1 inch FH SMS, 8 each #8 x 3/4 inch FH combo screws, and 4 plastic anchors - so it covers both the top and bottom positions. If only the bottom position needs hardware, the ABH 1858 is a universal bottom fire bolt of manual operation. If only the top automatic position needs replacing on a wood pair, the Ives FB42 is a top automatic flush bolt for wood doors with an auxiliary fire latch.
12) Are the Delaney and Emtek flush bolts an alternative to the Rockwood 2962 on a commercial fire rated opening?
They are a different class of bolt. The Delaney 7 inch slide type mortise-in flush bolt, the Delaney 6 inch square end solid brass flush bolt, the Delaney 7 inch mortise extension flush bolt and the Emtek flush bolts are manual slide bolts mortised into the edge of the inactive leaf. The Rockwood 2962 is a commercial stainless steel automatic set for fire rated wood core and composite doors up to 1-1/2 hours, and it is non-handed with an override feature that prevents damage if the bolt head is blocked from entering the strike. On a fire rated pair, match the bolt to the fire rating the opening has to hold.
13) What is the difference between the Rockwood 2962 and a two-point flushbolt like the Adams Rite MS2180?
They secure the inactive leaf differently. The Adams Rite MS2180 series is an auto-release two-point flushbolt with a Smartlock mechanism, and the Adams Rite MS1880/MS1881 are two-point flushbolts with an interlock mechanism - a single point of operation drives both bolts through the mechanism. The Rockwood 2962 is an automatic set in which opening the active door retracts the top and bottom bolts, with adjustable bolt head rods that allow 1/2 inch of vertical adjustment for unusual clearances and a low 3 pound maximum closing force.
14) Is the IDC FB-1202 flush bolt interchangeable with the Rockwood 2962?
No. The International Door Closers FB-1202 is a manual flush bolt with a positive U joint actuator, 5/8 inch throw, 1/8 inch offset with 7/8 inch backset, square end and guide. The Rockwood 2962 is fully automatic, non-handed, and preps with only two 1-1/8 inch diameter holes in the door, with a face plate of 1-1/8 inches by 2-1/4 inches. The backset, throw and door prep are not the same, so one does not drop into the other's mortise.
15) Is the Rockwood 2962 flush bolt rated for commercial use or is it residential grade?
Commercial. The 2962 is a commercial specification item, stainless steel, cycle tested over 1 million. Residential-weight flush bolts like the Delaney 6 inch square end solid brass or the Emtek flush bolts are surface or mortise units for interior French doors, not fire rated openings.
16) For a satin stainless finish flush bolt, what are the options besides the Rockwood 2962?
The Rockwood 2962 is stainless steel in a 630 satin stainless steel finish, tested over 1 million cycles. Among comparable flush bolts, the Delaney 6 inch square end flush bolt is solid brass and the Orca Hardware 86SQ is a 6 inch flush bolt with radius corners. Those are manual bolts in different materials and shapes, so if the requirement is a stainless automatic set matching other stainless trim on the opening, the 2962 is the one that carries the 630 finish.
