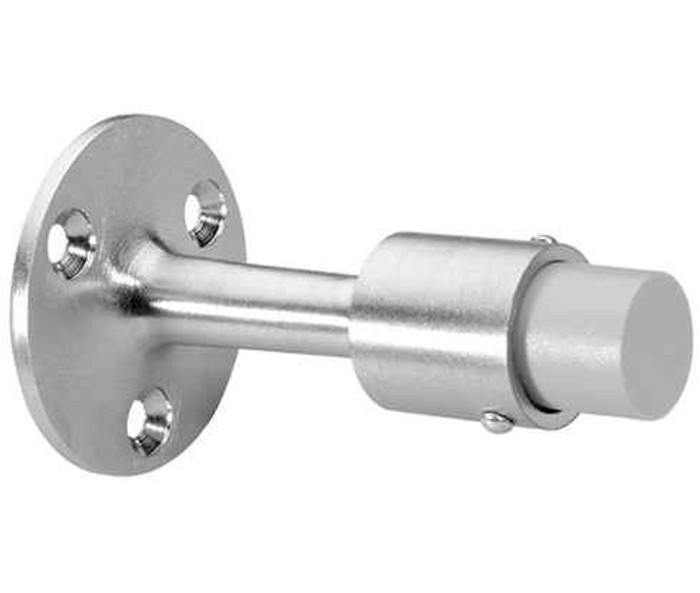

Rockwood 474 Door Stop, 3-3/4" Projection, 2-1/4" Diameter Base, Plastic Anchor Fasteners

The 474 projects 3-3/4 inches from the wall on a 2-1/4 inch diameter base. That projection is what keeps the lever or the exit device hardware from hitting the wall, so measure from the finished wall face to the furthest point of your trim before you commit. If the knob or lever sticks out further than 3-3/4 inches when the door swings open, you need a longer stop or a floor-mounted one instead.

The 474 is listed to ANSI A156.16 under type number L02011. A156.16 is the BHMA standard covering auxiliary hardware, which is where wall and floor stops live, and the L02011 type designation is what a spec writer or architect calls out on a hardware schedule. If your submittal asks for an A156.16 L02011 wall bumper, this stop answers it directly.

Then the 474 is the wrong stop for that opening, and it is worth measuring before ordering rather than after. Two alternatives ZenSupply stocks: the Delaney solid brass baseboard stop adjusts from 3-1/2 to 4-1/2 inches, so it covers openings where the required reach is not known until the door is hung, and the Emtek 2231 baseboard stop is a fixed 4 inch. All three mount the same way, low on the base, so swapping between them does not change the install.

It stops the door and protects the wall. It does not hold the door open. If you need the door to stay parked, that is a holder, and it is a different part: the Orca Hardware TH-30HD is a heavy duty rigid stop with a door holder function, and the Hager 212 is an adjustable rigid stop covering an 80 to 120 degree range. Those mount to the door and reach the wall or floor, which is a different prep from the 474's three-screw wall pattern.

The Emtek 2231 is a baseboard door stop with a 4 inch dimension, against the 474's 3-3/4 inch height. Both mount to the baseboard and catch the door face, so the swap comes down to how far the stop needs to reach the door. The Delaney baseboard stop is solid brass and adjusts from 3-1/2 to 4-1/2 inches, which brackets the 474's fixed 3-3/4 inch projection for openings where the exact reach is not yet known.

No. The 474 is a baseboard door stop that arrests the swing and returns the door. To hold the door open, the Orca Hardware TH-30HD is a heavy duty rigid stop whose function is a door holder. The Hager 212 is an adjustable rigid door stop with an 80 to 120 degree range, which sets where the swing terminates. Those are overhead-style rigid units rather than a baseboard-mounted bumper.

It is a commercial-duty stop: cast brass body with a rubber bumper, rated commercial rather than residential. Rockwood hardware of this kind is used through institutional buildings, offices, retail, education, detention, sports facilities, and hotels. The cast brass body is the reason it survives corridor traffic where a stamped or die-cast stop deforms after a few hundred slams.

Four finishes: 605 bright brass, 613 satin bronze oil-rubbed, 625 bright chrome, and 626 satin chrome. Those are standard BHMA finish numbers, so 626 matches the satin chrome levers and closers on most commercial openings and 613 matches oil-rubbed bronze residential and hospitality trim. Order the same number your lockset carries and the stop will read as part of the set.

A baseboard stop mounts low on the wall or base trim and takes the door edge, which keeps the floor clear for mopping and wheeled carts, and it puts nothing in a walking path. A floor bumper is the answer when the wall behind the door is too far away for a 3-3/4 inch projection to reach, or when the wall is glass or unsupported. For that case ZenSupply carries the Delaney 2 inch round solid brass floor bumper. Baseboard stops also need a solid base or stud to anchor to, which a floor stop does not.

Not a hole-for-hole swap. The 474 uses a three-screw pattern through a 2-1/4 inch base, and a spring stop typically anchors on a single fastener, so you will be drilling new holes and likely patching the old one. Where you want to stay with a spring stop instead, ZenSupply carries the Orca Hardware 3-3/4 inch spring door stop, which matches the 474's 3-3/4 inch reach, and a 3-1/8 inch version for tighter clearances.
