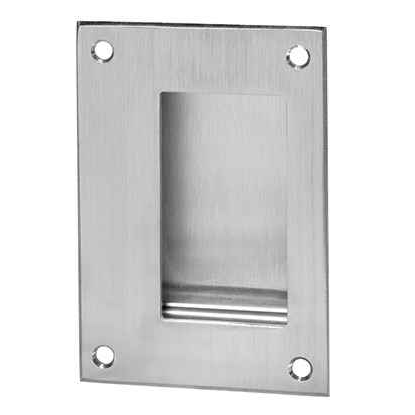

Rockwood 94 Flush Pull

The 94 has a 7/8 inch product depth, so the mortise pocket has to be at least that deep behind the door face. On a 1-3/4 inch commercial door that leaves roughly 7/8 inch of stile behind the cup, which is why it matters where two pulls land if you are putting one on each face. Offset them rather than mounting back to back on the same centerline.

It is built to ANSI A156.6, J403, the architectural door trim standard, and Rockwood lists it as commercial rather than residential hardware. If a spec sheet calls for an A156.6 flush pull, the J403 designation is what the specifier is looking for on the submittal.

Depends on what the opening needs. For a like-for-like commercial cup pull, the Trimco 1060/1061 or the larger Trimco 1111 flush cup pulls cover the same job. If the door is a residential-grade pocket door and the finish has to match decorative trim, the Baldwin Estate 8601 pocket door pull is the passage and dummy option. For a round cutout rather than a rectangular mortise, the Orca Hardware FPULL is a 2-1/8 inch diameter round flush pull. In behavioral health or detention, where anything a ligature can catch on is a problem, the ABH 1911 Series is the ligature-resistant flush pull.

Not as a ligature-resistant pull. The 94 is a standard stainless cup pull, and the closest it gets to a security spec is the TORX option for tamper-resistant screws. If the opening needs a ligature-resistant flush pull, the ABH 1911 Series is the one built for it. Use the 94 on the ordinary side of the facility, offices, corridors, storage, and spec the 1911 where the risk assessment calls for it.

The Rockwood 94 is a stainless steel flush pull that mounts into a 7/8 inch deep recess and fastens with #8 x 3/4 inch sheet metal screws, and it is tagged for pocket door use. The closest like-for-like recessed cup pulls are the Trimco 1060/1061 flush cup pulls and the Trimco 1111 large flush cup pulls, which are the same recessed cup format in a larger size. The Baldwin Estate 8601 is also a pocket door pull, offered for passage and dummy applications, so it suits a pocket door opening where the Estate trim family is being matched.

The Rockwood 94 is a standard commercial flush pull in stainless steel and is not built as an anti-ligature device. For a room where ligature resistance governs the hardware selection, the ABH 1911 series flush door pull is designed as a ligature-resistant flush pull and is the one to specify in place of a standard cup pull.

They are both flush pulls but they are not the same part. The Orca Hardware flush pull is a round pull with a 2-1/8 inch diameter, which is bored with a hole saw. The Rockwood 94 is a stainless steel flush pull built to ANSI A156.6, J403 and mounted with #8 x 3/4 inch sheet metal screws. If the door prep is a round bore, the Orca pull fits it; if the specification calls out an ANSI A156.6 J403 pull, the Rockwood 94 is the one that carries it.

It ships with #8 x 3/4 inch sheet metal screws. Add the TORX option if you want security Torx fasteners instead, which is the usual call for detention, behavioral health, schools, or any opening where the pull gets picked at. Note the fastener length: 3/4 inch SMS bites into the door material behind the cup, so a hollow metal door needs backing or the screws are only holding the face sheet.

One finish: 630, satin stainless steel, also written US32D. That is the standard commercial finish on push plates, kick plates, and pulls, so it lines up with the satin stainless trim already on most institutional and office openings. If your building is standardized on satin chrome (626) brass hardware, the 94 will read slightly different in tone.

A mortised pull like the Rockwood 94 needs a routed pocket 7/8 inch deep and screws through the flange, which gives you a stainless cup that stays put under commercial traffic. A drive-in pull, like the Trimco 1059, presses into a bored hole with no separate fastening, which is faster on a wood door and common in millwork. Go mortised where the door gets used hard or the pull has to hold a finish and a fastener spec; go drive-in where the install is a bored hole and speed matters.

For a pocket door people operate from both sides, yes, order two, one per face. The 94 is sold as a single pull, and each one mortises 7/8 inch into the door, so stagger the two cutouts vertically or horizontally rather than putting them directly opposite each other on a 1-3/4 inch door.

The Rockwood 94 is a fixed recessed pull with a 7/8 inch depth, so the grip stays inside the door face. The Trimco 1066/1067/1068 drop-ring flush pulls use a ring that drops flush into the pocket and lifts out to be grasped, which gives a positive grip for drawing a door closed from a flush surface. Specify the drop-ring pull where the fixed cup recess of the 94 does not give enough purchase.

The Trimco 1111 series is a large flush cup pull and is the option to look at when the hand needs more cup area than a standard pull gives, such as a wide or heavy sliding leaf. The Rockwood 94 is the standard-size stainless steel cup, set 7/8 inch deep and screw-fixed with #8 x 3/4 inch sheet metal screws.

The Rockwood 94 is a commercial stainless steel flush pull built to ANSI A156.6, J403, and Rockwood hardware is used across institutional buildings, offices, retail, educational, detention, sports facilities, hotel and restaurant work, and finer residences. The Baldwin Estate 8601 is a pocket door pull in the Estate series, offered for passage and dummy, so it is the choice when the pull has to match Estate series decorative trim elsewhere in the house.

The 94 is solid stainless steel, not plated, so wear on the cup does not expose a different base metal underneath the way a plated pull does. That matters on the openings that get pulled a hundred times a day: corridor pocket doors, restroom entries, hotel and restaurant service doors. It is the same reason Rockwood trim shows up in schools, offices, and healthcare rather than only in residential work.
