ROFU 9112/9124 VDC Plug In Transformers
Technical Specifications:
- Input: 120 VAC/ 60 Hz
- Output:
- 9112: 12 VAC, 1.5 A

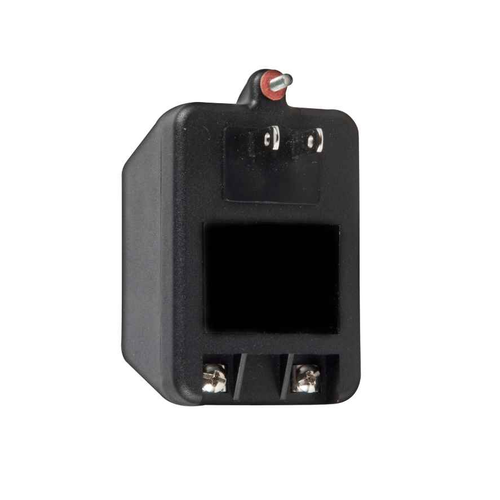

- 9116: 16 VAC, 0.8 A
- 9124: 24 VAC, 0.42 A
- UL Class: 2
Manufacturer Resources
Product Specs
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Controllers, Power Supplies and Transformers
- Product Type:
- Transformers
- Subcategory:
- Electronic Access Controls
- Commercial/Residential:
- Commercial
- Series:
- 9112/9124
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
ROFU 9112 – Frequently Asked Questions
1) Is the ROFU plug-in transformer UL listed, and what does Class 2 mean for my wiring?
It is a UL Listed Class 2 transformer. Class 2 is the rating an inspector looks for on low-voltage access control power: the output is power-limited, so the field wiring between the transformer and the strike is not held to the same conduit and wiring-method rules as line voltage. That is what lets an integrator run low-voltage cable to the door. Input side is still 120 VAC.
2) Do I need an electrician to install a ROFU 9112 or 9124 transformer?
No. It is a plug-in unit, so the primary side goes into an ordinary 120 VAC 60 Hz receptacle, no junction box, no hardwiring, no line-voltage termination. Only the Class 2 low-voltage side gets run to the door. That makes it a fast fix for a property manager or locksmith adding a single electrified opening where an outlet is already nearby. What it also means is that the door depends on that outlet staying live and unplugged-by-nobody, so pick a receptacle inside a controlled space.
3) Will a ROFU transformer work on 220V or 50Hz power outside North America?
No. Input is 120 VAC at 60 Hz only, so it is a North American product. On 220-240 V or 50 Hz mains it is the wrong part, and you need a transformer rated for your local supply.
4) Is the ROFU 9112/9124 transformer rated for commercial use?
Yes, it is a commercial-duty product, not a residential doorbell transformer. It is the plug-in power source used for electronic access control hardware, electric strikes, keypads and similar low-voltage door devices, on a 120 VAC 60 Hz supply with a UL Class 2 output.
How fast can I get the ROFU 9112 delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the ROFU 9112 come with a warranty?
Absolutely. The ROFU 9112 is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the ROFU 9112?
You can call, text, or email our expert support team for fast answers. We’re here to help with
product
selection,
installation tips, and troubleshooting. Contact Us
