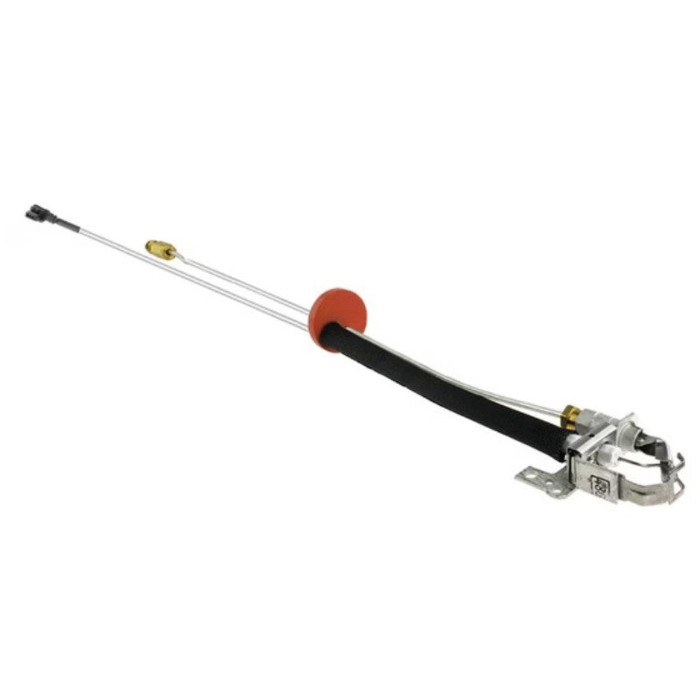

Ruud AP14698D-1 Water Heater Pilot Assembly

Ruud AP14698D-1 Water Heater Pilot Assembly

The Ruud AP14698D-1 is a water heater pilot assembly, sold as a direct-fit replacement part for the pilot circuit on compatible Ruud gas water heater models. The pilot assembly is the small burner-ignition subcomponent that sits ahead of the main burner and provides the standing or intermittent flame reference used by the gas control valve and thermocouple/thermopile circuit to confirm safe burner operation before the main gas valve is allowed to open. When a pilot assembly wears out, cracks, becomes clogged with sediment or corrosion, or the flame sensing element degrades, the water heater can fail to light, fail to stay lit, or trip out on safety lockout, leaving the tank without hot water. Replacing the pilot with the correct manufacturer part is the standard service fix for these no-light and lockout conditions, and matching the exact OEM part number avoids the fit and calibration issues that can come with a generic aftermarket substitute. This listing is identified by the Ruud part number AP14698D-1 and is intended for plumbing and mechanical service technicians performing water heater diagnostic and repair work, not for DIY installation by unqualified persons; gas appliance service should only be performed by a qualified technician familiar with local gas and plumbing code requirements.

Key Features

• OEM Part Number: Ruud AP14698D-1 pilot assembly, matched to the manufacturer's original specification for compatible units.
• Direct Replacement: Designed to replace a worn, damaged, or malfunctioning factory pilot assembly on applicable Ruud gas water heaters.
• Pilot Ignition Function: Provides the reference flame used by the gas control system to verify pilot presence before the main burner is allowed to fire.
• Diagnostic Fit: Correct-fit replacement helps resolve common no-light, will-not-stay-lit, and safety lockout complaints traced to a failed pilot.
• Service Part: Intended for use by qualified service technicians as part of routine water heater diagnostic and repair work.
• Ruud Brand: Supplied under the Ruud brand for use in maintaining Ruud gas water heater equipment to the original factory design.

Technical Specifications

• Part Number: AP14698D-1
• Brand: Ruud
• Refer to manufacturer documentation for complete technical specifications, including compatible model numbers, gas type, and installation instructions.

Typical Applications

• Gas Water Heater Pilot Repair and Replacement
• Residential and Light Commercial Water Heater Service
• Ignition System Troubleshooting for No-Light or Lockout Conditions
• Scheduled Maintenance on Compatible Ruud Water Heater Equipment

Why Ruud?

Ruud is a long-established manufacturer of residential and commercial water heating equipment, and genuine Ruud replacement parts like the AP14698D-1 pilot assembly are built to match the fit and function of the original component installed at the factory. Using the correct manufacturer-specified pilot assembly helps technicians restore proper ignition operation without introducing compatibility issues from a generic substitute, reducing repeat callbacks tied to mismatched parts. For plumbing contractors and service technicians working on Ruud gas water heaters, sourcing the exact OEM part number simplifies diagnosis, keeps the repair aligned with the equipment's original design, and supports faster, more reliable service turnaround when a unit is down.
