Pin Kit, Corbin Russwin System 70 DH & Z (Metal Wedge)

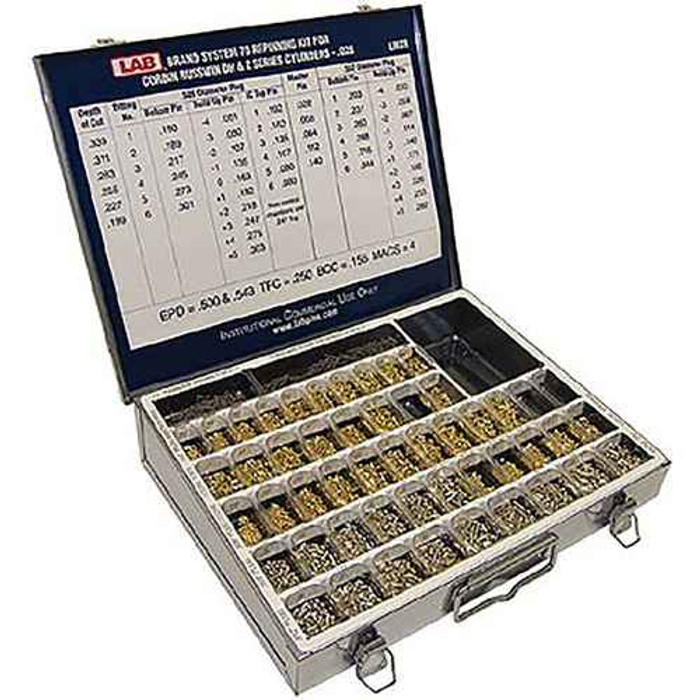

The LIKCR is a Corbin Russwin pinning kit for System 70, DH & Z Class Keyways with plug diameters of .509 & .552. It contains 100 each nickel silver bottom pins, brass top and master pins. Measures 11-1/8" x 8-1/4" x 2" (Front) x 3-1/4" (Back).
Manufacturer Resources
Product Specs
- Features:
- Case Dimension: 11-1/8" x 8-1/4" x 2" F x 3-1/4" B
- Product Group:
- Parts and Accessories
- Subcategory:
- Parts
- Product Subgroup:
- Parts and Accessories
- Product Type:
- Rekeying Kits
- Commercial/Residential:
- Commercial
- Kit Contents:
- 12 Original Nickel Silver Bottom Pins Brass Top and Masters; Cylinder Springs 111IC / 111SD; 0.028 Pin Depths; 0.509 and 0.552 Diameter Plugs; Repining System 70 DH and Z Including Icore; Pins Per Pocket: 100
- Product Function:
- Pining Kit
- Product Category:
- Parts and Accessories
- Department:
- Door Hardware
Lab LIKCR – Frequently Asked Questions
1) What plug diameters does the LIKCR Corbin Russwin pin kit cover?
The kit is cut for .509 and .552 diameter plugs, which is what Corbin Russwin System 70 DH and Z cylinders run. If the plugs you're working on are outside those two diameters, this isn't the kit for that job.
2) Can I use the LAB LIKCR kit to rekey Corbin Russwin interchangeable core cylinders?
Yes, Icore is called out in the kit contents along with standard System 70 DH and Z repinning. The 111IC spring in the kit is the interchangeable-core spring, so both the IC and standard-cylinder work are covered by the same drawer.
3) Can I master key Corbin Russwin System 70 cylinders with the LIKCR kit?
Yes. The kit stocks brass master pins along with the nickel silver bottoms and brass tops, so you can build a master keyed system rather than only doing one-to-one rekeys. That matters if you're standardizing a building on a single master with individual change keys.
4) What pin increment does the LAB LIKCR kit use?
Pin depths in the LIKCR are on a .028 increment, matching the Corbin Russwin System 70 depth spacing. That increment is what lets you key to the factory depths rather than approximating with a universal kit.
5) How many pins come in the LIKCR rekeying kit, and will it cover a full building rekey?
Each pocket holds 100 pins across 12 pin sizes, nickel silver bottoms with brass tops and masters, so you're starting with roughly a full drawer rather than a service-truck handful. For a property manager or MRO shop rekeying a run of Corbin Russwin System 70 cylinders, that's kit-level quantity, not a single-cylinder repair pack.
6) Does the LIKCR pin kit include cylinder springs, or do I have to order those separately?
Springs are in the kit. It carries 111IC and 111SD cylinder springs alongside the pins, so you aren't sourcing springs separately to finish a rekey.
7) Is the LAB LIKCR pin kit meant for commercial locksmith work or residential?
Commercial. Corbin Russwin System 70 is a commercial cylinder platform, and the LIKCR is stocked as commercial keying equipment. A residential shop working Kwikset and Schlage keyways gets nothing out of it, since the .028 depth increment and .509/.552 plug diameters are specific to Corbin Russwin.
8) How big is the LAB LIKCR case, and will it fit in a locksmith van drawer?
Case measures 11-1/8 x 8-1/4 x 2 inches at the front and 3-1/4 inches at the back, the wedge shape that lets the pin pockets sit at an angle when the lid is open. Measure your drawer against 11-1/8 by 8-1/4 for the footprint and allow the 3-1/4 inch rear height for clearance.
9) Is the LIKCR a metal wedge case or plastic?
Metal wedge case. The LIKCR is the metal-wedge version of LAB's Corbin Russwin System 70 kit, which is the one that holds up to daily handling in a shop or a service truck.
