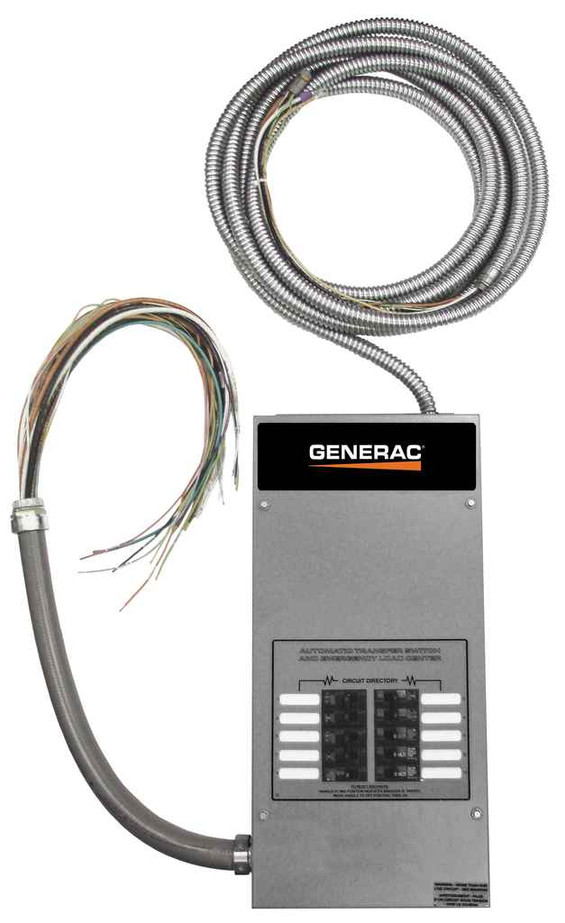

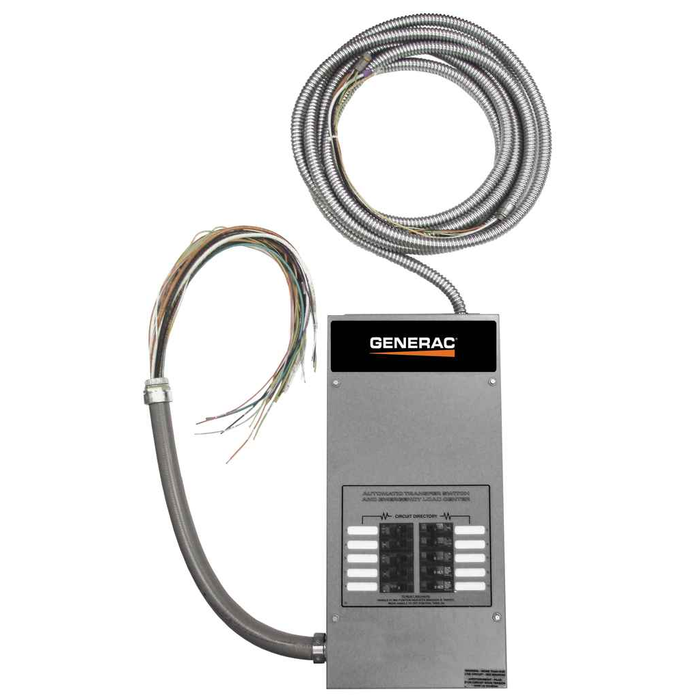

GENERAC RXG10EZA1 RXG10EZA1 - 10-circuit 50 Amp Load Center ATS - NEMA 1 CUL

GENERAC RXG10EZA1 RXG10EZA1 - 10-circuit 50 Amp Load Center ATS - NEMA 1 CUL

(No reviews yet) Write a Review

Model: RXG10EZA1
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,375.34
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
RXG10EZA1 - 10-circuit 50 Amp Load Center ATS - NEMA 1 CUL

  • Features

    • 10-circuit 50 Amp ATS - NEMA 1 CUL
    • The controller at the generator handles all the timing, sensing, and exercising functions
    • The heavy duty generac contactor is a UL recognized device, designed for years of service
    • All pre-wired switches are housed in a steel NEMA 1 enclosure, with electrostatically applied and baked powder paint
    • Multi listed for use with 1 in. standard, tandem, GFCI and AFCI breakers from Siemens, Murray, Eaton and Square D for the most flexible and cost effective install

Manufacturer Resources

Product Specs

Assembled Weight:
75 lbs
Country Of Origin:
United States
Csa Safety Listing:
Yes
Does This Product Have A Warranty :
Yes
Etl Safety Listing:
Yes
Manufacturer Warranty:
5 Year Limited
Maximum Amperage:
50 A
Maximum Wattage:
16000 W
Number Of Circuits:
10
Number Of Phases:
1
Package Contents:
transfer switch
Restrictions:
No
Ul Safety Listing:
Yes
Department:
Electrical
Product Group:
Power Distribution
Product Subgroup:
Load Center
Product Height:
27.5 in
Product Weight:
75 lbs
Product Width:
35 in
Product Depth:
8.5 in

Generac RXG10EZA1 – Frequently Asked Questions

1) What breakers fit the Generac RXG10EZA1 load center transfer switch?
The RXG10EZA1 is multi listed for 1 inch standard, tandem, GFCI and AFCI breakers from Siemens, Murray, Eaton and Square D. That means you can populate the 10 circuits with whichever of those brands you already stock instead of sourcing a proprietary breaker.
2) How big of a generator can I run through this 50 amp Generac transfer switch?
It is rated 50 amps single phase, 16,000 watts maximum. So it suits an air cooled home standby unit up to 16 kW on a single phase service. If your generator output exceeds that, this is the wrong switch.
3) Can the Generac RXG10EZA1 be mounted outdoors?
No. The pre-wired switch is housed in a steel NEMA 1 enclosure with electrostatically applied and baked powder paint, which is an indoor only rating. Mount it indoors, typically next to or below the main panel. For an exterior wall you need a rainproof rated enclosure instead.
4) Do I get breakers with the Generac RXG10EZA1, or do I order those separately?
The carton contains the transfer switch only. The 10 circuit positions ship empty, so order your 1 inch Siemens, Murray, Eaton or Square D breakers separately to match the loads you are transferring.
5) How much wall space do I need for the RXG10EZA1 transfer switch?
Plan for a footprint of 35 x 27.5 x 8.5 inches and allow for a 75 lb unit, so it wants solid blocking or studs, not drywall anchors. It is a two person lift and set.
6) Does this Generac switch need its own controller or timer for exercise and transfer?
No separate control board is needed on the switch. The controller at the generator handles all the timing, sensing and exercising functions, and the heavy duty Generac contactor inside is a UL recognized device. You run control wiring back to the generator and the generator makes the decisions.
7) Is the Generac RXG10EZA1 approved for use in Canada?
Yes. The RXG10EZA1 carries UL, CSA and ETL safety listings, so it is acceptable for both US and Canadian installations. It is built in the United States.
8) What is the difference between a load center style transfer switch like this and a whole-house service rated ATS?
A load center ATS such as the RXG10EZA1 is an essential circuits design: you move 10 selected branch circuits into it and only those loads transfer to generator power, capped at 50 amps and 16,000 watts. A service rated whole-house switch sits ahead of the main panel and carries everything. Pick the 10 circuit unit when the generator cannot carry the full service and you want to choose the priority loads instead.
9) Is the RXG10EZA1 pre-wired, or do I have to wire the transfer switch internals myself?
It comes pre-wired from the factory inside the NEMA 1 steel enclosure. Field work is limited to feeding utility and generator conductors, landing the neutral and ground, running control wiring to the generator, and extending the branch circuits you are transferring.
