Sargent 2860-10G05 Grade 1 Sin...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,022.09
$552.48

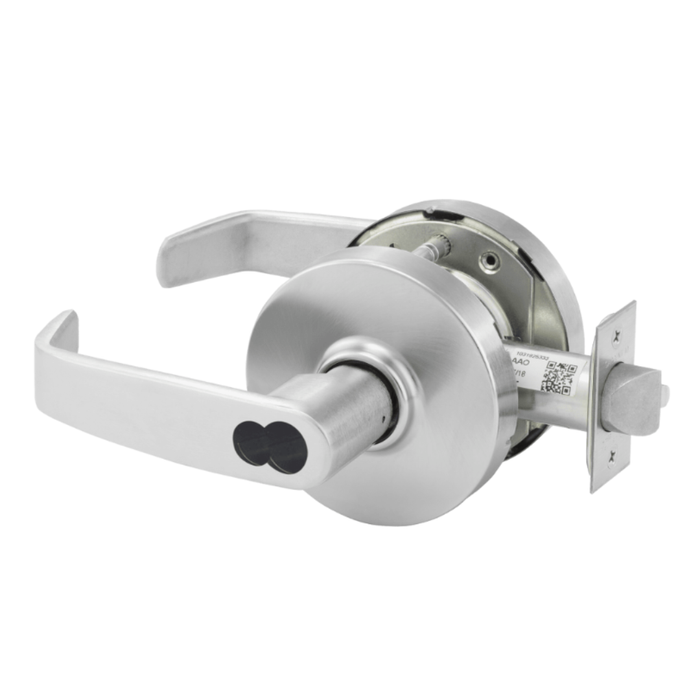

Sargent 2860-10G05 Grade 1 Single Cylinder Entrance Lock with LFIC Prep

Sargent 2860-10G05 Grade 1 Single Cylinder Entrance Lock with LFIC Prep

(No reviews yet) Write a Review

Model: SGT-2860-10G05
From the 10X Line Series Collection
$1,022.09
$552.48
Selected Finish is
Selected Roses is
Selected Lever is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,022.09
$552.48
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 10 Line Series Grade 1 Single Cylinder Entrance Lock with LFIC Prep

Professional Grade 1 Cylindrical Lock Solution

The Sargent 10 Line Series cylindrical lock delivers exceptional strength and durability for demanding commercial applications. This Grade 1 certified entrance lock accommodates 1-3/4" to 2" thick doors with 4-1/2" minimum stile requirements and features LFIC prep for flexible key system integration. Heavy-duty wrought brass and bronze construction with steel cylindrical housing provides long-lasting performance backed by ANSI/BHMA Grade 1 certification and UL listing for 3-hour fire doors.

Professional Features & Benefits

  • Door Compatibility: Designed for 1-3/4" to 2" thick doors with 4-1/2" minimum stile requirements for versatile installation options.
  • Exceptional Durability: Exceeds cycle testing standards by nine times with 9.6 million cycles and 1.5 times torque resistance for superior longevity in high-traffic applications.
  • Heavy-Duty Construction: Wrought brass and bronze roses with steel cylindrical housing and stainless steel latch provide commercial-grade reliability.
  • Grade 1 Certification: ANSI/BHMA Grade 1 certified for cycle and strength requirements ensuring compliance with demanding commercial standards.
  • Fire Door Compatibility: UL-cUL listed for 3-hour fire doors and windstorm applications providing code-compliant safety performance.
  • Flexible Key Systems: LFIC prep integrates with Sargent security systems (Degree, Signature, KESO, XC) and accepts Schlage® and Medeco LFIC for versatile access control.
  • Multiple Backset Options: Available in 2-3/4", 2-3/8", 3-3/4", and 5" backsets with appropriate front widths for various door preparations.
  • Manufacturer Warranty: 7-year warranty provides added confidence and long-term protection for commercial installations.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness (1-3/4" to 2" standard), stile width (4-1/2" minimum), and backset selection.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces per ANSI/BHMA A156.115 door prep standards.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for selected backset configuration.
  4. Install cylindrical housing, latch mechanism, and strike hardware securing all components per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth lever operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Manufacturing Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings
  • Retail Establishments

Why Choose Sargent Quality?

Sargent 10 Line Series locks deliver professional-grade reliability with heavy-duty wrought brass and bronze construction rated for 9.6 million cycles. UL-listed for 3-hour fire doors and backed by a 7-year warranty, these Grade 1 certified locks provide the strength and security demanded by commercial applications. Engineered for demanding environments where dependable performance and code compliance are essential.

Product Specs

Series:
10 Line Series
Grade:
Grade 1
Keyed Function:
Single Cylinder
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Subcategory:
Bored Locksets
Keyed:
Yes
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Lock Function:
Entrance/Office
Product Type:
Leversets
Duty Level:
Heavy Duty
Handle Type:
Lever
Product Attribute:
Cylindrical Locks
Product Function:
Entrance/Office
Door Hand Direction:
Non-Handed
Cylinder Classification:
LFIC Prep
Product Category:
Mechanical Locks
Collection:
10X Line Series
Department:
Door Hardware

Sargent SGT-2860-10G05 – Frequently Asked Questions

1) Can I order the Sargent 10 Line 10G05 with a 2-3/8 inch backset for an existing door prep?
Backset choices on the 10 Line bored lock are 2-3/8, 2-3/4, 3-3/4 and 5 inches, with the matching latch front width for each. 2-3/4 inches is the usual commercial prep, so specify 2-3/8 only if you have measured the existing cross-bore centerline at 2-3/8 inches from the door edge.
2) Does the entrance/office function lock the outside lever with a key or a pushbutton?
The 10G05 is the entrance/office function: the outside lever is locked and unlocked by the key from outside, and the key retracts the latch when locked. The inside lever always retracts the latch for free egress. It is a single cylinder lock, keyed on one side only, which is what you want on a tenant suite door or a private office rather than a classroom or storeroom opening.
3) Can I keep my existing keys if I standardize a building on Sargent 10 Line locks?
If the building already runs a large format interchangeable core system, yes. The 10 Line entrance lock is LFIC prepped and takes Sargent Degree, Signature, KESO and XC cores as well as Schlage and Medeco LFIC, so existing cores pull out of the old hardware and drop into these. Rekeying is done by swapping cores with a control key, no disassembly of the lock.
4) Can I use this Sargent lever lock on a 3-hour fire rated door?
Yes. The 10 Line entrance lock is UL and cUL listed for 3-hour fire doors, and is also listed for windstorm applications. Pair it with the correct fire rated strike and frame prep for the opening.
5) What is a comparable entrance/office lever lock to the Sargent 2860-10G05 if I do not need Grade 1?
The Falcon B511CP6D is a medium duty Grade 2 cylindrical lever lock with an entry/office function, the same basic operation as the Sargent 2860-10G05 entrance/office lever. The Sargent is Grade 1 heavy duty with LFIC prep; the Falcon B511CP6D is Grade 2 medium duty. Grade 2 is commonly specified for lighter traffic interior offices, while Grade 1 is the heavy traffic and fire door standard. The Cal-Royal AUS00 is another entrance/office lever, rated Grade 3 with a solid brass forged body and fitting 1-3/8 inch to 1-3/4 inch doors.
6) I need a Grade 1 cylindrical lever for a 1-3/4 inch to 2 inch door but the opening does not need to be keyed. What should I use instead of the Sargent 2860-10G05?
The Corbin Russwin CL3110 is a Grade 1 vandal resistant cylindrical lever lock with a passage/closet function, fire rated, for 1-3/4 inch to 2 inch doors - the same door thickness range as the Sargent 2860-10G05 but with no cylinder. The Sargent 2860-10G05 is keyed with a single cylinder and LFIC prep. Other Grade 1 non-keyed options are the Falcon K101 passage lock for 1-3/8 inch to 2-1/4 inch doors, fire rated, and the Dexter C1000 passage lever for 1-3/8 inch to 1-3/4 inch doors.
7) The Sargent 2860-10G05 entrance function is not right for my opening - the door must stay locked at all times. What is the alternative?
An entrance/office function like the Sargent 2860-10G05 allows the outside lever to be unlocked for free passage during business hours. For an opening that must remain locked outside at all times with free egress, a storeroom function is the correct choice: the Cal-Royal AG05 is a Grade 2 storeroom lever lockset with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors, and the Hager 2580 is a Grade 2 storeroom cylindrical lock with a Withnell lever for 1-3/8 inch to 2 inch doors. Both step down from the Sargent's Grade 1 heavy duty rating.
8) Do I need to specify handing when ordering the Sargent 10G05 lever lock?
No handing is required. The 10G05 is non-handed, so one lock covers left and right hand openings. That makes it simple to stock a few spares across a building without worrying which door they land on.
9) Is a Grade 1 cylindrical lever lock worth it over a Grade 2 for a high traffic entry?
For an opening cycled all day, yes. The Sargent 10 Line is ANSI/BHMA Grade 1 for both cycle and strength, tested to 9.6 million cycles and 1.5 times the torque requirement, with wrought brass and bronze roses, a steel cylindrical housing and a stainless steel latch. Grade 2 entrance levers like the Falcon B511CP6D or the Hager 2525 are medium duty by comparison and suit lower traffic interior offices. Grade 3 options such as the Cal-Royal AUS00 entrance/office lever are lighter still.
10) What Grade 1 lever lock should I use if my doors are thinner than 1-3/4 inches?
The Sargent 10G05 starts at 1-3/4 inches, so it will not work on a thinner door. For a Grade 1 cylindrical lever on 1-3/8 inch doors, the Dexter C1000 Series covers 1-3/8 inch up to 1-3/4 inch in classroom and classroom security functions, and the Falcon K101 Grade 1 passage lock spans 1-3/8 to 2-1/4 inches if the opening does not need to be keyed.
11) Is a cylindrical lock like the Sargent 10G05 the right choice, or should I be specifying a mortise lock?
A bored cylindrical lock installs into a simple cross-bore and edge bore, which makes it far faster to fit and to retrofit than a mortise lock that needs a pocket routed into the door edge. At Grade 1 with 9.6 million cycles and a 3-hour fire door listing, the 10 Line handles most commercial entry and office openings. Move to a mortise lock when you need a deadbolt in the same case, heavier trim, or a function a bored lock does not offer.
12) What do I need besides the lockset to finish the installation?
Three things beyond the lock body and trim: the LFIC core, since the 10G05 ships prepped rather than cylindered; the correct strike for your frame; and, on an existing door, confirmation that the bore matches the backset you ordered. Door prep follows ANSI/BHMA A156.115 and Sargent supplies templates for marking the door and frame.
13) Does the Corbin Russwin CL33903 do the same job as the Sargent 2860-10G05?
No. The Corbin Russwin CL33903 is a Grade 1 electrified cylindrical lever lock, fail safe, operating on 12VAC/DC, for 1-3/4 inch to 2 inch doors - it is wired into an access control system and unlocks on power loss. The Sargent 2860-10G05 is a purely mechanical Grade 1 entrance/office lever with LFIC prep and no electrical connection. They share the Grade 1 rating and the 1-3/4 inch to 2 inch door range, but an opening specified for electrified fail safe operation needs the CL33903, not the Sargent.
14) Can I use a keypad lever in place of the Sargent 2860-10G05 to avoid issuing keys?
For keyless access there is the Delaney LP250 electronic keypad leverlock, a Grade 2 unit, and the Lockey 1150 heavy duty mechanical keypad lever set with double combination in a passage function for 1-1/8 inch to 2 inch doors. The Sargent 2860-10G05 is a Grade 1 keyed entrance/office lever with LFIC prep, which is what lets it join a Sargent Degree, Signature, KESO or XC key system and accept Schlage or Medeco LFIC cores. If the building is already on a master key system, the keypad units will not key into it.
15) Is the Hager 2525 an equivalent to the Sargent 2860-10G05 entrance lever?
Both are keyed entrance levers, but they are built to different standards. The Hager 2525 is a Grade 2 commercial cylindrical entry lock with a lever handle for 1-3/8 inch to 2 inch doors. The Sargent 2860-10G05 is Grade 1 heavy duty, rated to 9.6 million cycles, UL-cUL listed for 3-hour fire doors, and takes 1-3/4 inch to 2 inch doors with a 4-1/2 inch minimum stile. If the drawing calls out Grade 1 or a 3-hour fire door, the Hager 2525 will not meet it.
16) My building is on Yale or Schlage cylinders - what do I need if I stay with the Sargent 2860-10G05?
The Sargent 2860-10G05 ships with LFIC prep and accepts Schlage and Medeco LFIC cores directly along with Sargent Degree, Signature, KESO and XC systems, so a Schlage-keyed facility can drop its own core in. Going the other direction, the Accentra 107S is a Schlage cylinder adapter kit for Yale hardware, which is what you would need to put a Schlage cylinder into Yale-prepped openings - it is not a part the Sargent lock requires.
17) What matches the Sargent 2860-10G05 on the inactive leaf or a door that only needs a pull?
For a dummy trim that matches lever operation without a latch, the BEST 9K Series 1DT single dummy trim is Grade 1 heavy duty and non-keyed, and the Accentra 455LN Augusta is a Grade 1 heavy duty single dummy cylindrical lever in the 5400 series. The BEST 7KC single dummy trim is the Grade 2 medium duty counterpart. None of these latch or lock - the Sargent 2860-10G05 is the keyed entrance/office lever for the active leaf.
18) What should I use instead of the Sargent 2860-10G05 on a bathroom or bedroom door?
An entrance/office function is keyed and not intended for privacy openings. For bed and bath use the Hager 2540 is a Grade 2 privacy cylindrical lock with a Withnell lever for 1-3/8 inch to 2 inch doors, and the Baldwin Estate 5103 privacy lever with the 5048 rose is a decorative option. The Sargent 2860-10G05 remains the choice for the keyed entrance side of the suite.
