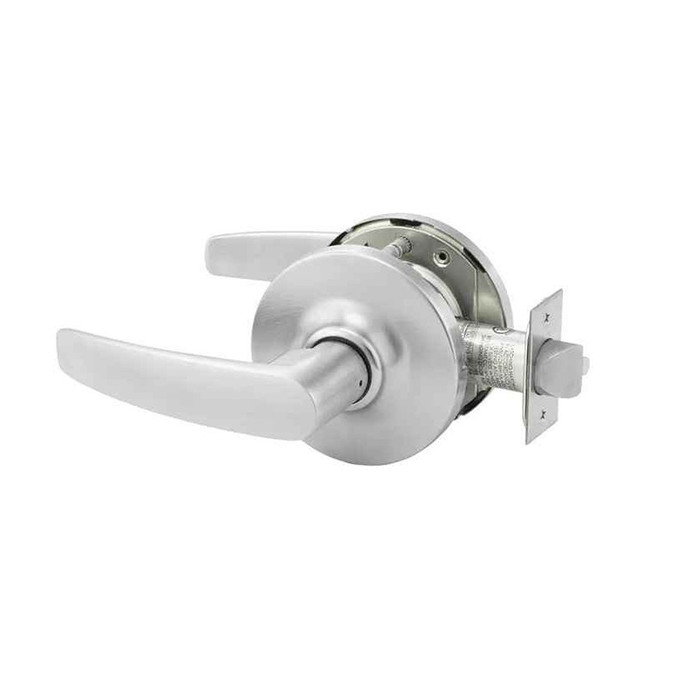

Sargent 10XG14 Patio/Privacy Heavy Duty Cylindrical Lock Grade 1 Non-Keyed

(No reviews yet) Write a Review

Model: 10XG14 LB 26D
From the 10X Line Series Collection
$814.00
$471.90
Selected Finish is
Selected Lever is
Selected Roses is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$814.00
$471.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 10X Line Grade 1 Heavy Duty Cylindrical Patio/Privacy Lock with 20 Million Cycle Rating

Professional Grade 1 Cylindrical Lock for High-Traffic Commercial Applications

The Sargent 10X Line cylindrical lock delivers exceptional security and durability for demanding commercial environments. This Grade 1 non-keyed patio/privacy lock exceeds ANSI/BHMA performance standards by up to 20 times, withstanding over 3,100 in-lb locked lever torque and 1,600 lbs offset lever pull. Engineered with a 2 3/4" standard backset and accommodating door thickness from 1 3/8" to 2", this heavy-duty lock provides reliable performance with UL testing completed at 20 million cycles.

Professional Features & Benefits

  • Exceptional Durability Rating: UL tested to 20 million cycles (Verification ID: V584148) for long-term reliability in high-traffic commercial applications.
  • Superior Security Performance: Prevents entry against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA requirements) and withstands 1,600 lbs offset lever pull (8x ANSI/BHMA requirements).
  • Flexible Door Compatibility: Standard 2 3/4" backset with door thickness range from 1 3/8" to 2" and backset adjustability from 2 3/8" to 5" maximum.
  • Heavy-Duty Construction: Grade 1 lockbody design supports all cylinder formats from fixed to interchangeable core and integrates with all SARGENT Key Systems.
  • Vandal-Resistant Design: Innovative push/turn button design prevents damage from door stops and walls while prohibiting entry after more than 100 vertical impacts (20x ANSI/BHMA requirements).
  • Enhanced Operational Reliability: Ensures latch retraction with 100 lb preload (2x ANSI/BHMA requirements) while maintaining operation in warped doors or doors with latch bind.
  • Comprehensive Certifications: UL-cUL Fire-Rated up to 3 hours, Florida Building Code Approved, ADA Compliant, and windstorm certified for demanding applications.
  • Manufacturer Warranty: 10-year limited warranty with 2-year coverage for electrical components for added confidence and protection.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1 3/8" to 2", backset requirements from 2 3/8" to 5", and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent 10X Line cylindrical locks deliver professional-grade reliability with Grade 1 construction rated for 20 million cycles and tested to exceed ANSI/BHMA standards by up to 20 times. Backed by a 10-year limited warranty with 2-year electrical component coverage, this lock provides comprehensive certifications including UL-cUL Fire-Rating up to 3 hours and Florida Building Code approval. Engineered for demanding commercial applications where dependable performance and maximum vandal resistance are essential.

Product Specs

Series:
10X Line Series
Grade:
Grade 1
Keyed Function:
Non-Keyed
Subcategory:
Bored Locksets
Keyed:
No
Commercial/Residential:
Commercial
Lock Type:
Cylindrical
Lock Function:
Patio/Privacy
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Product Type:
Leversets
Duty Level:
Heavy Duty
Handle Type:
Lever
Product Attribute:
Cylindrical Locks
Product Function:
Patio/Privacy
Door Hand Direction:
Non-Handed
Product Category:
Mechanical Locks
Collection:
10X Line Series
Department:
Door Hardware

Sargent 10XG14 LB 26D – Frequently Asked Questions

1) Will the Sargent 10XG14 patio lock fit a 1-3/8 inch door?
Yes. The 10XG14 cylindrical lock covers door thickness from 1-3/8 inches up to 2 inches, so it works on older 1-3/8 inch interior doors as well as standard 1-3/4 inch commercial doors and thicker 2 inch leaves. No separate thickness kit is involved within that range.
2) Does the Sargent 10XG14 patio/privacy lock take a key?
No. The 10XG14 is a non-keyed patio/privacy function: push/turn button on the inside to lock, no cylinder and no key on the outside. If you need key access from the corridor side, you want a keyed function in the 10X Line instead, not the G14.
3) Is the Sargent 10XG14 fire rated for a labeled door?
Yes, UL-cUL fire rated up to 3 hours. It is also ADA compliant, Florida Building Code approved and windstorm certified, which matters for healthcare, school and coastal work where the opening has to hold a label.
4) How durable is the Sargent 10X lever lock for a high traffic restroom?
It is Grade 1 heavy duty and UL tested to 20 million cycles. The lever resists more than 3,100 in-lb of locked lever torque and 1,600 lbs of offset lever pull, and the push/turn button is built to survive over 100 vertical impacts from door stops and walls. For a public restroom that gets kicked, hung on and slammed, that is the level you want rather than a Grade 2 privacy set.
5) I ordered the Sargent 10XG14 but the door does not need a locking function - what should I use instead?
The Sargent 10XG14 is the patio/privacy function, so the inside lever locks the opening. For a door that should always be free to operate in both directions, use a passage function instead. Grade 1 passage levers include the Falcon K101, a non-handed Grade 1 heavy duty passage cylindrical lock rated for doors 1-3/8 inch to 2-1/4 inch, the Corbin Russwin CL3110 vandal resistant Grade 1 passage lever for 1-3/4 inch to 2 inch doors, and the Dexter C1000 Grade 1 clutching passage lever for 1-3/8 inch to 1-3/4 inch doors. All three are non-keyed like the 10XG14.
6) What is the closest Grade 1 commercial alternative to the Sargent 10XG14 privacy lever for a restroom door?
For a restroom or single-occupancy door needing a Grade 1 non-keyed privacy lever, the Sargent 10XG14 is a Grade 1 cylindrical patio/privacy lock with a lever handle and non-handed body. The nearest cross-brand privacy option in a knob format is the Arrow MK02-TA, a privacy/bed/bath cylindrical lock with a Tudor knob, non-keyed, fire rated, for doors 1-3/4 inch to 2 inch. The practical differences are trim type - lever versus knob - and door thickness coverage, since the 10XG14 accepts 1-3/8 inch through 2 inch doors. If ADA lever operation is required by your facility spec, the 10XG14 is the lever-trim choice.
7) Is there a lighter-duty privacy lever than the Sargent 10XG14 for a low-traffic interior door?
Yes. The Sargent 10XG14 is a Grade 1 heavy duty cylindrical privacy lever built for high-cycle commercial openings. For a lower-traffic interior door, the Hager 2540 is a cylindrical privacy lock with a Withnell lever rated Grade 2 and fitting doors 1-3/8 inch to 2 inch, and the Kwikset 300BRNL RDT Breton privacy lever set is a Grade 3 privacy/bed/bath lock for doors 1-3/8 inch to 1-3/4 inch. Choose by the traffic and the grade your spec calls out; the 10XG14 is the one to carry when a Grade 1 line item is written on the drawing.
8) The Sargent 10XG14 is non-keyed - what do I order if the door needs to be keyed?
The 10XG14 is a non-keyed patio/privacy lever, so it takes no cylinder. For keyed openings on the same door prep, look at the function you actually need: the Hager 2580 is a Grade 2 storeroom cylindrical lock with a Withnell lever for 1-3/8 inch to 2 inch doors, the Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors, the Dexter C1000 classroom is a Grade 1 keyed clutching classroom lever, and the Arrow MK33-BD-CS is a heavy duty asylum function lock with a conventional cylinder in Schlage C keyway. Pick the keyed function that matches how the room is used, since privacy and keyed functions are not interchangeable.
9) Do I have to specify handing when ordering the Sargent 10X lever lock?
No handing to specify. The 10XG14 is non-handed, so one lock covers left and right hand openings. That makes it easier to stock a couple of spares for a building where the doors swing both ways.
10) What lever styles and finishes does the Sargent 10XG14 come in for matching existing door hardware?
Three lever designs (B, L and P) and two rose options (G rose and L rose), so you can match trim already hung in the building. Fourteen finishes are offered, including 26D satin chrome, 26 bright chrome, 15 satin nickel, 10B oil rubbed bronze, 04 satin brass, 03 bright brass, 20D dark statuary bronze, plus black and white suede powder coat.
11) What are the Grade 1 alternatives to the Sargent 10X privacy lock if I need a different trim look?
For Grade 1 cylindrical levers from other lines, the Corbin Russwin CL3100 Series CL3110 is a vandal resistant Grade 1 unit rated for 1-3/4 to 2 inch doors, and the Falcon K101 Grade 1 covers 1-3/8 to 2-1/4 inch doors. Note both of those are passage function, not privacy. If you want a Grade 1 privacy with a knob rather than a lever, the Arrow MK02-TA is a fire rated Grade 1 privacy set with a Tudor knob for 1-3/4 to 2 inch doors.
12) Can I standardize a whole building on the Sargent 10X Line and keep the same look across keyed and privacy doors?
Yes. The 10XG14 shares the 10X Line lockbody, lever and rose trim, and the line's Grade 1 body supports every cylinder format from fixed to interchangeable core and works with all Sargent key systems. So restroom privacy doors get the same B, L or P lever and G or L rose as the keyed openings down the hall, and the keyed ones can be brought onto your existing Sargent keying.
13) Will a dummy lever work as a substitute for the Sargent 10XG14?
No. A dummy trim is fixed and has no latch, so it cannot secure or even close an opening. The Sargent 10XG14 is a cylindrical privacy lock with a working latch and a push/turn button. Dummy trims such as the BEST 9K Series 1DT single dummy trim, a Grade 1 non-keyed heavy duty lever, the Accentra 455LN Augusta Grade 1 single dummy, and the Baldwin Estate 5103 half dummy in left and right hand are for inactive leaves and closet faces only. Order a dummy alongside the 10XG14 for the inactive leaf of a pair, not in place of it.
14) How does the Sargent 10XG14 compare with the Falcon T101 for a high-traffic commercial door?
Both are Grade 1 heavy duty cylindrical levers, but they are different functions. The Sargent 10XG14 is the patio/privacy function with a push/turn button that resists more than 100 vertical impacts, and it is UL tested to 20 million cycles with a fire rating up to 3 hours. The Falcon T101 is a Grade 1 heavy duty passage lever with pressure release technology, meaning it never locks. Use the 10XG14 where the occupant needs to secure the room from inside and the T101 where the door only needs latching.
15) Is a residential privacy lever like the Baldwin 5103 an acceptable swap for the Sargent 10XG14?
Not where a commercial Grade 1 opening is specified. The Baldwin Estate 5103 privacy lever with the 5048 rose is a privacy function set, but the Sargent 10XG14 is a Grade 1 heavy duty commercial lock UL tested to 20 million cycles, fire rated up to 3 hours, Florida Building Code approved and windstorm certified. On interior residential and light decorative openings the 5103 privacy lever covers the same function; on rated, high-traffic, or code-driven commercial doors the 10XG14 is the set that carries those certifications.
16) Where do I find the door prep template for the Sargent 10X cylindrical lockset?
Sargent publishes 10X Line cylindrical lockset installation instructions along with a 10X Line parts manual, both available as PDFs, and the full line catalog covers the series. Use the template in the installation instructions to mark the bore and cross-bore before you drill, since backset varies from 2-3/8 up to 5 inches depending on what you ordered.
17) What is the alternative to the Sargent 10XG14 for a door that needs coded entry instead of a privacy button?
The Sargent 10XG14 secures the room with a push/turn button on the inside and takes no code or credential. For openings that need code entry, the Lockey 1150 is a heavy duty mechanical keypad lever set with double combination in a passage function, fitting doors 1-1/8 inch to 2 inch, and the Delaney LP250 is a Grade 2 electronic keypad leverlock. Keypad sets control who gets in; the 10XG14 lets the occupant lock the door from inside, so the two solve different problems on the same opening.
