Sargent 10-1120 Push Button Ke...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$110.47
$88.80

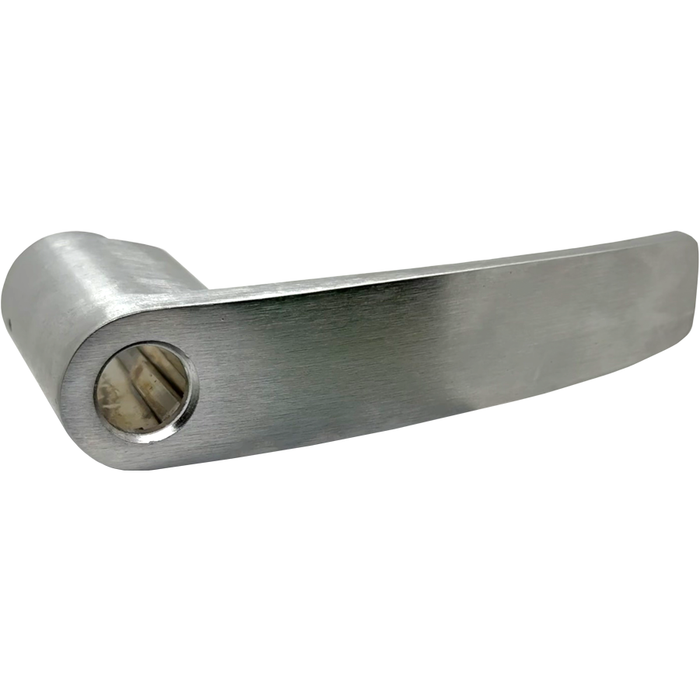

Sargent 10X Line Series Push Button or Key-in-Lever Prep for Standard Sargent Cylinder

Sargent 10-1120 Push Button Key-in-Lever with Standard Cylinder Prep

(No reviews yet) Write a Review

Model: 10-1120-B-26D
From the Conventional Key System Collection
Selected Finish is
Selected Available Lever Design is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$110.47
$88.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 10X Line Series Push Button Key-in-Lever with Emergency Release and 6-Pin Fixed Core

Professional Lever Handle Solution for Commercial Applications

The Sargent 10X Line Series Push Button Key-in-Lever provides versatile access control for commercial door applications with push/turn button operation and emergency release capability. This professional-grade lever handle accommodates doors from 1-3/8" to 2-1/4" thickness and features T-turn functionality with fixed core cylinder compatibility in 6-pin configuration for reliable security and code compliance.

Professional Features & Benefits

  • Door Thickness Compatibility: Designed for 1-3/8" to 2-1/4" door thickness for versatile installation across various commercial applications.
  • Push/Turn Button Operation: "B" configuration provides push/turn button functionality with T-turn (68) operation for convenient access control.
  • Emergency Release Function: Integrated emergency release (65) capability ensures code compliance and safety in critical situations.
  • Fixed Core Cylinder System: Standard Sargent cylinder preparation with 6-pin fixed core design for reliable keying and security management.
  • 10X Line Series Integration: Part of the comprehensive 10X Line system for consistent performance and aesthetic coordination across facilities.
  • Commercial-Grade Construction: Precision-engineered components designed for demanding commercial environments with durable materials and manufacturing.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent 10X Line Series lever handles deliver professional-grade reliability with precision-engineered components designed for commercial applications. The fixed core cylinder system with 6-pin configuration provides dependable security, while the versatile door thickness compatibility from 1-3/8" to 2-1/4" ensures broad application flexibility. Engineered for demanding commercial applications where dependable performance is essential.

Product Specs

Series:
10X Line Series
Product Type:
Leversets
Product Group:
Mechanical Locks
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Collection:
Conventional Key System
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Product Function:
SAR KIL
Department:
Door Hardware

Sargent 10-1120-B-26D – Frequently Asked Questions

1) What cylinder does the Sargent 10-1120 lever take?
It is prepped for a standard Sargent cylinder in a 6-pin fixed core configuration. Fixed core means the cylinder is not an interchangeable core, so it is keyed conventionally rather than swapped by a control key. If your facility is already keyed on a Sargent conventional key system, this drops into that system.
2) Is this a complete lockset or a trim/replacement part?
The Sargent 10-1120 is catalogued as a replacement part within the 10X Line: the push button key-in-lever assembly with the standard Sargent cylinder prep. Order it when you are rebuilding or re-trimming an existing 10X Line cylindrical lock rather than buying a whole new lock body, latch and strike. If the chassis in the door is not a Sargent 10X, this is not the part.
3) Is there a keyed entrance lever with a turn button similar to the Sargent 10X push button key-in-lever?
The closest keyed pushbutton peer is the Arrow turn-pushbutton entrance cylindrical lock with a conventional cylinder, part AR-HK11-BB, rated Grade 2 and covering 1-3/8 inch to 1-3/4 inch doors. Two differences matter: the Arrow uses a ball knob rather than a lever, which rules it out where ADA lever operation is required, and its door range stops at 1-3/4 inch where the Sargent 10-1120 continues to 2-1/4 inch. The Sargent also runs on a standard Sargent 6-pin fixed core cylinder rather than an Arrow conventional cylinder, so it keys into an existing Sargent system.
4) What is a comparable heavy-duty cylindrical lever if the Sargent 10-1120 push button key-in-lever does not fit the door?
The Sargent 10-1120 push button key-in-lever is built for 1-3/8 inch to 2-1/4 inch doors. If you need the same door thickness span in a non-keyed lever, the Falcon K101 is a Grade 1 heavy duty passage cylindrical lock that also covers 1-3/8 inch to 2-1/4 inch and is fire rated. The trade-off is function: the K101 is passage only, with no push button and no cylinder, so it will not give you the locking or emergency release behavior the Sargent provides.
5) For a storeroom door, should I use the Sargent 10X push button key-in-lever or a storeroom-function lockset?
A storeroom opening normally wants a lever that stays locked outside at all times and keys open, which is what the Cal-Royal AG05 Grade 2 storeroom lever with deadlocking latchbolt and the Hager 2580 Grade 2 storeroom lock with Withnell lever are built to do, both for 1-3/8 inch to 2 inch doors. The Sargent 10-1120 is a push/turn button key-in-lever with T-turn and emergency release, which is an occupant-controlled function rather than a permanently locked one. Choose the Sargent when someone inside needs to set and release the lock; choose a storeroom function when the outside lever must never be unlocked by button.
6) What classroom-function lever should I order instead of the Sargent 10X push button key-in-lever for a school?
Pushbutton locking is generally not accepted for classroom doors. The Dexter C1000 Grade 1 classroom cylindrical lever and the Dexter C1000 Grade 1 classroom security lever are both clutching keyed levers for 1-3/8 inch to 1-3/4 inch doors, and Cal-Royal AG03 is a Grade 2 classroom lever with a 6-pin Schlage C keyway and 2-3/4 inch backset. The Sargent 10-1120 is a push/turn button key-in-lever with emergency release and suits offices, restrooms and tenant spaces rather than classroom lockdown.
7) I need access control on the door - what replaces the Sargent 10X key-in-lever?
Mechanical key-in-lever hardware like the Sargent 10-1120 cannot be released from a card reader or panel. For an electrified opening, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever at 12VAC/DC for 1-3/4 inch to 2 inch doors, available with a keyed cylinder in the 12AD configuration. Note the narrower door range, 1-3/4 inch to 2 inch, against the 1-3/8 inch to 2-1/4 inch the Sargent covers, and that the electrified lever needs power transfer at the hinge or frame.
8) Will the Sargent 10X key-in-lever accept a Schlage keyway, or do I need an adapter?
The Sargent 10-1120 is prepped for a standard Sargent cylinder in 6-pin fixed core, so it keys into a Sargent conventional key system rather than a Schlage keyway. If your master key system is Schlage C, levers built around that keyway are the cleaner route, such as the Cal-Royal AG00 entrance lever with a 6-pin Schlage C keyway or the Arrow MK33-BD-CS asylum lock with a conventional Schlage C keyway cylinder. Cylinder adapter kits exist in other lines, for example the Accentra 107S Schlage cylinder adapter kit, but that kit is made for Yale hardware, not Sargent.
9) What does the push button with emergency release actually do on this Sargent lever?
The outside lever is locked by pushing the button on the inside, and turning the inside lever or knob releases it. The T-turn (68) gives you the push/turn action, and the emergency release (65) lets staff get in from the outside side in a hurry. Practically, it is the pattern a property manager wants on a toilet room, storage room or office door where someone could be shut in.
10) What lever designs and finishes does the Sargent 10-1120 come in?
Three lever designs, B, L and P, each offered in four finishes: 10 Satin Bronze clear coated, 10BE Dark Oxidized Satin Bronze, 26D Satin Chromium Plated over Nickel, and BSP Black Suede Powder Coat. That is twelve combinations total. Pick the lever shape to match the other openings in the building first, since all three carry the same four finishes.
11) What is a simpler keyed lever option instead of the Sargent 10-1120 for an office door?
For an office door where a keyed lever is enough and the pushbutton is not needed, the Cal-Royal AG00 entrance lever is Grade 2 with a 6-pin Schlage C keyway keyed different and a 2-3/8 inch backset, for 1-3/8 inch to 1-3/4 inch doors, and the Falcon B511CP6D is a Grade 2 medium duty entry/office cylindrical lever. Both key to their own systems rather than a standard Sargent cylinder, so they will not fold into an existing Sargent keying plan the way the 10X Line lever does.
12) Can I use a passage or dummy lever in place of the Sargent 10-1120 key-in-lever?
No, those are different jobs. Passage levers such as the Corbin Russwin CL3110 Grade 1 vandal resistant passage lever for 1-3/4 inch to 2 inch doors, the Falcon B101 Grade 2 passage lever and the Hager 2510 Grade 2 passage lever have no cylinder and no locking at all, and dummy trims such as the BEST 9K 1DT Grade 1 single dummy and the BEST 7KC 1DT Grade 2 single dummy are pull-only with no latch. The Sargent 10-1120 is keyed, with a standard Sargent 6-pin fixed core cylinder prep and push/turn button operation, so only a keyed lever substitutes for it.
13) What is the difference between the Sargent 10X key-in-lever and a privacy lever for a restroom?
A privacy lever such as the Hager 2540 Grade 2 privacy lock with Withnell lever, for 1-3/8 inch to 2 inch doors, or the Arrow MK02-TA privacy lock with tudor knob, locks from inside and releases with an emergency tool rather than a key. The Sargent 10-1120 combines both ideas: push/turn button with T-turn operation plus emergency release, and it takes a standard Sargent cylinder in 6-pin fixed core, so staff can key in from the corridor. Pick the privacy lever when no keyed override is wanted, the Sargent when it is.
14) Is there a keyless alternative to the Sargent 10-1120 for a door where I do not want to issue keys?
If the goal is to stop handing out keys, code-operated levers change the model: the Lockey 1150 is a heavy duty mechanical keypad lever set with double combination in passage function for 1-1/8 inch to 2 inch doors, and the Delaney LP250 is a Grade 2 electronic keypad leverlock. The Sargent 10-1120 works the other way, with a push/turn button and a standard Sargent 6-pin fixed core cylinder so it joins an existing key system across a facility.
15) Is the Sargent 10-1120 suitable for a school or hospital corridor, or is it a residential part?
Commercial. It is built for the 10X Line commercial cylindrical platform and is used in offices, schools, healthcare, retail, warehouses, multi-tenant residential and government buildings. If you are working a single-family house, the Grade 3 residential leversets like the Kwikset 200BRNL Breton are the lighter alternative and are not comparable in duty.
16) What do I need to check before installing the Sargent 10X key-in-lever?
Confirm the existing door prep first: door thickness within 1-3/8 to 2-1/4 inches, the bore and cross-bore match the 10X Line chassis, and handing where the design requires it. Sargent publishes the 10X Line cylindrical lockset installation instructions and a 10X Line parts manual, and the templates in those are what you mark and drill from. Working off the old trim's holes without checking against the template is how these come back.
17) What lever matches the Sargent 10X finishes if I am also doing decorative interior doors?
The Sargent 10-1120 comes in 26D satin chromium plated over nickel, 10 satin bronze clear coated, 10BE dark oxidized satin bronze and BSP black suede powder coat, in B, L and P lever designs. On decorative interior doors in the same building, Baldwin Estate 5103 with the 5048 rose is offered in passage, privacy and half dummy in both left and right hand, and Emtek Classic and Arts and Crafts leversets include dummy pairs. Those are separate finish programs from Sargent, so match by eye rather than by finish code.
