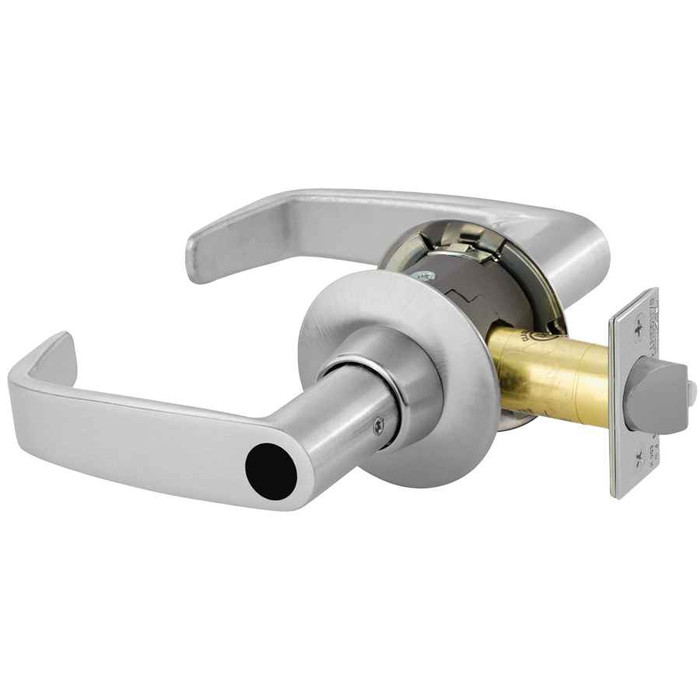

Sargent 11 Line Series - 11G04 Storeroom L Lever, Grade 1, LFIC with Disposable Plastic Core, 2-3/4in Backset, 808 ANSI Strike

Sargent 11 Line Series - 11G04 Storeroom L Lever, Grade 1, LFIC with Disposable Plastic Core, 2-3/4in Backset, 808 ANSI Strike

Sargent 11 Line

Sargent designed the 11 line to meet the needs of the most demanding facilities. The unique T-Zone construction easily exceeds ANSI/BHMA grade 1 requirements for torque and cycle testing, ensuring reliability in abusive applications. For resilience and ease of management, a single lock body serves all functions. Durable, flexible, reliable – this is a lock that lasts the life of your facility.

Features:

• Modular design; easy to change functions in the field
• Integrates into most existing facility’s key systems - accepts Sargent key systems including Degree and signature; also accepts SFIC and Schlage and Medeco LFIC
• UL Cycle above and beyond test completed at 7.6 million cycles (verification ID: V584148)
• Fits standard 161 door prep and is non-handed
• Simple cylinder removal
• Made from 68% post-consumer recycled content as per LEED MR credit 4
• Expansive hardware finish offering
• Part of the STC acoustical door systems from ASSA ABLOY group brand security metal products (SMP)
• Durable and Reliable: Independently-verified cycle testing proves the 11 line will last the lifetime of the facility. No through bolts or surface screws to be installed improperly or forgotten; T-Zone construction prevents the lock from twisting
• Flexible: Integrates with numerous key systems and utilizes one lock body for multiple functions, simplifying facility maintenance
• Lower Cost of Ownership: Fewer inventoried parts combined with a high number of opening cycles results in less time and frequency for maintenance and reduced overall expenses
• Safe and Secure: Torque resistant construction provides ability to withstand tough environments to keep occupants and property safe and secure
• Sustainable: Contributes to your sustainability efforts - fewer lock replacements due to long life and high post-consumer recycled content
• Healthy Environment: MicroShield coating available; supplements your cleaning protocol for a healthier environment

Specifications:

• ANSI/BHMA Code: A156.2
• ANSI/BHMA Series: Series 4000
• Backset Depth (Standard): 2-3/4" (70mm) standard. 3-3/4" (95mm) backset (specify 23- option). 5" (127mm) backset (specify 25- option)
• Bearing Assembly: Cast and machined stainless steel
• Cylinder: Brass, 6-pin LA keyway, 1-bitted standard, specify KD for keyed different/random
• Door Thickness (Standard): 1-3/4" to 2" (44mm to 51mm) thick doors standard
• Handing: Non-handed
• Latchbolt Throw: Stainless steel bolt 7/8" (22mm) dia. x 1/2" (13mm) throw. Optional: Brass 3/4" (19mm) throw deadlocking fire latch for pair of doors (specify 41- option)
• Keys: Two nickel silver change keys per lock standard
• Minimum Stile:
• 4-1/4" (108mm) with B and O roses
• 4-1/2" (114mm) with E and L roses
• Strike Type (Standard):
• Wrought brass, bronze or stainless steel
• 800 curved lip strike standard
• 808 ANSI curved lip strike (specify 28- option)
• Wrought box strike (specify WBS- option)
• Warranty: 10-year limited warranty

Lever & Rose Designs:

• OL Design:
• Rose: O - Wrought
• Lever: L - Cast
• LJ Design:
• Rose: L - Wrought
• Lever: J - Cast
• EB Design:
• Rose: E - Wrought
• Lever: B - Cast
• BP Design:
• Rose: B - Wrought
• Lever: P - Cast

Single Cylinder Functions:

• 11G04 - Storeroom or Closet:
• ANSI F86
• Deadlocking latch
• Latchbolt by lever inside or key outside
• Outside lever rigid at all times
• 11G05 - Entrance or Office:
• ANSI F81
• Deadlocking latch
• Latchbolt by either lever unless outside lever is locked by turn button in inside lever
• Turn button must be released manually
• Key only retracts latchbolt when outside lever is locked
• 11G24 - Entrance or Office:
• ANSI F82
• Deadlocking latch
• Latchbolt by either lever unless outside lever is locked by push button in inside lever
• Push button released by key or turning inside lever
• Closing door does not unlock outside lever or release button
• 11G37 - Classroom:
• ANSI F84
• Deadlocking latch
• Latchbolt by either lever unless outside lever is locked by key
• Key in outside lever locks or unlocks outside lever
• Inside lever always operative
• 11G44 - Service Station:
• ANSI F92
• Deadlocking latch
• Latchbolt by either lever unless outside lever is locked by push button of inside lever
• Key retracts latchbolt when outside lever is locked
• Push button will not depress unless door is in closed position
• Push button released by turning inside lever or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
• 11G50 - Hotel, Dormitory or Apartment:
• ANSI F93
• Deadlocking latch
• Latchbolt by key outside and lever inside
• Outside lever always rigid
• Depressing push button when door is closed shuts out all keys except emergency key and projects visual occupancy indicator in cylinder face
• Push button will not depress unless door is closed in position
• Push button released by turning inside lever automatically reactivating all keys and retracting visual occupancy indicator
• Lock out key fixes push button in locked position, shutting out all keys except emergency
• Lock out key must be ordered separately (10-0042)
• 11G54 - Corridor:
• ANSI F90
• Deadlocking latch
• Latchbolt by either lever unless outside lever is locked by push button inside or key outside
• Rotating inside lever releases button
• Push button will not depress unless door is in closed position
• Key outside locks or unlocks outside lever and releases inside button

Double Cylinder Functions:

• 11G16 - Classroom, Security, Apartment, Exit, Privacy:
• ANSI F88
• Deadlocking latch
• Latchbolt by either lever unless outside lever is locked by key in inside lever
• Key in outside lever only retracts latchbolt when outside lever is locked
• 11G17 - Utility, Asylum or Institutional:
• ANSI F87
• Deadlocking latch
• Both levers rigid at all times
• Latchbolt by key either side
• Use only on rooms with more than one exit
• 11G30 - Communicating:
• ANSI F80
• Deadlocking latch
• Latchbolt by either lever
• Key in either lever locks or unlocks its own lever only
• Use only on rooms with more than one exit
• 11G38 - Classroom Security Intruder:
• Deadlocking latch
• Latchbolt by either lever unless outside lever is locked by key
• Key in either lever locks or unlocks outside lever
• When inside key locks the outside lever only the inside key can unlock the outside lever. The outside key only retracts the latchbolt until outside lever is unlocked by inside key
• Inside lever always operable
• Locking direction indicated on inside rose standard with this function. Available on rose designs E, L and O

Non-Cylinder Functions:

• 11G13 - Exit:
• ANSI F89
• Deadlocking latch
• Latchbolt by inside lever
• Outside lever rigid at all times
• 11U15 - Passage:
• ANSI F75
• Latchbolt by either lever
• 11G15-3 - Exit or Communicating:
• Deadlocking latch
• Blank rose outside
• Latchbolt by lever inside
• Minimum clearance of 1-1/4" (32mm) required between doors
• 11U65 - Privacy/Bathroom:
• ANSI F76A
• Latchbolt by either lever unless outside lever is locked by push button in inside lever
• Turning inside lever or closing door releases button
• Emergency button in outside lever unlocks, with use of a blade screw driver in outside lever and releases inside button
• 11U68 - Hospital Privacy:
• Latch by either lever unless outside lever is locked by push button in inside lever
• Turning inside lever or closing door releases button
• Rotating thumbturn in outside lever unlocks the outside lever and releases the inside button
• Not available in the “J” lever design
• 11U93 - Single Lever Pull:
• For wood or custom hollow metal doors
• Lever and rose attached by through-bolt and four surface applied screws (hidden)
• Requires 5/16" (8mm) diameter hole
• 11U94 - Double Lever Pull:
• For wood or custom hollow metal doors
• Lever and rose both sides joined by one through-bolt and four surface applied screws each side (hidden)
• Requires special door preparation
• 11U94-2 - Double Lever Pull:
• For 161 and ANSI A115.2 prepared doors
• Lever and rose both sides joined by aligning tube and latchbolt tube
• Dummy latch plate

Finishes:

• 03/605 - Polished brass, clear coated
• 04/606 - Satin brass, clear coated
• 09/611 - Polished bronze, clear coated
• 10/612 - Satin bronze, clear coated
• 10B/613 - Oxidized bronze, oil rubbed
• 10BE/613E - Dark oxidized satin bronze - equivalent
• 10BL/613L - Oxidized satin, bronze, clear coated
• 14/618 - Polished nickel, clear coated
• 15/619 - Satin nickel, clear coated
• 20D/624 - Statuary dark bronze, clear coated
• 26/625 - Polished chrome
• 26D/626 - Satin chrome
• BSP - Black suede powder coat
• WSP - White suede powder coat
