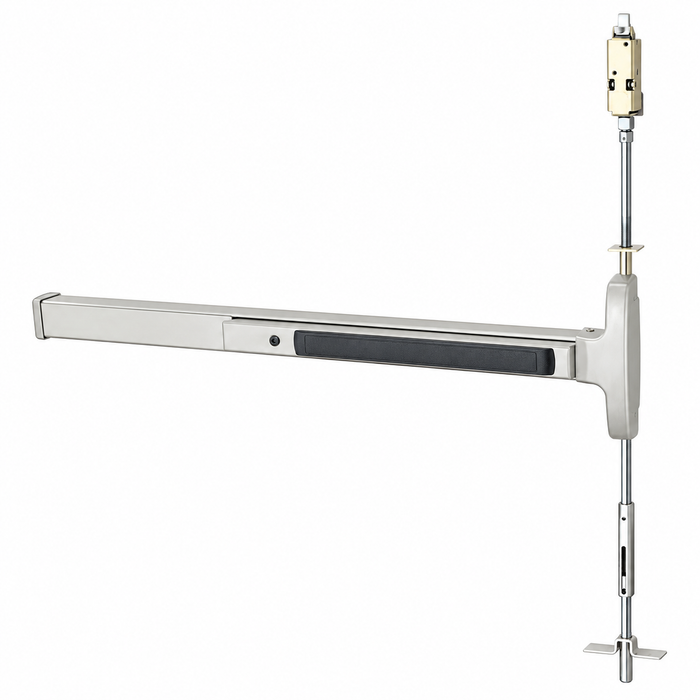

Sargent 12-19-MD8415G Passage Function Concealed Vertical Rod Exit Device with Fire Rating

Sargent 12-19-MD8415G Passage Function Concealed Vertical Rod Exit Device with Fire Rating

(No reviews yet) Write a Review

Model: SGT-12-19-MD8415G
From the 8400 Series Collection
$5,695.00
$3,151.67
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$5,695.00
$3,151.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 12-19-MD8415G Passage Function Concealed Vertical Rod Exit Device with Fire Rating

Professional Fire-Rated Exit Device Solution

The Sargent 8600 Series Concealed Vertical Rod Exit Device delivers professional-grade security and fire safety for classroom applications. Designed for hollow metal doors with 1-3/4" to 2-1/4" thickness and 4-1/2" minimum stile width, this fire-rated device accommodates door widths from 24" to 48" with factory-cut rails. Features stainless steel top bolt construction and mounts at 41" centerline from finished floor for standard applications or 38" for elementary schools to meet accessibility standards.

Professional Features & Benefits

  • Door Compatibility: Designed for hollow metal doors 1-3/4" to 2-1/4" thick with 4-1/2" minimum stile width for versatile installation options.
  • Rail System Options: Four rail sizes accommodate door widths from 24" to 48" - E Rail (24"-32"), F Rail (33"-36"), J Rail (37"-42"), and G Rail (43"-48") with factory cutting available.
  • Fire-Rated Construction: Fire-rated design with 650 Top Strike and 606 Bottom Strike for panic and fire-rated applications ensuring code compliance.
  • Stainless Steel Components: Stainless steel top bolt provides exceptional durability and corrosion resistance for long-term reliability in commercial applications.
  • Flexible Mounting Heights: Standard 41" centerline mounting or 38" for elementary schools and accessibility compliance when used with 100 Series Auxiliary Control.
  • Concealed Vertical Rod Design: Concealed vertical rod mechanism provides clean aesthetics while maintaining full exit device functionality and security.
  • Electric Options Available: Compatible with AL-Alarm, BT-Beacon, PL-SARGuide Photoluminescent, TL-SARGuide Illuminated Touchpad, and monitoring options 53-59 for enhanced functionality.
  • Classroom Function: Specifically configured for classroom security applications with appropriate locking and access control features for educational environments.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness (1-3/4" to 2-1/4"), stile width (4-1/2" minimum), and door opening height (120" maximum).
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and frame surfaces, ensuring proper centerline height (41" standard or 38" for elementary applications).
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions for concealed vertical rod installation.
  4. Install 650 Top Strike and 606 Bottom Strike components, then mount the center case (8-3/8" x 2-5/8") and rail system appropriate for door width.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion, verifying 3" neutral projection and 2-1/8" depressed projection.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Educational Facilities and Classroom Security
  • Commercial Office Buildings
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities
  • Fire-Rated Door Applications

Why Choose Sargent Quality?

Sargent 8600 Series exit devices deliver professional-grade reliability with stainless steel construction and fire-rated performance designed for demanding commercial applications. The concealed vertical rod design provides both security and aesthetic appeal while maintaining full compliance with fire safety requirements. Engineered for demanding commercial applications where dependable performance and fire safety are essential.

Product Specs

Series:
8400 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Concealed Vertical Rod
Subcategory:
Concealed Vertical Rod Exit Device
Commercial/Residential:
Commercial
Stile Type:
Narrow Stile
Lock Function:
Passage
Grade:
Grade 1
Model Series:
8400 Series
Product Model:
12-MD8415
Product Function:
Passage
Product Category:
Exit Devices and Trim
Collection:
8400 Series
Department:
Door Hardware
Door Thickness Range:
1-3/4" to 2-1/4"
Device Length:
48"
Door Height:
96"
Trim Design:
P Lever

Sargent SGT-12-19-MD8415G – Frequently Asked Questions

1) What handing do I need to order for a Sargent MD8415 concealed vertical rod device?
Handing is a required choice, and it is not field reversible on your order form. The MD8415G is ordered either LHR (left hand reverse) or RHR (right hand reverse). Stand outside the opening: an exit device door swings out toward you, so the hinge side as seen from the push side determines reverse handing. Get it wrong and the lever trim and latching will not line up.
2) My classroom doors are 36 inches wide. Which rail size do I specify on the Sargent 8400 concealed vertical rod device?
For a 36 inch door you want the F rail. The rail options cover 24 to 48 inch door widths: E rail for 24 to 32 inches, F rail for 33 to 36 inches, J rail for 37 to 42 inches, and G rail for 43 to 48 inches. Rails are factory cut, so the width has to be settled at order time rather than trimmed on site. The G suffix on the 12-19-MD8415G is the 43 to 48 inch rail, matching the 48 inch device length.
3) Does a concealed vertical rod exit device need a mullion on a pair of doors?
No. A concealed vertical rod device latches at the head and at the threshold, through the 650 top strike and 606 bottom strike, so it secures a pair of doors without a center mullion. That is the main reason to choose a vertical rod over a rim device, which latches into a strike on the frame or mullion and needs something to catch at the center of a pair. The tradeoff is door prep: the rods run inside the door, so the door has to be prepped or ordered for concealed rod, where a rim device mounts on the face.
4) What does passage function mean on this Sargent exit device, and is it right for a classroom?
Passage means the outside lever is always unlocked, so the P lever trim retracts the latch at any time and the device is pure egress plus free entry. There is no keyed or locked state. If you need the ability to secure the classroom from entry, passage function is the wrong choice and you want a locking function instead. Use passage where the opening needs a lever pull and panic egress but no outside control, such as a corridor or stairwell exit that stays open during occupied hours.
5) Is the Sargent 12-19-MD8415G fire rated, and what grade is it?
It is a fire-rated device and carries a Grade 1 rating. The 650 top strike and 606 bottom strike are the components called out for panic and fire-rated applications. Note that fire-rated vertical rod devices cannot be dogged, so do not plan on holding this latch retracted mechanically for daytime traffic.
6) How high is the Sargent MD8415 exit device mounted, and can it go lower for an elementary school?
Standard mounting is a 41 inch centerline from finished floor. For elementary schools and accessibility reach, it mounts at 38 inches when used with the 100 Series Auxiliary Control. Confirm which height the drawings call for before the door is prepped, since concealed rod prep is not something you move afterward.
7) How far does this Sargent exit device project off the door face?
Projection is 3 inches at neutral and 2-1/8 inches when the touchpad is depressed. That matters where the door swings into a tight vestibule, a corridor clear width, or against a wall or adjacent leaf. The center case measures 8-3/8 x 2-5/8 inches.
8) Can I add alarm or monitoring options to the Sargent 8400 concealed vertical rod device?
Yes, several electrical options are available: AL alarm, BT beacon, PL SARGuide photoluminescent, TL SARGuide illuminated touchpad, and monitoring options 53 through 59. These are order-time suffixes, not field add-ons, so specify them with the device. Anything powered also means you need to plan a power transfer at the hinge or frame as part of the opening.
9) Is this device narrow stile, and will it work on an aluminum storefront door?
It is classed as narrow stile and needs a 4-1/2 inch minimum stile, but it is specified for hollow metal doors, not aluminum storefront. For a glass front or aluminum entrance you want a device built for that application. Door thickness also has to land between 1-3/4 and 2-1/4 inches.
10) What door height does the 48 inch Sargent MD8415G cover?
The ordered configuration is set up for 96 inch doors with a 48 inch device, which is the standard commercial opening height. Concealed vertical rods are cut to the door height, so a taller leaf is a different rod length and has to be specified that way. The device cannot exceed a 120 inch door opening height.
11) What finishes does the Sargent MD8415G concealed vertical rod device come in?
Two finishes: 32D satin stainless steel and 10B dark oxidized satin bronze, oil rubbed. Both are offered in LHR and RHR handing at the 48 inch device size for 96 inch doors. 32D is the usual match for institutional and school openings; 10B suits darker bronze hardware schedules.
12) What trim comes with the Sargent 12-19-MD8415G, and do I order the lever separately?
The trim design is the P lever, which is the pull-side lever that retracts the latch. Since the function is passage, that lever operates freely with no cylinder involved, so there is no keyway or cylinder to specify on this configuration.
