Sargent 25-P10 Heavy Duty Para...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$275.63
$194.94

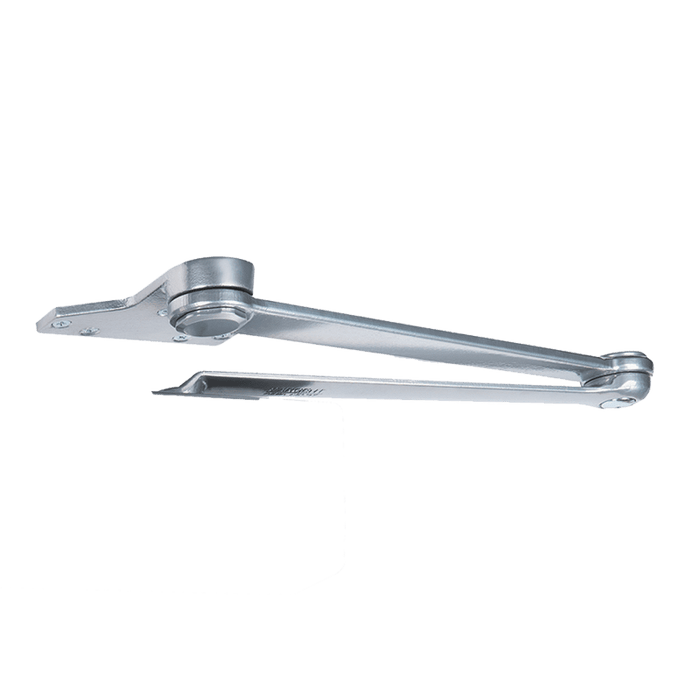

Sargent 25-P10 Heavy Duty Parallel Arm for 351, 281, Door Closers

Sargent 25-P10 Heavy Duty Parallel Arm for 351, 281, Door Closers

(No reviews yet) Write a Review
New Parts & Accessories Available!

Model: 25P10 EP
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$275.63
$194.94
Adding to cart… The item has been added
New Parts & Accessories
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent Heavy Duty Parallel Arm for 351, 281, 1431 Series Door Closers

Premium OEM Replacement Arm for Commercial Door Closer Applications

The Sargent Heavy Duty Parallel Arm delivers exceptional strength and smooth door operation for Sargent 351, 281, and 1431 Series door closers. This premium OEM replacement component is precision-engineered to Sargent's exact specifications, ensuring perfect fit and reliable performance in demanding commercial and institutional environments. Built from durable, high-quality materials, this parallel arm maintains consistent door control while withstanding frequent use in high-traffic areas.

Professional Features & Benefits

  • Series Compatibility: Designed specifically for Sargent 351, 281, and 1431 Series door closers for guaranteed fit and performance.
  • Heavy-Duty Construction: Built from durable, high-quality materials for extended service life in demanding commercial applications.
  • Parallel Arm Design: Engineered for parallel arm door closer installations, providing optimal door control and smooth operation.
  • Precision Engineering: OEM replacement ensures exact specifications and hassle-free installation with minimal setup time.
  • Commercial-Grade Quality: Ideal for schools, hospitals, office buildings, and retail facilities where reliable door control is essential.
  • Smooth Operation: Maintains consistent, controlled door movement and proper door alignment over extended service periods.
  • ADA Compliance Support: Supports accessibility compliance requirements when paired with compatible door closers.
  • High-Traffic Durability: Withstands frequent use in busy commercial and institutional environments.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

This replacement arm is designed for use with compatible Sargent 351, 281, and 1431 Series door closers. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Educational Facilities
  • Healthcare Institutions
  • Commercial Office Buildings
  • Retail Establishments
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities

Why Choose Sargent Quality?

Sargent parallel arm components deliver professional-grade reliability with heavy-duty construction and precision engineering to exact OEM specifications. Built for demanding commercial applications, this replacement arm ensures consistent door control and smooth operation in high-traffic environments. Engineered for demanding commercial applications where dependable performance and ADA compliance support are essential.

Product Specs

Grade:
Grade 1
Product Type:
Door Closer Arms
Duty Level:
Heavy Duty
Product Group:
Door Controls
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Product Category:
Door Controls
Department:
Door Hardware

Parts & Accessories

    Sargent 25P10 EP – Frequently Asked Questions

    1) Which Sargent door closers does the 25-P10 parallel arm fit?
    The Sargent 25-P10 is the heavy duty parallel arm for Sargent 351, 281 and 1431 Series door closers. It is an OEM replacement arm, so it goes back onto those closer bodies without modifying the closer. If the closer on your door is a different Sargent series, or another brand entirely, this arm is not the part.
    2) Does the 25-P10 arm come with a mounting plate or bracket for top jamb installation?
    No. The 25-P10 ships as the parallel arm itself. If your install needs a top jamb mounting plate, the Sargent 351A top jamb mounting plate is a separate part and has to be ordered alongside it. Check what is already on the frame before you order, since an existing closer that is only getting a replacement arm usually has the plate in place already.
    3) I need the door to hold open - does the Sargent 25-P10 do that?
    The 25-P10 is a heavy duty parallel arm for Sargent 351, 281 and 1431 Series closers, described as a parallel arm design for door control and smooth operation, with no hold-open function called out. Arms that are built to hold the door open are sold as distinct assemblies: the LCN 1250-3049/PA is a hold open arm assembly with parallel arm shoe and adjustable hold open, the LCN 4010-3049 is a hold open arm with an adjustable elbow function, and the Falcon SC70A-3049/PA is a hold open arm with PA bracket. Each of those is tied to its own closer series, so match the arm to the closer already on the opening.
    4) What is the LCN equivalent of the Sargent 25-P10 parallel arm?
    There is no cross-brand replacement for the Sargent 25-P10 in the sense of bolting an LCN arm onto a Sargent closer body - arms are matched to the closer they mount on. The 25-P10 is a heavy duty parallel arm for Sargent 351, 281 and 1431 Series closers. If the closer on the door is LCN, the arm is chosen by that closer's series instead: the LCN 1260-3077 is a regular arm with parallel arm bracket for 1260 Series closers, and the LCN 4000T-3077T is a standard arm replacement component for the 4000T Series. Identify the closer body first, then order the arm that belongs to it.
    5) My door is center hung on a floor pivot - will the Sargent 25-P10 work?
    No. The 25-P10 is a parallel arm for surface-mounted Sargent 351, 281 and 1431 Series closers, where the arm reaches from the closer body to a shoe on the door or frame. A center hung door pivoting on the floor uses a pivot and end load arm arrangement instead - the Falcon OHC100A-DP is a center hung floor pivot with end load arm for OHC100 Series overhead concealed closers. Confirm how the door is hung before ordering either one.
    6) What is the difference between a parallel arm and a regular arm on a commercial door closer?
    A parallel arm mounts the closer on the pull side of the door with the arm folding back flat along the face of the door, which keeps the arm out of the traffic path and protects it from abuse. A regular arm projects out perpendicular from the door on the push side. The 25-P10 is a parallel arm only, so it suits pull-side mounting on the Sargent 351, 281 and 1431 closers. If your opening needs the closer on the opposite face, you need the arm built for that mounting instead.
    7) Is the Sargent 25-P10 arm rated for high-traffic commercial openings?
    It's a Grade 1, heavy duty commercial component, which is the top ANSI/BHMA grade tier used for schools, hospitals, offices and other high-cycle institutional openings. That's the same duty class buyers standardize on across a facility, so it is a reasonable spare to stock if your buildings run Sargent 351, 281 or 1431 closers.
    8) What finishes does the Sargent 25-P10 parallel arm come in?
    Five sprayed enamel finishes, all intended to blend with existing closer bodies: EAB sprayed brass enamel, EN sprayed aluminum enamel, EP sprayed bronze enamel to match satin bronze, EB sprayed bronze enamel to match dark satin bronze, and ED sprayed bronze enamel to match dark statuary bronze. If you are replacing a damaged arm on an existing opening, order the code that matches the closer already on the door rather than guessing from the door hardware around it, since the three bronze options are deliberately different shades.
    9) Does the Sargent 25-P10 parallel arm include hold-open or a dead stop?
    The 25-P10 is a plain heavy duty parallel arm, not a hold-open or dead stop assembly. If the opening needs the door to stay open at a set point, or needs the arm to stop the door before it hits a wall, that's a different arm type. Comparable examples of those functions include the Falcon SC60A-3049DS hold-open dead stop parallel arm assembly and the LCN 1250-3049/PA hold open arm with parallel arm shoe, though both are for their own closer series, not Sargent.
    10) The door needs a stop built into the arm so it cannot swing into the wall - is the 25-P10 the right part?
    The Sargent 25-P10 is a plain heavy duty parallel arm for 351, 281 and 1431 Series closers; stop and hold-open features are not part of its description. Where the opening needs the arm itself to limit swing, that is a dead stop assembly - the Falcon SC60A-3049DS is a hold-open dead stop parallel arm assembly for SC60A Series closers. It is not interchangeable with a Sargent closer body, so on a Sargent opening the alternative is a separate overhead or floor stop alongside the 25-P10.
    11) What is the difference between the Sargent 25-P10 and a track arm like the Falcon 8230-3077PLCM?
    Two different mounting concepts. The 25-P10 is a heavy duty parallel arm - a jointed arm that mounts to a shoe on the door or frame for Sargent 351, 281 and 1431 Series closers. The Falcon 8230-3077PLCM is a standard arm with track for 8230 Series automatic door operators, where the arm rides in a channel rather than folding at an elbow. They are not substitutes for one another: the track version belongs to a powered operator in the 8200 Series, and the 25-P10 belongs to Sargent manual closers.
    12) Do I need a handed arm, or is a non-handed one available?
    The Sargent 25-P10 heavy duty parallel arm is offered by finish only - EAB sprayed brass enamel, EB and ED and EP sprayed bronze enamels, and EN sprayed aluminum enamel - with no left or right hand selection to make. Among comparable arms, the LCN 1250-3049/PA hold open arm assembly is specifically described as a non-handed design. For the 25-P10 the ordering decision is which closer series is on the door and which finish matches the rest of the hardware.
    13) If I replace a broken arm on a Sargent closer, will the door still meet ADA opening force requirements?
    The arm supports ADA compliance when paired with a compatible Sargent closer, but the opening force itself is set at the closer, not the arm. Replacing the 25-P10 restores the mechanical linkage; you still verify and adjust the closer's spring power and sweep after reinstalling, then measure opening force at the door to confirm your facility's requirement is met.
