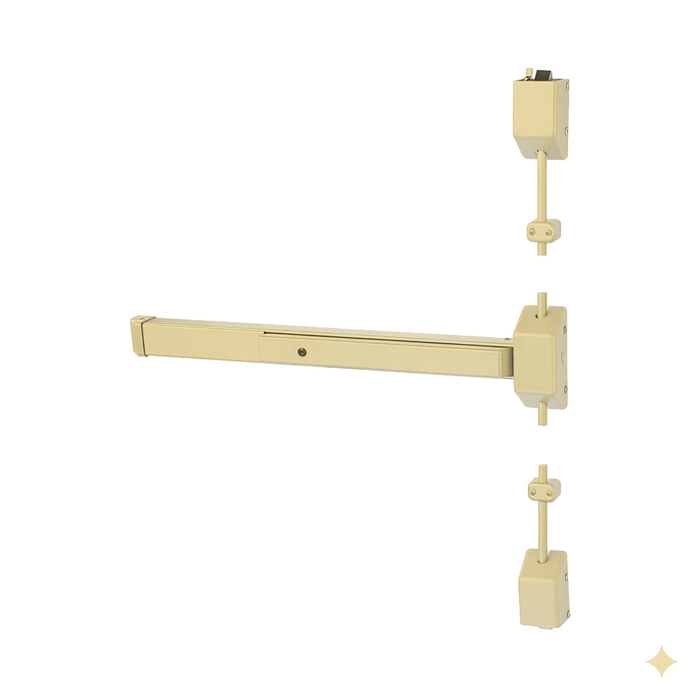

Sargent 3727 Grade 1 Surface Vertical Rod Exit Device with Standard Push Bar

Sargent 3727 Grade 1 Surface Vertical Rod Exit Device with Standard Push Bar

(No reviews yet) Write a Review
New Parts & Accessories Available!

Model: 3727E EN
$1,587.65
$830.81
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,587.65
$830.81
Adding to cart… The item has been added
New Parts & Accessories
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 3727 Grade 1 Surface Vertical Rod Exit Device with Standard Push Bar for 96" Doors

Professional Grade 1 Exit Device Solution

The Sargent 3727 Series delivers ANSI/BHMA Grade 1 performance in a reversible surface vertical rod exit device design. Engineered for doors up to 96" in height with a minimum door width of 48", this rugged pushpad exit device features steel endcaps and covers for exceptional durability. The standard pushpad extends slightly more than half the length of the full device and is suitable for both single and double door applications with 3-hour fire rating certification.

Professional Features & Benefits

  • Door Compatibility: Designed for doors up to 96" height with minimum 48" width for versatile commercial applications.
  • Grade 1 Performance: ANSI/BHMA Grade 1 certification ensures heavy-duty reliability for high-traffic commercial environments.
  • Heavy-Duty Construction: Rugged design with steel endcaps and covers engineered to withstand abuse in demanding applications.
  • Fire Safety Compliance: 3-hour fire rating provides critical life safety protection in fire-rated door assemblies.
  • Versatile Installation: Non-handed reversible design accommodates both single and double door configurations for flexible specification.
  • Professional Aesthetics: Attractive design featuring tapered push rail and angled covers for modern commercial appearance.
  • Extended Push Surface: Pushpad extends more than half the device length for improved accessibility and ease of operation.
  • Manufacturer Warranty: 3-year limited warranty provides added confidence and protection for commercial installations.

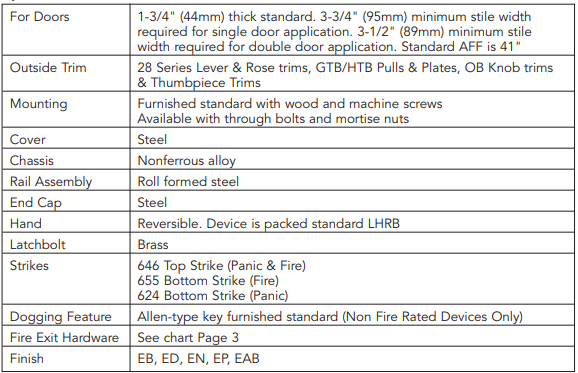

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent 3727 Series exit devices deliver professional-grade reliability with rugged steel construction and ANSI/BHMA Grade 1 certification for demanding commercial applications. The 3-year limited warranty and 3-hour fire rating demonstrate Sargent's commitment to life safety and long-term performance. Engineered for demanding commercial applications where dependable egress performance is essential.

Manufacturer Resources

SARGENT Full Line Catalog

Product Specs

Series:
30 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Vertical Rod
Product Type:
Exit Devices - Surface Vertical Rod
Subcategory:
Concealed Vertical Rod Exit Device
Commercial/Residential:
Commercial
Stile Type:
Wide Stile
Lock Function:
Exit Only
Grade:
Grade 1
Model Series:
30 Series
Product Model:
3727
Product Function:
Exit Only
Product Category:
Exit Devices and Trim
Department:
Door Hardware

Parts & Accessories

    Sargent 3727E EN – Frequently Asked Questions

    1) Is the Sargent 3727 fire rated, and do I have to order a specific version?
    Both. The 3727 is offered as a fire rated device carrying a 3-hour rating, and also as a non-fire-rated (panic) device. Fire Rated Yes or No is a selection you make when ordering, in any of the four sizes and all five finishes. On a labeled opening you must take the fire rated version, and it will not have dogging, since fire exit hardware cannot be held retracted.
    2) Is the Sargent 3727 handed, or is one device good for both left and right doors?
    Non-handed. The 3727 is a reversible surface vertical rod device, so the same unit works on a left or right hand door and on either leaf of a pair. You do not specify handing on the order, only size, finish and whether it is fire rated.
    3) Can the Sargent 3727 secure a pair of doors without a center mullion?
    Yes. A surface vertical rod device latches at the head and the sill rather than into a strike on the frame's edge, so two 3727 devices, one on each leaf, secure a pair with no mullion in the opening. That is the usual reason to pick vertical rod over a rim device: a rim device on a pair needs a removable mullion such as the Sargent 980 or, on a fire rated pair, the 12-980.
    4) I need a vertical rod device that accepts outside trim - does the Sargent 3727 work?
    The Sargent 3727 is an exit only device, meaning egress from the push side without outside operating trim. If the door needs keyed or lever entry from the pull side, look at devices listed as accepting trim: the Corbin Russwin ED5400 is Grade 1 wide stile, exit only or accepts trim, the ED4400 is the narrow stile equivalent, and the ED7400 narrow stile crossbar accepts operator trim.
    5) My aluminum storefront door has a narrow stile - can I use the Sargent 3727?
    The Sargent 3727 is a wide stile device, so a narrow stile aluminum door calls for a narrow stile chassis instead. Narrow stile surface vertical rod options include the Adams Rite 8200 Series in 30 inch, the Corbin Russwin ED4400 Grade 1 for 36 inch doors, the Von Duprin 3327A in 3 ft with a grooved case, the Von Duprin 7527 in 3 ft, and the Falcon 19-V-EO Grade 1 in 36 inch exit only. The Arrow S1150 is listed for narrow or wide stile.
    6) What is the closest cross-brand equivalent to the Sargent 3727 surface vertical rod exit device?
    The Sargent 3727 is a Grade 1 wide stile surface vertical rod exit device with an exit-only function. Peers matching that combination include the Von Duprin 2227-3FT, a Grade 1 wide stile surface vertical rod device for 36 inch doors, the Falcon 25-V-EO in 3 ft wide stile Grade 1 exit-only form, and the Corbin Russwin ED5400, a Grade 1 wide stile surface vertical rod device for 36 inch doors. The TownSteel ED8927 in 36 by 84 inch is also ANSI Grade 1 wide stile.
    7) I need a fire rated vertical rod exit device but not the Sargent 3727 - what else is fire rated?
    The Sargent 3727 is offered in fire rated form. Other fire rated surface vertical rod devices include the Adams Rite 3100 Series in 30 inch, Grade 1 wide stile for 1-3/4 inch doors; the Arrow S1150 in 30 inch, which fits narrow or wide stile and is exit only; and the TownSteel EF9727 in 36 by 84 inch, ANSI Grade 1 heavy duty wide stile and wood door compatible. Many other vertical rod devices in the class are not fire rated, so confirm the rating before ordering for a labeled opening.
    8) Is the Sargent 3727 Grade 1, and what does that mean for a high traffic entrance?
    ANSI/BHMA Grade 1, the heaviest commercial rating, which is what you want on school, hospital and retail egress doors that cycle all day. Construction is steel endcaps and covers on a pushpad device.
    9) What finishes does the Sargent 3727 come in, and can I match existing doors?
    Five sprayed enamel finishes across all four sizes: EAB sprayed brass, EB sprayed bronze to match dark satin bronze, ED sprayed bronze to match dark statuary bronze, EN sprayed aluminum, and EP sprayed bronze to match satin bronze. If your other openings are dark bronze hardware, EB or ED are the matching choices; EN is the one to use alongside clear aluminum storefront.
    10) Which device size do I order for the Sargent 3727?
    Four device lengths: 32, 36, 42 and 48 inches. The size is the device length, chosen to suit the door leaf width, and the pushpad runs slightly more than half the device length. All four lengths are available fire rated or non-fire-rated and in all five enamel finishes.
    11) Is there a lighter duty or Grade 2 alternative to the Sargent 3727 for a low traffic door?
    The Sargent 3727 is ANSI/BHMA Grade 1. If the opening does not need Grade 1, Grade 2 surface vertical rod devices include the Dexter ED2000 Series panic device and the TownSteel TS5100 Series in 36 by 84 inch, a heavy duty Grade 2 wide stile device. The Design Hardware 2000V in 33 inch is catalogued as a standard duty vertical rod device, alongside the heavier 1000V in 33 inch. None of those three are fire rated, so they are not substitutes on a labeled door.
    12) What is the difference between the Sargent 3727 push bar and a crossbar vertical rod device?
    The Sargent 3727 uses a pushpad that extends slightly more than half the device length, with a tapered push rail and angled covers. A crossbar device such as the Corbin Russwin ED7400 instead uses a horizontal bar across the door; that one is Grade 1 narrow stile, exit only and accepts operator trim. If you are matching the look of existing crossbar hardware on adjacent doors, the pushpad style of the 3727 will not blend with it.
    13) The TownSteel ED3727 has almost the same number as the Sargent 3727 - are they interchangeable?
    The model numbers are similar but the devices are not the same part. The Sargent 3727 is a wide stile Grade 1 surface vertical rod device offered in fire rated and non fire rated form. The TownSteel ED3727 in 36 by 84 inch is a Grade 1 narrow stile surface vertical rod device that is not fire rated. Stile type and fire rating both differ, so order by brand and full model, not by the 3727 digits alone.
    14) What reversible non-handed surface vertical rod devices compare to the Sargent 3727?
    The Sargent 3727 uses a non-handed reversible design that suits single and double door openings. Comparable non-handed or reversible devices include the BEST Precision 5201 Series in 36 inch, described as reversible, the Orca Hardware OED56 in 36 inch, a non-handed exit only device supplied less bottom rod, and the Von Duprin 2227-3FT, a non-handed Grade 1 wide stile device for 36 inch doors. Note the OED56 and 5201 are not fire rated.
