Sargent 5140 Series Old-Style Mortise Cylinder Core for 140 Series Lock Systems

Professional Mortise Cylinder Core Component

The Sargent 5140 Series old-style mortise cylinder core is specifically engineered for 140 Series lock systems, providing reliable keying solutions for commercial applications. This core-only component features integrated cam attachment and requires finish specification at time of ordering. Designed for professional locksmiths and facility managers requiring precise cylinder core replacement or system expansion.

Professional Features & Benefits

  • Series-Specific Compatibility: Engineered exclusively for 140 Series lock systems ensuring proper fit and function in existing installations.
  • Integrated Cam Design: Cams are factory-attached to the core for complete operational readiness upon installation.

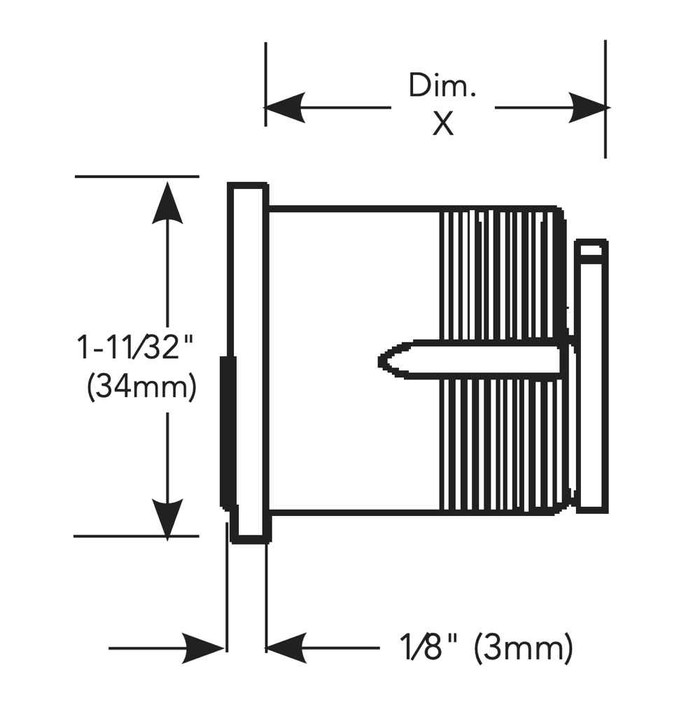

  • Professional Installation Ready: Core and cam dimensions are provided as installed configuration for accurate planning and installation.
  • Custom Finish Options: Multiple finish options available to match existing hardware and architectural requirements when specified at ordering.
  • Commercial-Grade Construction: Built to Sargent quality standards for demanding commercial and institutional applications.
  • Locksmith-Friendly Design: Core-only format allows for efficient cylinder service and key system management.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

This cylinder core component is designed for use with compatible 140 Series mortise lock systems. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Government and Municipal Buildings
  • Multi-Tenant Residential Properties
  • Industrial and Warehouse Facilities
  • Retail Establishments

Why Choose Sargent Quality?

Sargent 5140 Series cylinder cores deliver professional-grade reliability with precision-engineered construction specifically designed for 140 Series compatibility. Factory-attached cams and multiple finish options ensure proper integration with existing lock systems. Engineered for demanding commercial applications where dependable keying performance is essential.

Product Specs

Product Type:
Cylinders
Product Group:
Mechanical Locks
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Collection:
Conventional Key System
Series:
140 Series
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Department:
Door Hardware

Sargent SGT-5140 – Frequently Asked Questions

1) What lengths does the Sargent 5140 mortise cylinder core come in?
The 5140 mortise cylinder core is offered in four lengths: 1-1/4, 1-3/8, 1-1/2 and 1-3/4 inches. Length is driven by door thickness and how far the lock case sits back from the face of the door, so measure the cylinder you are pulling out before you order. On a standard 1-3/4 inch commercial door a 1-1/4 inch cylinder is the common starting point, with the longer sizes used on thicker doors or where trim adds depth.
2) Does the Sargent 5140 cylinder come with a cam, or do I need to order one separately?
The cam is factory-attached to the 5140 core, so nothing extra is needed to make it operate the lock. The published core length is the as-installed configuration with the cam on it.
3) Can I get the 5140 keyed alike with the other cylinders in my building?
Yes. Keying is a required selection on the 5140: standard keying, KD (keyed different), or KA (keyed alike). Choose KA when a group of openings should share one key, KD when every door gets its own. For a property manager standardizing a floor or a wing, KA is the option to specify at order time.
4) Is the Sargent 5140 a small format interchangeable core or a conventional cylinder?
It is a conventional key system cylinder, not an interchangeable core. That means it is pinned to a standard Sargent conventional keyway and is removed by backing the cylinder out of the lock case rather than pulling a core with a control key.
5) What finishes does the Sargent 5140 cylinder come in to match my existing trim?
Fourteen finishes are available: 03 bright brass, 04 satin brass, 09 bright bronze, 10 satin bronze, 10B oil rubbed dark oxidized satin bronze, 10BE, 10BL, 14 bright nickel, 15 satin nickel, 20D dark statuary bronze, 32 bright stainless, 32D satin stainless, plus BSP black suede and WSP white suede powder coat. Finish has to be specified when you order, since only the cylinder face shows against the escutcheon or rose.
6) I just need to rekey a door, not replace the whole mortise lock. Is the 5140 what I order?
Yes. The 5140 is a core-only replacement part, so you keep the existing 140 Series mortise lock case and trim and swap only the cylinder. Specify length, finish and keying and the lock body stays in the door.
7) Is the Sargent 5140 cylinder suitable for high-traffic commercial and institutional doors?
Yes, it is a commercial-rated part. Typical use is office buildings, schools, healthcare, government buildings, multi-tenant residential, warehouses and retail, where a keyed cylinder gets serviced or rekeyed on a schedule.
