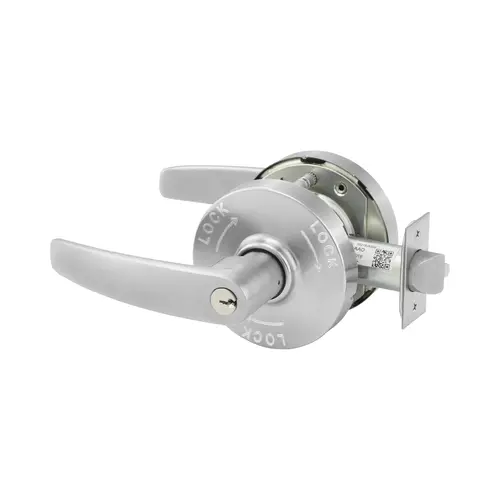

Sargent 6310XG Grade 1 Cylindrical Lever Lock with Large Format Core and LA Keyway

Sargent 6310XG Grade 1 Cylindrical Lever Lock with Large Format Core and LA Keyway

(No reviews yet) Write a Review

Model: 6310XG04LB26D
$1,142.21
$655.35
Selected Finish is
Selected Lever is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,142.21
$655.35
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 10X-Line Grade 1 Cylindrical Lever Lock with Large Format Core and LA Keyway

Superior Grade 1 Bored Lock with Enhanced Security Performance

The Sargent 10X-Line cylindrical lever lock delivers professional-grade security with Grade 1 ANSI/BHMA certification and performance that exceeds standard requirements by up to 20 times. This heavy-duty lock features a large format core with LA keyway configuration and includes an ASA strike for complete installation. The 10X-Line withstands more than 3,100 in-lb locked lever torque and 1,600 lbs offset lever pull while maintaining reliable operation under extreme conditions.

Professional Features & Benefits

  • Exceptional Torque Resistance: Prevents entry against more than 3,100 in-lb locked lever torque, providing 2.6 times ANSI/BHMA A156.2 requirements for superior security.
  • Heavy-Duty Pull Resistance: Withstands 1,600 lbs offset lever pull (8 times ANSI/BHMA requirements) while continuing to restrict unauthorized entry.
  • Enhanced Latch Performance: Ensures reliable latch retraction with 100lb preload (2 times ANSI/BHMA standard) for consistent operation even in warped doors or binding conditions.
  • Impact Resistance: Prohibits entry after more than 100 vertical impacts, exceeding ANSI/BHMA requirements by 20 times for exceptional vandal resistance.
  • Universal Cylinder Compatibility: Lockbody design supports all cylinder formats from fixed to interchangeable core, including compatibility with Degree, Signature, and KESO security key systems.
  • Innovative Button Design: Push/turn button configuration prevents damage from door stops and walls while maintaining smooth operation.
  • Comprehensive Function Options: Available in 26 mechanical functions with 14 finishes and multiple lever designs to meet diverse application requirements.
  • Optional Anti-Microbial Protection: Microshield® antimicrobial coating available for enhanced hygiene in healthcare and high-touch environments.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Anti-Microbial Option

Microshield® antimicrobial coating available for enhanced hygiene in healthcare and high-touch environments where contamination control is critical.

Why Choose Sargent Quality?

Sargent 10X-Line cylindrical locks deliver professional-grade reliability with rigorous testing that surpasses ANSI/BHMA requirements by more than 20 times in key performance areas. The enhanced torque resistance of more than 3,100 in-lb, impact protection against more than 100 vertical impacts, and pull resistance of 1,600 lbs provide maximum vandalism protection while maintaining smooth operation. Engineered for demanding commercial applications where dependable security performance is essential.

Product Specs

Series:
10X Line Series
Grade:
Grade 1
Product Group:
Mechanical Locks
Product Subgroup:
Cylindrical Lever Locks
Subcategory:
Bored Locksets
Commercial/Residential:
Commercial
Product Type:
Leversets
Duty Level:
Heavy Duty
Electronic:
No
Product Category:
Mechanical Locks
Department:
Door Hardware

Sargent 6310XG04LB26D – Frequently Asked Questions

1) What's the difference between the storeroom and entry/office functions on the Sargent 6310XG lever lock?
Both functions are offered on the Sargent 6310XG. Storeroom/closet keeps the outside lever locked at all times, so the key is the only way in from the corridor side while the inside lever always gives free egress. Entry/entrance/office uses the push/turn button in the inside lever to hold the outside lever unlocked for business hours, then lock it back down without a key. Pick storeroom for supply rooms, mechanical rooms and IT closets; pick entry/office for suites and offices someone needs to unlock and relock daily.
2) Will the Sargent 6310XG work with the Sargent large format IC cores we already key our building on?
Yes. The 6310XG ships as a large format interchangeable core lock in the LA keyway, so it drops into an existing Sargent LA-keyed large format core system and takes the same cores you already stock. The 10X lockbody also accepts other Sargent cylinder formats from fixed through interchangeable core, including Degree, Signature and KESO security key systems, so you can migrate a facility without changing lock bodies.
3) Is a cylindrical lever lock strong enough for a high-abuse door, or should I be specifying a mortise lock?
For most abuse cases the 10X Line holds up: it resists more than 3,100 in-lb of locked lever torque (2.6 times the ANSI/BHMA A156.2 requirement), 1,600 lbs of offset lever pull (8 times the requirement), and more than 100 vertical impacts. It is a Grade 1 heavy duty bored lock, which installs into a simple cross-bore rather than a routed mortise pocket, so it is faster to retrofit and faster to service. Go to a mortise lock when you need a deadbolt in the same case or the specification calls for one outright.
4) What are my options if I need a Grade 1 storeroom lever but not Sargent's keyway?
Within Grade 1 cylindrical levers, the Corbin Russwin CL3100 Series is a vandal resistant option that carries a fire rating and fits 1-3/4 inch to 2 inch doors, the Falcon K Series is a Grade 1 heavy duty fire rated lock fitting 1-3/8 inch to 2-1/4 inch doors, and the Dexter C1000 Series covers Grade 1 classroom, classroom security and asylum functions. If the budget only supports Grade 2, the Cal-Royal AG05 is a storeroom lever with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors and the Hager 2580 is a Grade 2 storeroom lever for 1-3/8 inch to 2 inch doors. None of those will key into a Sargent LA system.
5) I need a non-keyed passage lever for the same corridor as my Sargent 6310XG locks. What should I use?
The Sargent 6310XG is keyed, using a large format core with the LA keyway, so it is not the part for a passage opening. For a non-keyed passage lever in the same Grade 1 heavy duty class, the Falcon K101 is Grade 1 heavy duty passage with non-handed levers, fire rated, for 1-3/8 inch to 2-1/4 inch doors; the Falcon T101 is Grade 1 heavy duty passage with pressure release technology; and the Corbin Russwin CL3110 is Grade 1 vandal resistant passage/closet, fire rated, for 1-3/4 inch to 2 inch doors. Design Hardware X75 is a Grade 1 passage lever for 1-3/4 inch doors.
6) The Sargent 6310XG does not come in a classroom function. What Grade 1 classroom lever should I order instead?
The Sargent 6310XG is offered in storeroom/closet and entry/entrance/office functions. For a classroom opening at the same Grade 1 level, the Dexter C1000 Series classroom lever is a Grade 1 clutching keyed lock for 1-3/8 inch to 1-3/4 inch doors, and the Dexter C1000 classroom security version adds inside keyed locking on the same platform. A Grade 2 alternative is the Cal-Royal AG03 classroom lever with a 6-pin Schlage C keyway and 2-3/4 inch backset.
7) I need an electrified version of the Sargent 6310XG for an access control door. What are my options?
The Sargent 6310XG is a mechanical lock with no electronic option. For an electrified cylindrical lever on a comparable Grade 1 platform, the Corbin Russwin CL33903 is a Grade 1 fail safe electrified cylindrical lever running 12VAC/DC for 1-3/4 inch to 2 inch doors, available with the NZ lever and D rose. For standalone credential control rather than wired access control, the Delaney LP250 is a Grade 2 electronic keypad leverlock.
8) My facility is keyed in Schlage C. Is the Sargent 6310XG still the right lock?
The Sargent 6310XG uses a large format core in the LA keyway, and its lockbody supports cylinder formats from fixed to interchangeable core including Degree, Signature and KESO systems. If the site must stay in a Schlage C conventional keyway, the Cal-Royal AG00 entrance lever and AG03 classroom lever are supplied with 6-pin Schlage C cylinders, and the Arrow MK33-BD-CS asylum lock is offered in the Schlage C keyway. For Yale hardware being brought into a Schlage-keyed system, the Accentra 107S is a Schlage cylinder adapter kit.
9) Is a strike included with the Sargent 6310XG, or do I need to order one separately?
An ASA strike comes with the lock, so a standard hollow metal frame prepped for ASA is covered without a separate line item. Only frames with a non-standard or wrap-around prep need a different strike ordered.
10) Which lever style should I order on the Sargent 6310XG, and do the finishes match across them?
Three lever designs are offered, B, L and P, and each one is available in both finishes: 26D satin chromium plated over nickel and BSP black suede powder coat. So you can standardize a building on one finish and still vary lever shape by area if you want. The broader 10X Line runs 14 finishes and multiple lever designs, so matching other Sargent openings in the same building is usually possible.
11) We keep breaking push buttons on locks that hit the door stop. Does the Sargent 6310XG have that problem?
No. The entry/office version uses a push/turn button designed so contact with a door stop or wall does not damage it, which is the usual failure on button-style office locks in tight corridors.
12) Does the Sargent 6310XG need power or wiring run to the door?
No. The 6310XG is a mechanical lock, not electronic, so it needs no wiring, no power supply and no transfer hinge. If you want an electrified cylindrical lock on the same series, Sargent publishes separate 10X Line electrified bored lock installation instructions; among other brands, the Corbin Russwin CL33900 Series is a fail safe Grade 1 electrified cylindrical lever at 12VAC/DC for 1-3/4 inch to 2 inch doors.
13) Can I match non-keyed openings in the same building to these Sargent locks?
The 6310XG itself is keyed, offered in storeroom/closet and entry/office. The 10X Line runs 26 mechanical functions overall, so passage, privacy and classroom openings in the same building can be specified in the same series, lever design and finish. If you are filling non-keyed doors from another brand, the Design Hardware X Series is a Grade 1 passage lever for 1-3/4 inch doors and the Falcon T Series is a Grade 1 heavy duty passage lever.
14) Is there a lighter duty lever lock I can use instead of the Sargent 6310XG on low traffic interior doors?
The Sargent 6310XG is specified as Grade 1 heavy duty for commercial openings. Where the traffic does not warrant Grade 1, the Falcon B511CP6D is a Grade 2 medium duty entry/office cylindrical lever, the Hager 2525 is a Grade 2 commercial cylindrical entry lock for 1-3/8 inch to 2 inch doors, and the Cal-Royal AG00 is an entrance lever with a 6-pin Schlage C keyway and 2-3/8 inch backset for 1-3/8 inch to 1-3/4 inch doors. Note the keying differs: the Sargent uses a large format core in the LA keyway rather than a Schlage C conventional cylinder.
15) Can I use a Baldwin 5103 or Emtek lever in place of a Sargent 6310XG?
They are different classes of hardware. The Sargent 6310XG is a Grade 1 commercial heavy duty cylindrical lever lock with a large format core. The Baldwin Estate 5103 is offered in passage, privacy and half dummy versions with a 5048 rose, and the Emtek Arts and Crafts and Cortina leversets are dummy pairs. Those are decorative or non-keyed trim and will not provide the keyed storeroom or entry function the Sargent performs, so they suit residential and decorative openings rather than a commercial keyed door.
16) I need a matching dummy lever for an inactive leaf next to my Sargent 6310XG openings. What Grade 1 dummy trim is available?
The Sargent 6310XG is a keyed cylindrical lock, not a dummy. For an inactive leaf in the same Grade 1 heavy duty class, the BEST 9K Series 1DT is a Grade 1 non-keyed heavy duty single dummy trim, and the Accentra 455LN Augusta is a Grade 1 heavy duty single dummy cylindrical lever from the 5400 Series. A Grade 2 medium duty option is the BEST 7KC Series 1DT single dummy trim. Confirm lever design and finish separately so the dummy visually matches the keyed locks on the adjacent leaf.
17) What should I use instead of the Sargent 6310XG on a restroom or patient room door?
The Sargent 6310XG is keyed in storeroom/closet and entry/office functions, neither of which provides inside privacy locking. For a privacy opening, the Hager 2540 is a Grade 2 privacy cylindrical lock with the Withnell lever for 1-3/8 inch to 2 inch doors, and the Arrow MK02-TA is a fire rated privacy/bed/bath cylindrical lock with a Tudor knob. For a utility or institutional room requiring key operation from both sides, the Dexter C1000 asylum function is Grade 1 for 1-3/8 inch to 2 inch doors and the Arrow MK33-BD-CS is a heavy duty asylum lock in the Schlage C keyway.
18) Does the Sargent 6310XG fit a 2 inch thick door, and what fits if it does not?
For a thicker door leaf, several comparable cylindrical locks state their range directly: the Falcon K101 Grade 1 passage covers 1-3/8 inch to 2-1/4 inch, the Corbin Russwin CL3110 Grade 1 covers 1-3/4 inch to 2 inch, and the Dexter C1000 asylum covers 1-3/8 inch to 2 inch. On thinner or standard leaves, the Hager 2510 and 2525 cover 1-3/8 inch to 2 inch and the Design Hardware X75 is built for 1-3/4 inch doors. Confirm the door thickness against the Sargent 10X Line installation instructions before ordering.
19) Is a Kwikset or Callan lever an acceptable substitute for a Sargent 6310XG in an apartment building?
It depends which doors. The Sargent 6310XG is a Grade 1 heavy duty commercial lock, the class normally specified for corridor and common area openings. The Kwikset 200BRNL Breton passage and 300BRNL Breton privacy levers are Grade 3 for 1-3/8 inch to 1-3/4 inch doors, and the Callan Artino entrance and Asheville passage leversets are Grade 3, which places them on interior unit doors rather than shared commercial openings. For unit entry at a mid-grade level, the Callan Bennett is a Grade 3 entrance leverset with a deadbolt combo.
20) Can I put a Sargent 6310XG on an exit device as lever trim?
No. The Sargent 6310XG is a bored cylindrical lockset that installs in a standard cylindrical door prep with an ASA strike. Exit device lever trim is a separate part: the Corbin Russwin 585F715 is a Grade 1 lock lever for the ED8000 pushpad exit device on 1-3/4 inch to 2 inch doors, and the Imperial USA ED-EL500HD is heavy duty escutcheon lever trim in entry function for the ED-500 Series. Match the trim to the exit device family, not to the cylindrical lock.
21) Is there an antimicrobial version for patient rooms and clinical corridors?
Microshield antimicrobial coating is available on the 10X Line for healthcare and other high-touch areas. It is an option you call out when ordering, not the default finish, so specify it if contamination control is part of the spec.
22) What is the difference between the Sargent 6310XG and the Accentra 4601LN or 5301LN Augusta levers?
The Sargent 6310XG is a Grade 1 heavy duty keyed cylindrical lever lock in storeroom/closet and entry/office functions with a large format core. The Accentra 4601LN is a Grade 2 passage lever in the 4600 Series with Augusta trim, and the Accentra 5301LN Augusta is a Grade 2 passage/closet lever in the 5300 Series. Both Accentra units are non-keyed passage locks, so they latch the door without securing it; the Sargent is the choice when the opening must be locked and keyed.
