Sargent 65G05 Office Function Single Cylinder Grade 2 Cylindrical Lock with Standard Duty Construction

Sargent 6500 Series Grade 2 Office Function Cylindrical Lock with 2-3/4" Backset

Professional Grade 2 Cylindrical Lock Solution

The Sargent 6500 Series 65G05 delivers professional-grade security with ANSI/BHMA Grade 2 certification for commercial applications. This non-handed cylindrical lock features standard duty construction with 2-3/4" backset depth and accommodates door thickness from 1-3/8" to 1-3/4". The lock includes a 1/2" latchbolt throw and comes with 2 keys, designed to exceed Grade 2 standards with UL-cUL fire rating up to 3 hours and hurricane code compliance for reliable performance.

Professional Features & Benefits

• Door Compatibility: Accommodates door thickness from 1-3/8" to 1-3/4" with standard 2-3/4" backset depth for versatile installation options.
• Grade 2 Certification: ANSI/BHMA A156.2 Series 4000 Grade 2 certified construction ensures reliable performance in commercial applications.
• Fire Rating Certification: UL-cUL Fire-Rated up to 3 hours with NFPA 80 compliance for critical fire safety applications.
• Hurricane Code Compliance: Rugged design passes tests to comply with hurricane codes and Florida Building Code requirements for enhanced occupant safety.
• Non-Handed Design: Universal installation eliminates handing requirements for simplified inventory management and installation flexibility.
• Key System Compatibility: Available with most Sargent key systems including Degree, Signature, and XC for integrated access control.
• ADA Compliance: Americans with Disabilities Act compliant design with ICC A117.1 certification ensures accessibility requirements are met.
• Manufacturer Warranty: 1-year limited warranty provides confidence and protection for commercial installations.

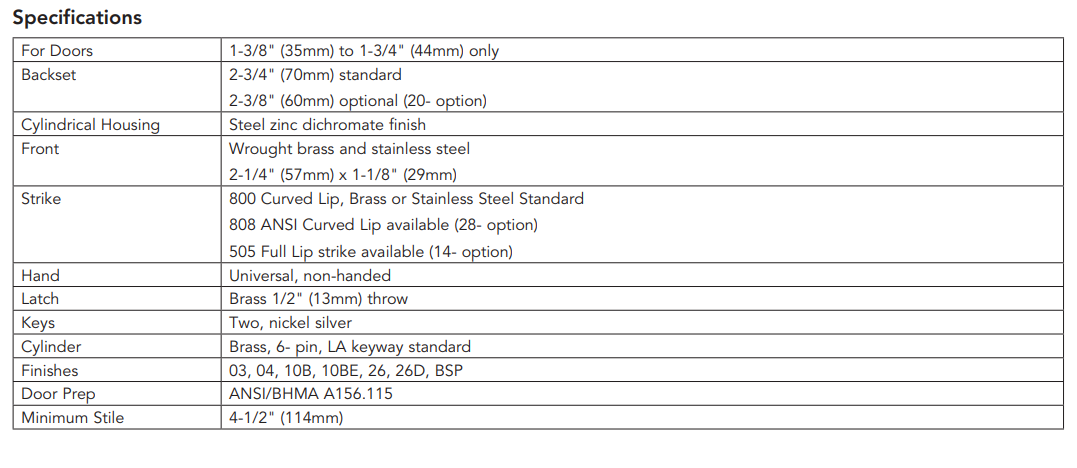

Technical Specifications

• Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness from 1-3/8" to 1-3/4", backset depth of 2-3/4", and non-handed installation compatibility.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door surfaces for modified 161 door prep.
3. Prepare door by drilling required holes and routing as specified in manufacturer instructions for cylindrical lock installation.
4. Install all mounting hardware and secure the lock to door per manufacturer torque specifications, ensuring proper alignment of latchbolt and strike.
5. Adjust operational components for proper alignment, latching, and smooth operation with 1/2" latchbolt throw throughout the full range of motion.
6. Test lock operation with provided keys to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent 6500 Series cylindrical locks deliver professional-grade reliability with rugged construction that passes hurricane code compliance testing and Florida Building Code requirements. The comprehensive certification portfolio including UL-cUL fire rating up to 3 hours, ANSI/BHMA Grade 2 standards, and ADA compliance demonstrates engineered quality for demanding commercial applications where dependable security performance is essential.
