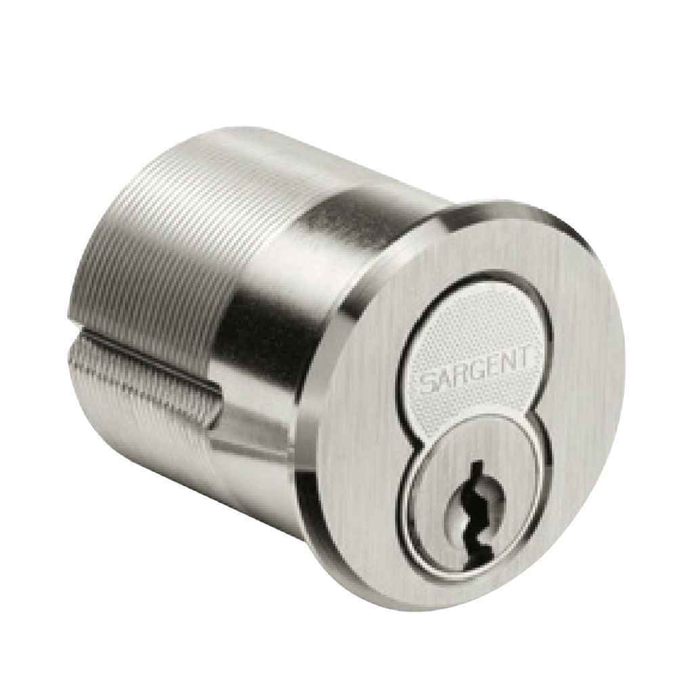

Sargent 73-SFMC Small Format Mortise Cylinder with 6 or 7 Pin Core Compatibility

Sargent Small Format Mortise Cylinder with 6/7 Pin Core Compatibility - 1-5/32" Diameter

Compact Mortise Cylinder Solution for Professional Applications

The Sargent Small Format Mortise Cylinder delivers professional-grade security in a compact design with 1-5/32" (29mm) diameter housing. Available in two cylinder sizes - #43 at 1-3/8" (35mm) length and #46 at 1-3/4" (44mm) length under cylinder head including cam. Features permanently staked cam construction and accepts both 6 and 7 pin cores for flexible keying options with multiple finish options including 3, 4, 9, 10, 10BE, 10BL, 20D, 26, 26D, and BSP.

Professional Features & Benefits

• Dual Size Options: Available in #43 (1-3/8" length) and #46 (1-3/4" length) configurations to accommodate various door thicknesses and applications.
• Compact Housing Design: 1-5/32" (29mm) diameter housing provides space-efficient installation in small format mortise applications.
• Flexible Core Compatibility: Housing accepts both 6 pin and 7 pin cores for versatile keying system integration and security levels.
• Permanent Cam Construction: Cam is permanently staked to housing for reliable long-term operation and tamper resistance.
• Professional Finish Options: Available in multiple finishes including 3, 4, 9, 10, 10BE, 10BL, 20D, 26, 26D, and BSP for architectural coordination.
• SARGENT Offset Cam: Exclusively available with SARGENT offset cam design for optimal compatibility with SARGENT mortise lock systems.
• Optional Accessories: Compatible with separately ordered collars and spacers for custom installation requirements.

Technical Specifications

• Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

• Commercial Office Buildings
• Educational Facilities
• Healthcare Institutions
• Retail Establishments
• Industrial and Warehouse Facilities
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent mortise cylinders deliver professional-grade reliability with permanently staked cam construction and precision-engineered housing design. Available in multiple finish options and core configurations to meet demanding commercial security requirements where dependable cylinder performance is essential.

Product Documentation & Resources

• [Catalog] SARGENT Full Line Catalog
