Sargent 8213-ET Grade 1 Heavy ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,410.81
$1,070.00
Sargent Sargent 8200 Series - (8213) Communication or Exit Function Escutcheon Trim, Non-Keyed Heavy Duty Mortise Lock, Grade 1 SGT-8213-ET

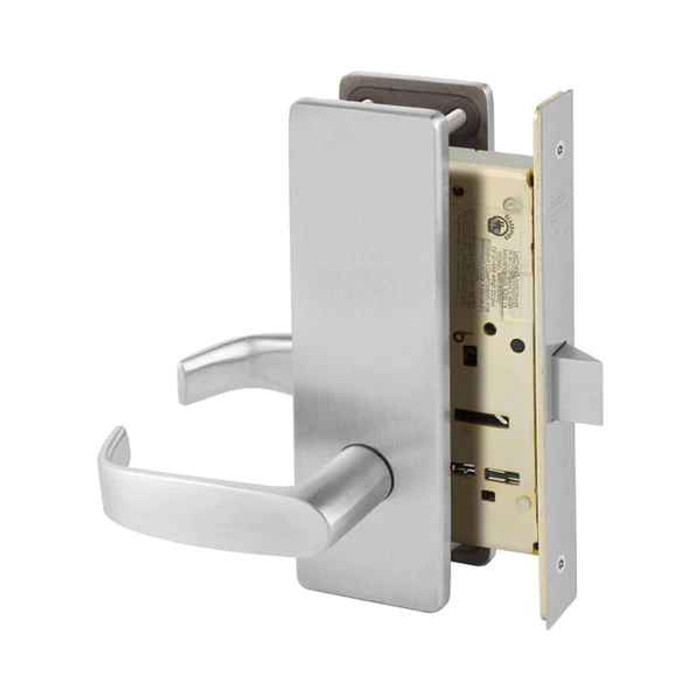

Sargent 8213-ET Grade 1 Heavy Duty Mortise Lock with Communication/Exit Function Escutcheon Trim

(No reviews yet) Write a Review

Model: 8213 LE1A 10BE
From the 8200 Series Collection
$1,410.81
$1,070.00
Selected Finish is
Selected Lever is
Selected Escutcheon is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,410.81
$1,070.00
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 8213-ET Grade 1 Heavy Duty Mortise Lock with Communication/Exit Function and 2 3/4" Backset

Industry Benchmark Mortise Lock with Maximum Security and Performance

The Sargent 8213-ET represents the industry benchmark for commercial mortise locks, delivering maximum security, performance, and durability with high-quality components. This Grade 1 heavy duty mortise lock features a 2 3/4" backset, 1 3/4" door thickness compatibility, and 3/4" latchbolt throw for reliable operation. The multi-functional lock body accommodates field reversible handing and integrates with all SARGENT key systems including Degree, Signature, KESO, and XC.

Professional Features & Benefits

  • Heavy-Duty Durability: UL cycle testing completed at 16 million cycles (Verification ID: V584148) far exceeds industry standards for long-term reliability in high-traffic applications.
  • Grade 1 Performance: ANSI/BHMA A156.13 Series 1000 Operational Grade 1 certification ensures maximum security and performance for commercial applications.
  • Flexible Installation: 2 3/4" backset depth with 1 3/4" door thickness and field reversible handing accommodates various door configurations.
  • Universal Key System Compatibility: Integrates with all SARGENT key systems (Degree, Signature, KESO, and XC) for comprehensive access control flexibility.
  • Multi-Functional Design: Available in 56 different functions including electromechanical, security and monitoring options with on-site function switching capability.
  • Fire-Rated Construction: UL 10C positive pressure fire-rated up to 3 hours with NFPA 80 compliance for life safety applications.
  • EcoFlex Technology: Electromechanical versions operate from 12 to 24VDC with EcoFlex technology reducing power consumption up to 96% for energy efficiency.
  • Manufacturer Warranty: 10-year limited warranty with 2-year coverage on electrical components for added confidence and protection.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent 8200 Series mortise locks deliver professional-grade reliability with patented design and construction rated for 16 million cycles in UL testing. The 10-year limited warranty with 2-year electrical component coverage demonstrates confidence in long-term performance. Engineered for demanding commercial applications where dependable security and maximum durability are essential.

Product Specs

Series:
8200 Series
Grade:
Grade 1
Keyed Function:
Non-Keyed
Product Group:
Mechanical Locks
Product Subgroup:
Bored Locksets
Subcategory:
Bored Locksets
Keyed:
Yes
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Communication/Exit
Product Type:
Mortise Locks
Duty Level:
Heavy Duty
Handle Type:
Lever
Product Attribute:
Mortise Locks
Electronic:
No
Product Function:
Communication/Exit
Product Category:
Mechanical Locks
Collection:
8200 Series
Department:
Door Hardware

Sargent 8213 LE1A 10BE – Frequently Asked Questions

1) What does the Communication/Exit function on the Sargent 8213 mortise lock actually do?
The 8213 is a non-keyed communication/exit lock: both levers stay free at all times, so the door latches shut but never locks. Use it where you need positive latching and free egress on both sides, such as corridor cross-doors, stairwell pass-throughs, and communicating doors between suites. If you need the outside lever to lock, this is the wrong function and you want a keyed 8200 function instead.
2) Will the Sargent 8213 fit my existing 1-3/4 inch commercial door prep?
Yes for a standard 1-3/4 inch door with a 2-3/4 inch backset mortise pocket, which is what the 8213 is built for. Escutcheon trim covers a taller area of the door face than sectional rose trim, so if you are replacing a rose-trim lock the escutcheon will hide the old holes rather than expose them. Sargent publishes a 7800/8200 template covering both sectional rose and escutcheon trims for marking the prep.
3) Do I have to order the Sargent 8213 mortise lock by hand?
No. The 8200 lock body is field reversible, so one part number covers left and right hand openings and you set the handing during install. That matters for a property manager stocking spares: one lock on the shelf works on any door in the building.
4) Will the 8213 latch into the strike that is already in my frame?
The 8213 uses a 3/4 inch latchbolt throw, which is the standard commercial mortise latch projection, so it will engage a correctly aligned ANSI mortise strike already in the frame. If the existing lock was a different backset or the frame prep is non-standard, plan on a new strike.
5) Is the Sargent 8213 approved for a fire rated door?
Yes. The 8200 Series is UL 10C positive pressure fire rated up to 3 hours and complies with NFPA 80. Because the communication/exit function latches on both sides with no locking, it also keeps egress free on a rated opening.
6) My door is thicker than 1-3/4 inches. Is the Sargent 8213 still the right lock?
No. The 8213 is specified at 1-3/4 inch door thickness. For thicker doors, the Hager 3800 Series covers 1-3/4 to 2-1/2 inches on its escutcheon passage and office functions, and Baldwin's 6301 and 6310 mortise bodies are listed for 1-3/4 inch and over on a 2-1/2 inch backset. Note the Baldwin backset differs, so the frame and strike prep changes with it.
7) Is a passage mortise lock a valid substitute for the Sargent 8213-ET?
They are close but not identical. The Sargent 8213-ET is a non-keyed Grade 1 communication/exit mortise lock, which frees the door for egress and communication use. A true passage lock has no locking at all: the Falcon MA101 is a Grade 1 heavy-duty mortise passage lock with field reversible operation and a fire rating, the Schlage PM010 is a Grade 1 non-keyed passage latch mortise lock for 1-3/4 inch doors, and the Hager 3810E is a passage mortise lock with escutcheon trim and a 2-3/4 inch backset for 1-3/4 to 2-1/2 inch doors. The 3810E is the nearest trim match if you want escutcheon plates rather than roses, since the 8213-ET is supplied with escutcheon trim in LE1, LS, LW1 and WT styles.
8) What is the closest equivalent to the Sargent 8213-ET if the opening needs a keyed storeroom mortise lock instead of a non-keyed communication/exit function?
The Sargent 8213-ET is a non-keyed Grade 1 mortise lock with a communication/exit function, so it will not secure an opening with a key from the outside. For a keyed storeroom opening, the Accentra 8805FL is a Grade 1 storeroom mortise lock from the 8800 Series with an Arcadia lever, and the Cal-Royal NM8080 is a Grade 1 storeroom mortise lockset for 1-3/4 inch doors with an interchangeable core option. Storeroom function keeps the outside lever locked at all times with key retraction, which is the opposite of the always-free egress behavior of the 8213.
9) What looks like a substitute for the Sargent 8213-ET but will not actually latch the door?
Watch out for dummy trim. The Schlage L0170 is a Grade 1 half dummy trim for mortise non-keyed lever locks, and the Emtek 3102 Memphis, 3104 Hamilton, 3106 Manhattan and 3019 Brisbane are all dummy-function mortise entrance locksets. The Falcon MESC600DT is a dummy escutcheon lever trim for M9900 Series exit devices, so its escutcheon look is close to the 8213-ET but it mounts to an exit device rather than operating a mortise lock body. The Sargent 8213-ET is a working non-keyed communication/exit mortise lock with a lever handle, so none of these dummy items will retract a latch.
10) What should I specify instead of the Sargent 8213-ET when the opening needs electrified access control?
The Sargent 8213-ET is a mechanical, non-electronic mortise lock. If the opening is going on an access control system, the BEST 45HW is a heavy duty wired electromechanical mortise lock with 12V/24V operation, the Command Access ML190 is a heavy-duty motorized storeroom mortise lock with field selectable EL/EU operation at 24VDC, and the Schlage L9092EU 03A is a heavy duty electric lock/unlock outside lever mortise lock with keyed outside and request-to-exit at 12/24VDC for 1-3/4 inch doors. For standalone credential control, the TownSteel FME-2000 is a Grade 1 heavy duty classroom mortise lockset with RFID.
11) What is the alternative to the Sargent 8213-ET for a behavioral health or ligature-resistant opening?
The Sargent 8213-ET uses a conventional lever with escutcheon trim in A, B, E, F, J, L, P and W lever styles, which is not a ligature-resistant profile. For those openings, the TownSteel MRX-L-01 is a Grade 1 heavy duty anti-ligature lever mortise lockset in passage function for 1-3/4 inch doors, the MRX-A-01 is the same passage function with satin stainless ligature-resistant arch trim, and the Marks USA 5PDN is a Grade 1 hospital passage mortise push/pull paddleset that is ligature resistant and ADA compliant in satin stainless steel.
12) Is a Sargent 8200 mortise lock tough enough for a high traffic school or hospital corridor?
It is a Grade 1 heavy duty lock certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1, and UL cycle testing was completed at 16 million cycles (Verification ID V584148). That is well past the typical Grade 1 threshold, which is why it shows up in schools, hospitals, and government buildings.
13) If the 8213 is non-keyed, why does the order form ask me about a cylinder and keying?
The cylinder and keying selections are there because the 8200 lock body accepts cylinder prep across the family. On a non-keyed communication/exit lock, choose LC (less cylinder) with keying set to None. If you are prepping for interchangeable core hardware elsewhere in the building, the 70 (small format IC, less core) and 60 (large format IC, less core) options are available, and keyed different, keyed alike, or a specific key code can be specified where a cylinder applies.
14) What lever and escutcheon styles do I choose from on the Sargent 8213-ET?
Eight lever designs (A, B, E, F, J, L, P and W) and four escutcheon plates (LE1, LS, LW1 and WT). Pick the combination that matches the other openings in the building, since escutcheon shape is the most visible difference between 8200 locks on a corridor.
15) Does this Sargent mortise lock work with our building master key system?
The 8200 lock body integrates with all Sargent key systems, including Degree, Signature, KESO and XC, so keyed functions in the series can be brought onto an existing Sargent masterkey system. The 8213 itself is the non-keyed communication/exit function, so it carries no key on its own.
16) Can I get this same Sargent 8200 lock body with an electrified or keypad version later?
The 8200 platform covers 56 functions, including electromechanical, security and monitoring options, with on-site function switching. Electromechanical versions run 12 to 24VDC using EcoFlex technology. The 8213-ET itself is a mechanical, non-electronic lock, so an electrified opening needs the corresponding 8200 electromechanical function ordered as such.
17) What is the difference between the 8213-ET and a classroom or storeroom mortise lock?
Function, not build. The 8213 never locks: both levers are always free for communication and exit. A classroom lock such as the Corbin Russwin ML2003 or a storeroom lock such as the Cal-Royal NM8080 keeps the outside lever locked and controls access with a key. All are Grade 1 mortise locks, so the decision is purely about whether that opening needs to be secured or only latched.
18) If the restroom or bedroom door needs privacy locking, what replaces the Sargent 8213-ET?
The Sargent 8213-ET is a non-keyed communication/exit mortise lock and does not provide an occupant privacy lock. For privacy openings, the Cal-Royal NM8440 is a Grade 1 privacy mortise lockset with a deadbolt for 1-3/4 inch doors, and the Hager 3840S is a Grade 1 privacy mortise lock with a 2-3/4 inch backset for 1-3/4 to 2 inch doors. Both match the 8213-ET's Grade 1 level while adding an inside locking means.
19) Is there a simpler non-keyed lock than the Sargent 8213-ET for a closet or hall door?
Yes. The Sargent 8213-ET is a heavy duty Grade 1 mortise lock, which requires a full mortise pocket in the door edge. If the door only needs free operation both sides and the door is not prepped for a mortise body, the Schlage PC10 is a Grade 1 non-keyed passage cylindrical lock with a rose for 1-3/4 inch doors, which uses a bored prep instead. For a mortise prep that is already cut, the Schlage PM010 Grade 1 passage latch mortise lock is the simpler non-keyed option.
20) How does the Sargent 8213-ET compare with the BEST 45H public entrance mortise lock body?
Both are heavy duty mortise locks. The Sargent 8213-ET is a Grade 1 non-keyed communication/exit lock supplied with escutcheon trim and a lever, in finishes from 03 bright brass through 32D satin stainless and BSP black suede powder coat. The BEST 45H is a heavy duty mortise lock body in public entrance function with field reversible operation, and being a lock body it is ordered with trim separately. Public entrance function keeps the outside lever operable until locked, which is a different operating behavior from the 8213 communication/exit arrangement.
21) For a residential or ornamental door, is the Sargent 8213-ET the right mortise lock?
Generally no. The Sargent 8213-ET is a commercial Grade 1 heavy duty mortise lock. For residential-style entry openings, the Baldwin 6301 is an entry/apartment mortise lock body with a 2-1/2 inch backset for doors 1-3/4 inch and over, offered knob by knob or as the 6301LS lever by lever, and the Baldwin 6310 is an entry/storeroom mortise lock body with a 2-1/2 inch backset for doors 1-3/8 inch and over. For ornamental iron doors, the Marks USA 21AC and 22AC are entrance double cylinder ornamental iron mortise locks with a round knob for 1 inch doors. Note the backset difference: those Baldwin bodies are 2-1/2 inch where the 8213-ET is 2-3/4 inch.
22) Can a keypad mortise lock replace the Sargent 8213-ET on a door with a 1-5/8 inch leaf?
The Sargent 8213-ET is built for 1-3/4 inch door thickness, so a thinner leaf needs a different product. The Alarm Lock DL2700CR Trilogy T2 and DL3500CR are Grade 1 electronic mortise locks in classroom function that cover a 1-5/8 to 1-7/8 inch door thickness range, and the DL4500 is a Grade 1 electronic mortise deadbolt over the same thickness range with 2,000 user codes. These are keypad locks rather than the mechanical non-keyed lever operation of the 8213-ET.
23) What is the difference between ordering the Sargent 8213-ET and a Hager 3850E office mortise lock?
Both are escutcheon-trim mortise locks with a 2-3/4 inch backset. The Sargent 8213-ET is a Grade 1 non-keyed communication/exit lock in the 8200 Series, built for 1-3/4 inch doors, with escutcheon choices LE1, LS, LW1 and WT. The Hager 3850E is a 3800 Series Grade 1 office mortise lock with lever and escutcheon, non-keyed, with a 2-3/4 inch backset covering 1-3/4 to 2-1/2 inch doors. The office function differs from communication/exit in how the outside lever is controlled, so confirm the door schedule before swapping one for the other.
24) Can I get the Sargent 8213 in a finish that matches our existing brass or stainless hardware?
Sixteen finishes are offered, spanning bright and satin brass (03, 04), bright and satin bronze (09, 10), oil rubbed and dark oxidized bronze (10B, 10BE, 10BL), dark statuary bronze (20D), bright and satin nickel (14, 15), bright and satin chrome (26, 26D), bright and satin stainless (32, 32D), plus black and white suede powder coat (BSP, WSP). Satin chrome 26D and satin stainless 32D are the usual commercial matches.
How fast can I get the Sargent 8213 LE1A 10BE delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the continental U.S. Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit, reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Sargent 8213 LE1A 10BE come with a warranty?
Absolutely. The Sargent 8213 LE1A 10BE is backed by a manufacturer’s warranty. For full warranty terms, check the product documentation or Contact Us.
How do I get technical support or installation help for the Sargent 8213 LE1A 10BE?
You can call, text, or email our expert support team for fast answers. We’re here to help with product selection, installation tips, and troubleshooting. Contact Us
Why buy the Sargent 8213 LE1A 10BE from ZenSupply?
ZenSupply makes it easy to get the commercial door hardware you need—fast shipping, expert support, and rewards on every order. Our team is always ready to help you choose the right product for your project.
!
