Sargent 8375 Fail-Safe Electri...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$3,398.00
$3,158.84
Sargent Sargent 8300 Series - (8375) Fail-Safe Key Retracts Latch Electrified Trim Narrow Stile Design Mortise Exit Device SGT-8375

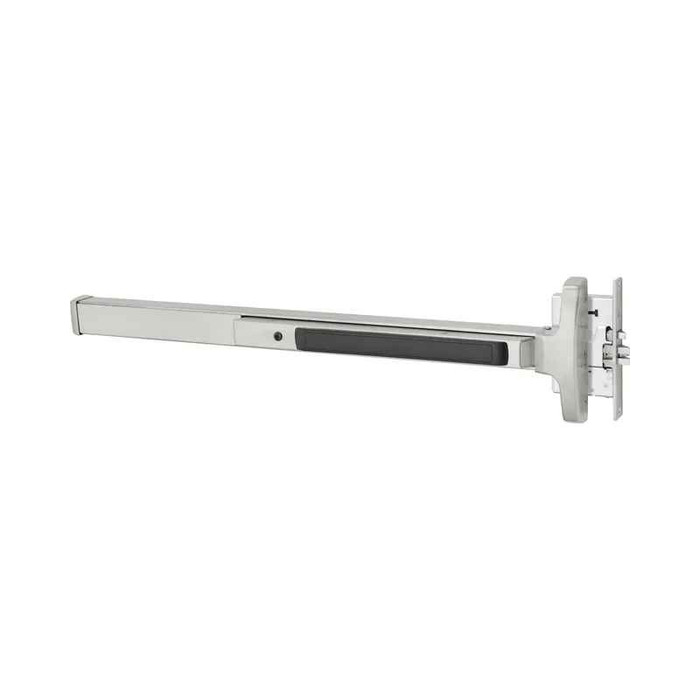

Sargent 8375 Fail-Safe Electrified Mortise Exit Device with Key Retracts Latch and Narrow Stile Design

(No reviews yet) Write a Review

Model: 8375E 10BE
From the 8300 Series Collection
$3,398.00
$3,158.84
Selected Finish is
Selected Trim Option is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$3,398.00
$3,158.84
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent 8375 Fail-Safe Electrified Mortise Exit Device with Key Retracts Latch and Narrow Stile Design

Professional Exit Device Solution for Commercial Applications

The Sargent 8375 fail-safe electrified mortise exit device delivers professional-grade security with key retracts latch functionality and narrow stile design compatibility. This heavy-duty exit device exceeds ANSI/BHMA Grade 1 requirements for cycle and strength testing, providing maintenance-free operation designed to last the lifetime of the building with electric latch retraction capability for enhanced access control integration.

Professional Features & Benefits

  • Heavy-Duty Construction: Exceeds ANSI/BHMA Grade 1 requirements for cycle and strength testing, ensuring long-term reliability in demanding commercial applications.
  • Fail-Safe Electric Operation: Key retracts latch functionality with electric latch retraction provides secure access control integration while maintaining emergency egress capability.
  • Narrow Stile Compatibility: Specifically designed for narrow stile door applications where space constraints require specialized exit device solutions.
  • Modular Design: Maintenance-free construction with modular components allows for easy service and configuration flexibility.
  • Lifetime Durability: Built to last the lifetime of the building with robust materials and engineering for continuous commercial use.
  • Versatile Configuration Options: Available with delayed egress, alarmed exit, and electric latch retraction options for unique application requirements.
  • Professional Grade Security: Provides unsurpassed security for any facility with proven commercial-grade performance standards.
  • ANSI/BHMA Grade 1 Certification: Exceeds industry standards for cycle and strength testing ensuring code compliance and reliability.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent 8300 Series exit devices deliver professional-grade reliability with heavy-duty construction that exceeds ANSI/BHMA Grade 1 requirements for cycle and strength testing. The modular design ensures maintenance-free operation built to last the lifetime of the building. Engineered for demanding commercial applications where dependable performance and unsurpassed security are essential.

Manufacturer Resources

SARGENT Full Line Catalog

Product Specs

Series:
8300 Series
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Mortise
Product Type:
Exit Devices - Mortise
Subcategory:
Mortise Exit Devices
Commercial/Residential:
Commercial
Stile Type:
Narrow Stile
Lock Function:
Electromechanical
Grade:
Grade 1
Model Series:
8300 Series
Product Model:
8375
Product Function:
Electromechanical
Product Category:
Exit Devices and Trim
Collection:
8300 Series
Department:
Door Hardware

Sargent 8375E 10BE – Frequently Asked Questions

1) What does fail-safe mean on the Sargent 8375 exit device, and what happens when power drops?
Fail-safe on the 8375 means the electrified trim unlocks when power is removed. Cut the power, whether by design or by an outage, and the outside lever gains access. If you need the opposite behavior, where the outside trim stays locked on power loss, a fail-safe device is the wrong choice for that opening. Egress from the inside is never affected: the push rail always retracts the mortise latch mechanically, powered or not.
2) Will a Sargent 8375 fit an aluminum storefront door with a narrow stile?
Yes. The 8375 is built as a narrow stile mortise exit device, which is what aluminum storefront and glass front entrances need. Wide stile devices, like the Von Duprin 9875 or the Corbin Russwin ED5600AL, will not land correctly on a narrow stile. If the opening is a wide stile hollow metal or wood door, pick a wide stile device instead.
3) Do I have to specify handing when ordering the Sargent 8375?
Yes, handing is a required selection and the device is not field reversible. You choose RHR (right hand reverse) or LHR (left hand reverse). Exit devices are always reverse bevel because the door swings out of the space, so stand outside the door: if the hinges are on your right it is RHR. Get this wrong and the device will not mount. If you want a device you can hand on site instead, the Von Duprin 5575 narrow stile crossbar mortise device is listed as field reversible.
4) Can I get the Sargent 8375 fire rated, and what changes if I do?
Fire rated is one of the two rating choices, the other being standard. The fire rated build comes less dogging, meaning there is no mechanical hold-down to keep the latch retracted, because a fire door has to positively latch at all times. If you need the push rail dogged down during business hours, you need the standard (non fire rated) version on a non fire rated opening.
5) Does the Sargent 8375 come with outside lever trim, or do I order that separately?
Trim is a selection on the order. You can take the device on its own (Exit Device Only) or add ET trim in one of eight lever designs: A, B, E, F, J, L, P and W. Since the 8375 is a key retracts latch function, the outside trim is where the cylinder and lever live, so exit only leaves you with no outside access at all. Choose the lever style to match the other openings in the building.
6) My door is a wide stile hollow metal door - is the Sargent 8375 the right device?
The Sargent 8375 is built for narrow stile doors. For wide stile openings the comparable set offers the Von Duprin 9875-3FT smooth case wide stile mortise device, Grade 1, non-handed, for 1-3/4 inch doors, the Von Duprin 8875-3FT wide stile crossbar mortise device, and the Corbin Russwin ED5600AL, a Grade 1 3 hour fire rated wide stile mortise device for 1-3/4 inch doors that accepts passage or classroom lever trim. Note the Von Duprin 9875 and 8875 are listed as not wood door compatible, while the Corbin Russwin ED5600AL and the Adams Rite 3300 Series are for wood and hollow metal doors.
7) What is the closest narrow stile mortise exit device to the Sargent 8375 from another brand?
For narrow stile openings, the two closest peers are the Adams Rite 8400 Series and the Von Duprin 5575. The Adams Rite 8400 is a life-safety narrow stile mortise exit device for aluminum doors, Grade 1, not fire rated. The Von Duprin 5575-3ft is a narrow stile crossbar mortise lock exit device, Grade 1, not fire rated, for 1-3/4 inch doors and field reversible. The Sargent 8375 differs from both in that it is an electromechanical device with fail-safe electric latch retraction and key retracts latch, and it is offered in a fire rated (less dogging) configuration as well as standard.
8) I do not need electric latch retraction - what is a simpler mortise exit device?
If the opening does not need access control integration, mechanical mortise exit devices in the comparable set include the BEST Precision 2301 Series, an exit only device with heavy wrought construction, the Falcon 25-M-EO, an exit only Grade 1 device for 1-3/4 inch wide stile doors, and the Detex 30 Series Advantex, a Grade 1 device only exit only unit. The Sargent 8375 is an electromechanical device with fail-safe key retracts latch, ordered in 12V or 24V, so it requires power and wiring the exit only devices do not.
9) What rail length do I order for a 36 inch or 42 inch door on the Sargent 8375?
Device lengths run 32, 36, 42 and 48 inches. Match the length to the door leaf width so the rail covers the correct proportion of the door, and note that the AL alarmed option carries a 36 inch minimum door width, so a 32 inch device on a narrow leaf rules the alarm out.
10) Is 12V or 24V right for the Sargent 8375 electrified exit device?
Both are offered, so the choice follows your access control power supply and the run length. Match whatever your controller or power supply puts out. Electrified latch retraction and the accessory switches draw through the same supply, so size it for the full device load, and remember the door needs a transfer, either an electric hinge or a door loop, to get power from the frame into the leaf.
11) Is the Sargent 8375 Grade 1, and what does that mean for a high traffic entrance?
Grade 1 under ANSI/BHMA, which is the heaviest commercial rating and the one written into most institutional and government specs. Grade 1 covers cycle and strength testing, so it suits school, hospital, and office main entrances that see constant use. The device is commercial rated, not a residential product.
12) What is the narrow stile alternative to the Sargent 8375 if I do not need an electrified device?
For a mechanical narrow stile mortise exit device, ZenSupply carries the Adams Rite 8400 Series, a Grade 1 life-safety narrow stile mortise device for aluminum doors, and the Von Duprin 5575 crossbar narrow stile mortise device, Grade 1 and field reversible for 1-3/4 inch doors. Neither carries a fire rating. Go to the 8375 when you need access control integration on the opening; the mechanical devices are simpler when the door just needs a keyed lever outside.
13) Why choose a mortise exit device like the Sargent 8375 over a rim or vertical rod device?
A mortise device puts the lock body inside the door edge and latches into the frame jamb, which gives a clean look and a strong single point of latching on a single door. A rim device surface mounts and is the simpler retrofit; surface vertical rod devices latch top and bottom and are what you use on a pair of doors without a center mullion. The 8375 in particular suits a narrow stile aluminum single door where you want electrified access control at the trim.
14) Is the Adams Rite 8300 Series the same as the Sargent 8300 Series?
No - the model numbers overlap but the products are different. The Sargent 8375 belongs to Sargent's 8300 Series of narrow stile electromechanical mortise exit devices. The Adams Rite 8300 Series is a life-safety mortise exit device for wood and hollow metal doors, Grade 1, wide stile, and not fire rated. When ordering, specify the brand along with the series so the two are not confused.
15) I want a push pad style device instead of the Sargent 8375 rail - what are my options?
The Von Duprin 9475/9575 Impact Series is a mortise lock exit device with a recessed push pad for wide stile doors, Grade 1, not fire rated. If a crossbar is preferred instead, the Von Duprin 5575-3ft is a narrow stile crossbar mortise device and the 8875-3FT is a wide stile crossbar mortise device, both Grade 1 for 1-3/4 inch doors. The Sargent 8375 is a narrow stile device and is ordered in 32, 36, 42, and 48 inch sizes with optional ET lever trim.
16) Do any of the comparable mortise exit devices include lever trim like the Sargent 8375?
The Sargent 8375 can be ordered with ET lever trim in A, B, E, F, J, L, P, or W lever styles, or as exit device only. Among the comparables, the Corbin Russwin ED5600AL is offered exit only or for use with classroom or passage lever trim that is not included, while the BEST Precision 2301, Falcon 25-M-EO, and Detex 30 Series are exit only devices.
17) The Sargent 8375 is handed - which mortise exit devices are non-handed or reversible?
The Sargent 8375 is ordered as RHR right hand reverse or LHR left hand reverse, so handing is specified up front. If field flexibility matters, the Von Duprin 5575-3ft is field reversible, and the Von Duprin 9875-3FT and 8875-3FT are non-handed. All three are Grade 1 for 1-3/4 inch doors, with the 5575 narrow stile and the 9875 and 8875 wide stile.
18) What finishes does the Sargent 8375 come in for matching existing storefront hardware?
Twelve finishes: 03 bright brass, 04 satin brass, 09 bright bronze, 10 satin bronze, 10B dark oxidized satin bronze oil rubbed, 10BE, 10BL clear coated, 20D dark statuary bronze lacquered, 32 bright stainless, 32D satin stainless, plus BSP black suede powder coat and WSP white suede powder coat. For a dark anodized aluminum storefront, BSP or one of the 10B variants usually reads closest; 32D satin stainless is the common match for clear anodized.
